8-bit parallel-in/serial-out shift register 74HC/HCT165
PIN DESCRIPTION
PIN NO. SYMBOL NAME AND FUNCTION
1
PL asynchronous parallel load input (active LOW)
7
Q
7
complementary output from the last stage
9Q
7
serial output from the last stage
2 CP clock input (LOW-to-HIGH edge-triggered)
8 GND ground (0 V)
10 D
s
serial data input
11, 12, 13, 14, 3, 4, 5, 6 D
0
to D
7
parallel data inputs
15
CE clock enable input (active LOW)
16 V
CC
positive supply voltage

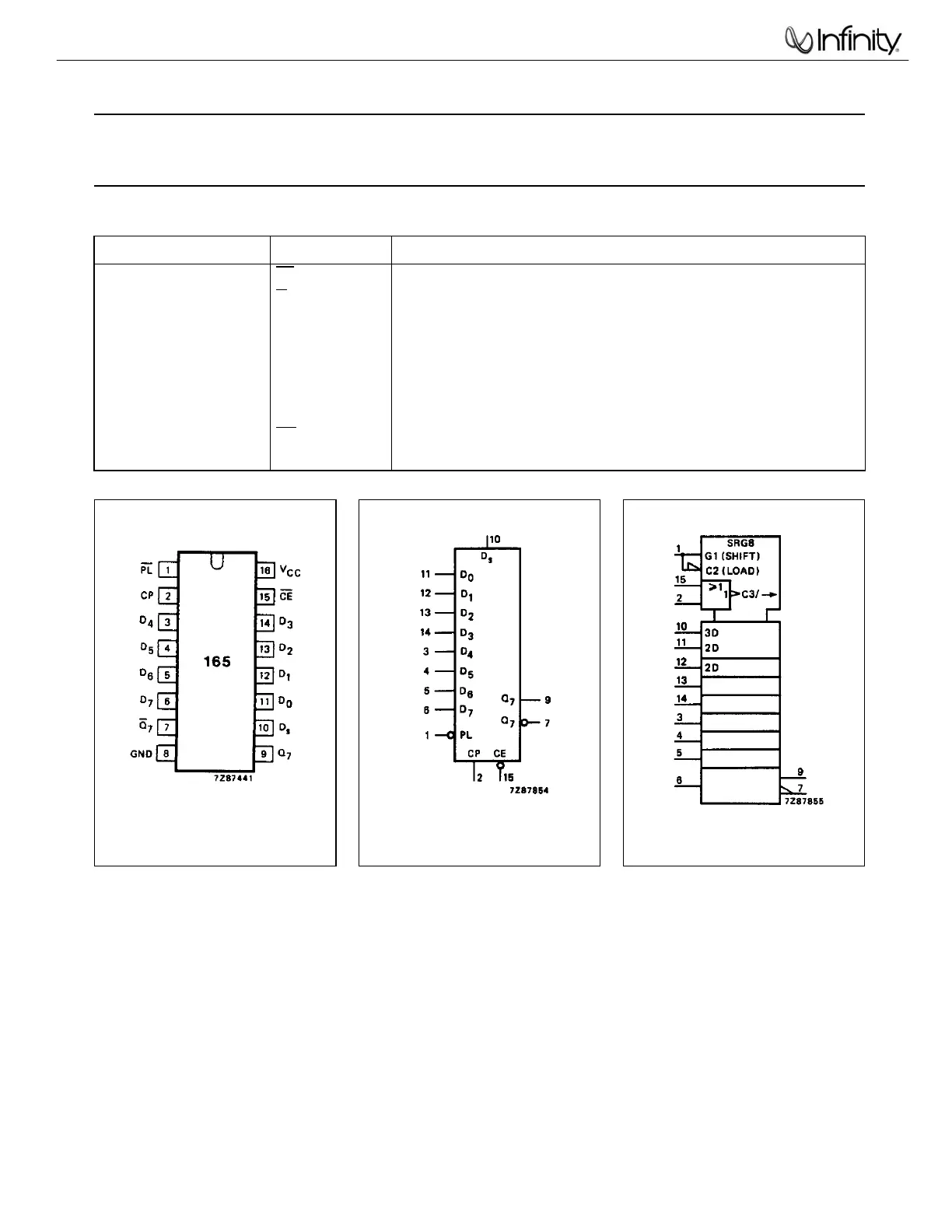

Fig.1 Pin configuration. Fig.2 Logic symbol. Fig.3 IEC logic symbol.
