Infinity Classia Series User Manual

INFINITY CLASSIA PSW310W (120V)

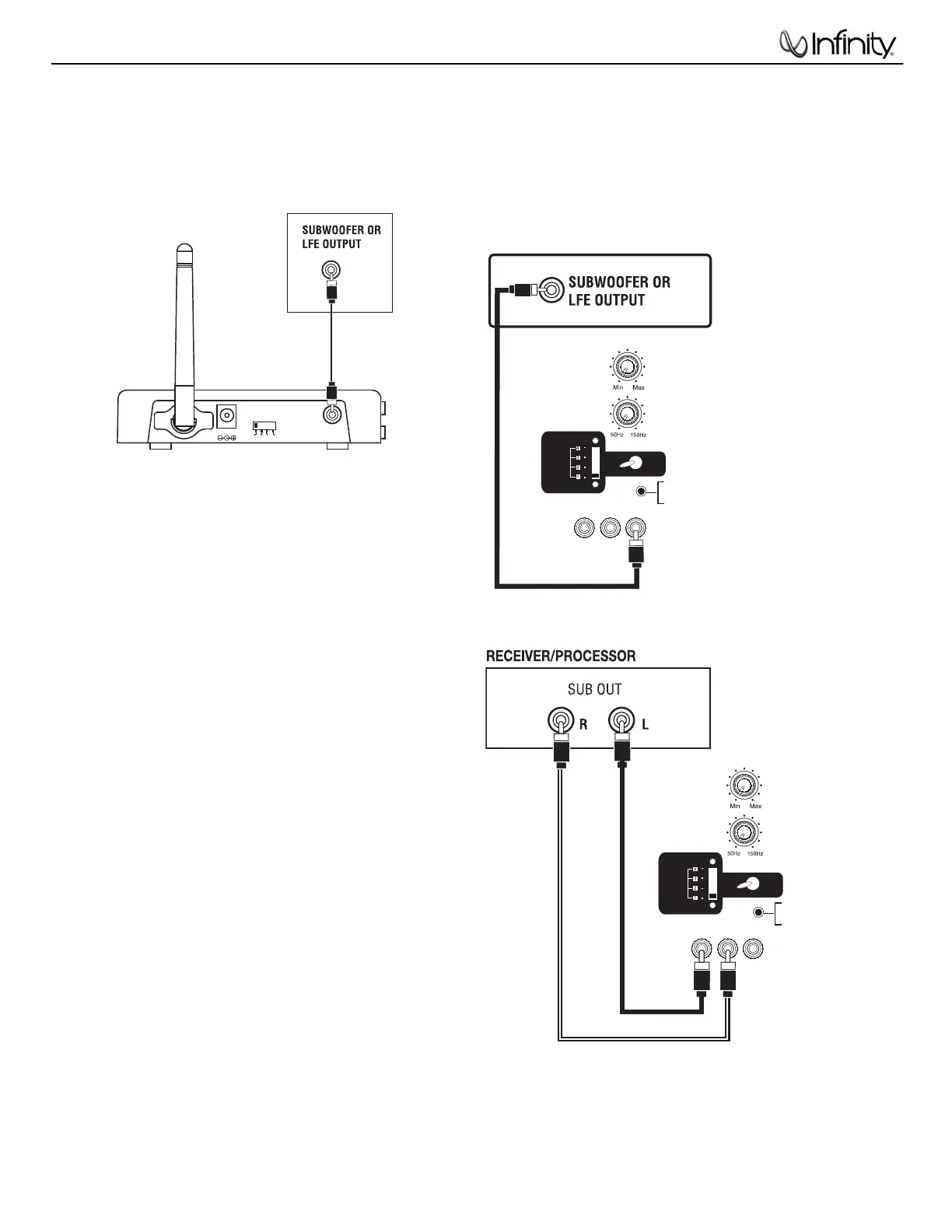

SYSTEM CONNECTIONS
Choose either Wireless or Wired connection,then follow the appropriate instructions.
WIRELESS
If your receiver/processor does not contain a Dolby Digital
or DTS processor but has subwoofer outputs:
Line InSub In
LFE
L
R
Crossover
[Hz]
Level
Wireless
ID Code
ffOnO
Low-Pass
Green: Sub On
Orange: Sub On and
Wireless Link Active
Red: Standby
Crossover
[Hz]
Level
Line InSub In
LFE
L
R
ffOnO
Low-Pass
Wireless
ID Code
ffOnO
Low-Pass
Green: Sub On
Orange: Sub On and
Wireless Link Active
Red: Standby
Connecting the Subwoofer for Wired Applications
If you have a Dolby
®
Digital or DTS
®
receiver/processor with
a low-frequency effects (LFE) or subwoofer output:
NOTE: If your receiver/processor has only one sub out,you
may use either the L or R input.
WIRED
Connecting the Subwoofer for Wireless Applications
Step 1.
Connect a subwoofer cable from the subwoofer or LFE output of
your receiver to the Sub In
H
on the transmitter.
Step 2.
Plug the transmitter module into the wall outlet,and connect the
included power supply and power cord to the transmitter
F
.Make
sure the Transmitter Antenna
E
is extended upward.
Step 3.
Set the ID code on the transmitter and subwoofer
(
G
and
§
) to
the same position,as described on page 4.When connected properly,
the LED
¢
on the rear of the subwoofer will be orange.
Step 4.
Set the Low-Pass Selector
∞
to the “Off”position.
NOTE: Some receivers have two subwoofer outputs.In that case,use
either one of the connectors.
Sub In
ID
CODE
DC18V
1234
7
PSW310W subwoofer Classia Series
