Infinity II - Subwoofer Connection Methods; LFE Output Connection; Stereo Output Connection

7
MODULUS II HOME THEATER SYSTEM

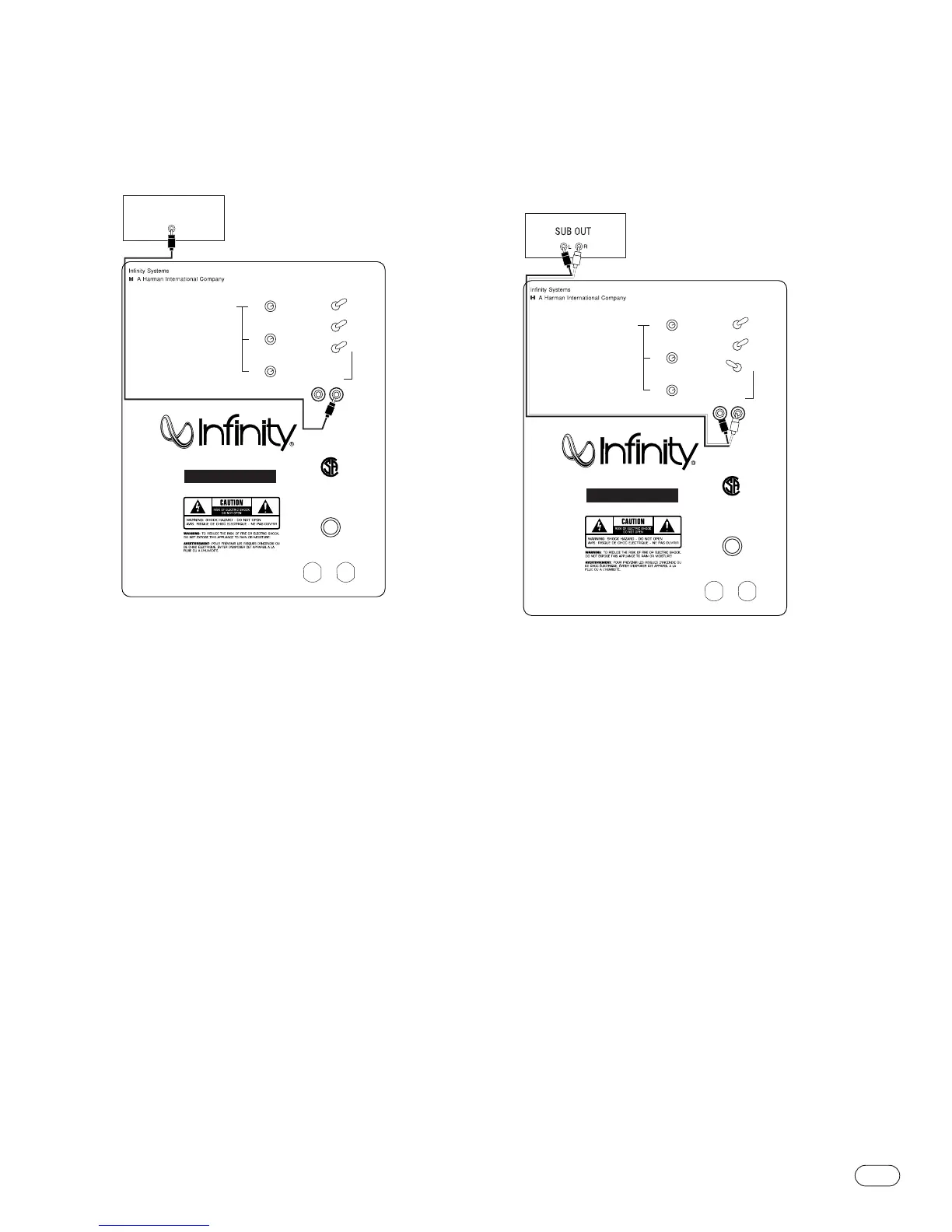

If your receiver/processor has subwoofer
outputs for the left and right channels:
• Set Low-Pass Filter
§
to “On.”
RECEIVER/PROCESSOR
LR
POWER
ON
OFF
ON
OFF
180°
0°
Freq.
Level INPUT
R.A.B.O.S.™
Controls
R.A.B.O.S.
PHASE
LOW PASS
LFE
Width
™¡
∞
§
¶
£
¢
•
FUSE
T5A L/250V
AC 120V~60Hz
75 Watts
Modulus MSW-II
This unit is designed to become quite warm,
during normal operation.
NRTL/C
CSA22-2 NO. 1
UL 1492
S UBWOOFER C ONNECTIONS
If you have a Dolby* Digital or DTS
®
receiver/processor
with a low-frequency-effects (LFE) output:
•Set Low-Pass Filter
§
to “Off”.
SUBWOOFER OR
LFE OUTPUT
LR
POWER
ON
OFF
ON
OFF
180°
0°
Freq.
Level INPUT
R.A.B.O.S.™
Controls
R.A.B.O.S.
PHASE
LOW PASS
LFE
Width
™¡
∞
§
¶
£
¢
•
FUSE
T5A L/250V
AC 120V~60Hz
75 Watts
Modulus MSW-II
This unit is designed to become quite warm,
during normal operation.
NRTL/C
CSA22-2 NO. 1
UL 1492
