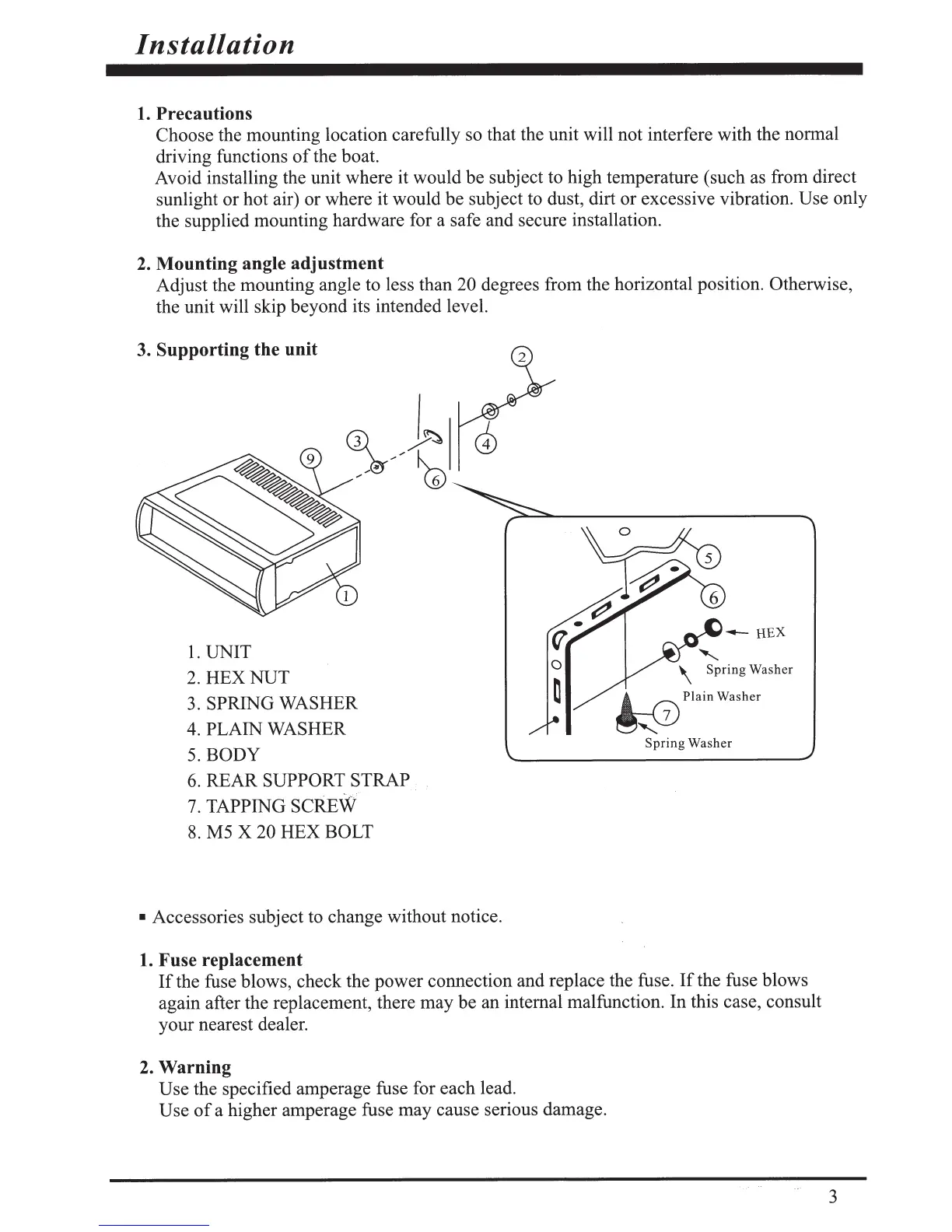

Installation
1.
Precautions
Choose the mounting location carefully so that the unit will not interfere with the normal
driving functions
of
the boat.
Avoid installing the unit where it would be subject to high temperature (such as from direct
sunlight
or
hot air) or where it would
be
subject to dust, dirt
or
excessive vibration.
Use
only
the supplied mounting hardware for a safe and secure installation.
2. Mounting angle adjustment
Adjust the mounting angle to less than
20
degrees from the horizontal position. Otherwise,
the unit will skip beyond its intended level.
3. Supporting the unit
1.
UNIT
2.HEXNUT
3.
SPRING WASHER
4. PLAIN WASHER
5.
BODY
6.
REAR
SUPPORT STRAP
7.
TAPPING
SCREW
8.
M5 X
20
HEX
BOLT
•
Accessories subject to change without notice.
1.
Fuse replacement
2
-.--HEX
\
Spring
Washer
~Plain
Washer
Spring
Washer
If
the fuse blows, check the
power
connection and replace the fuse.
If
the fuse blows
again after the replacement, there
may
be
an internal malfunction. In this case, consult
your
nearest dealer.
2. Warning
Use
the specified amperage fuse for each lead.
Use
of
a higher amperage fuse
may
cause serious damage.
3
