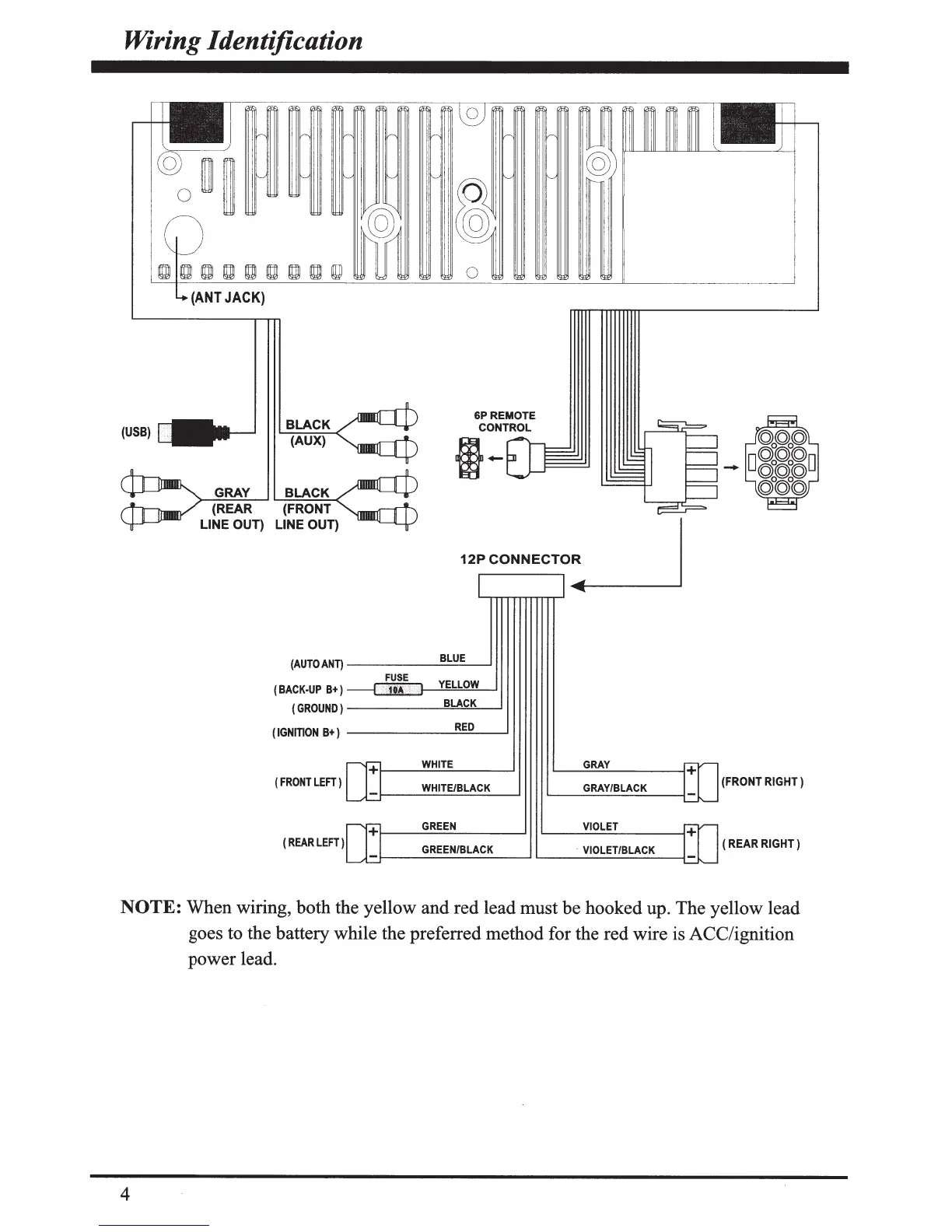

Wiring Identification
(USB)
BLACK
(AUX)
GRAY BLACK
(REAR (FRONT
6P REMOTE
CONTROL
1-
LINE OUT) LINE OUT)
12PCONNECTO~
(AUTOANT) _____ BL_U_E -----1
( BACK-UP B+) --diE]~..JY:§EL:J:!LO~WLJ
(GROUND) ------=B=LA=C.:..::...K _____,~
(IGNITION B+) _____ .;..:::RE=-
0
-----~
WHITE
( FRONT LEFT )
WHITE/BLACK
GREEN
(REAR LEFT)
GREEN/BLACK
GRAY
GRAY/BLACK
VIOLET
· VIOLET/BLACK
(FRONT RIGHT )
(
REAR RIGHT)
NOTE: When wiring, both the yellow and red lead must be hooked up. The yellow lead
goes to the battery while the preferred method for the red wire is ACC/ignition
power lead.
