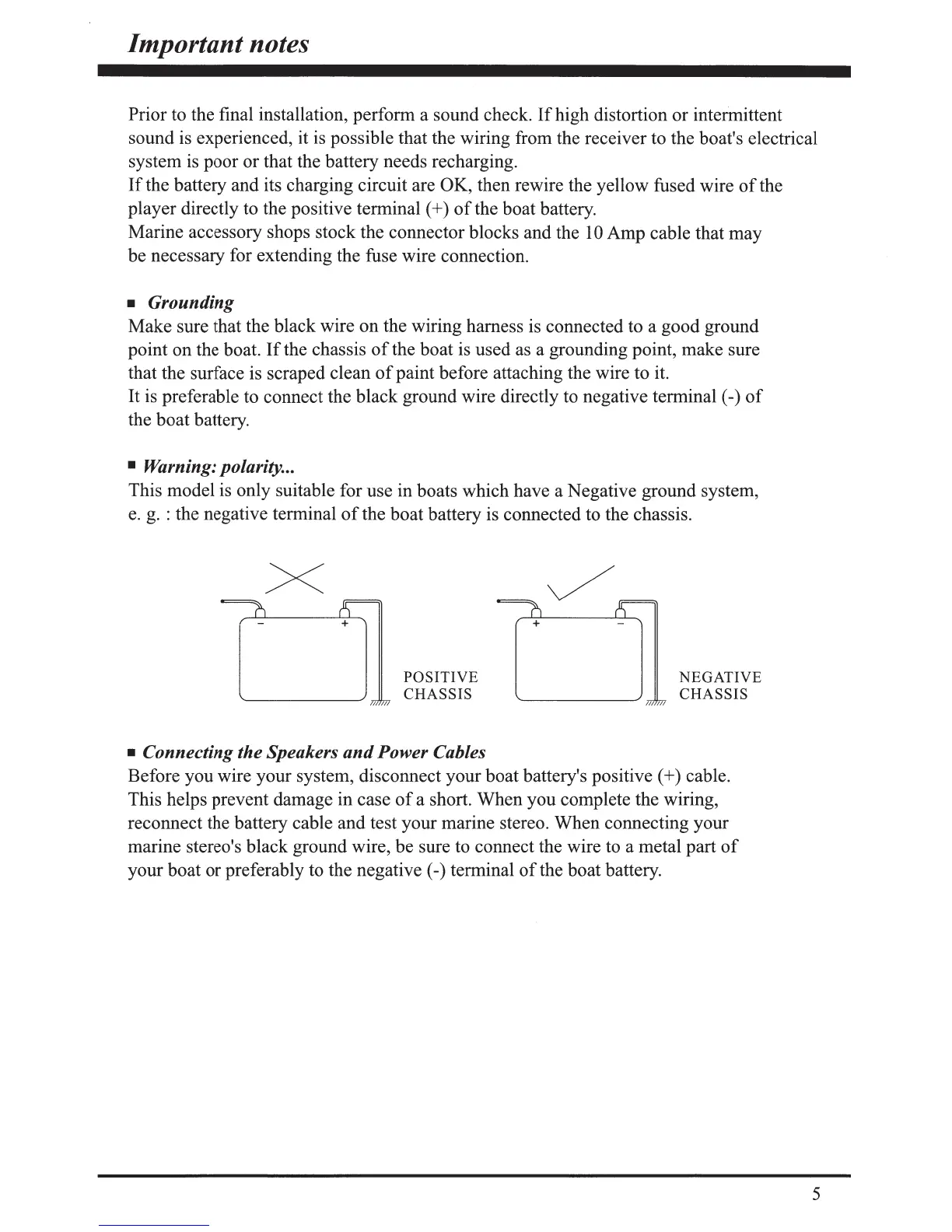

Important notes
Prior to the final installation, perform a sound check.
If
high distortion or intermittent
sound is experienced, it is possible that the wiring from the receiver to the boat's electrical
system is poor or that the battery needs recharging.
If
the battery and its charging circuit are OK, then rewire the yellow fused wire
of
the
player directly to the positive terminal ( +)
of
the boat battery.
Marine accessory shops stock the connector blocks and the
10
Amp cable that may
be necessary for extending the fuse wire connection.
• Grounding
Make sure that the black wire
on
the wiring harness is connected to a good ground
point on the boat.
If
the chassis
of
the boat is used as a grounding point, make sure
that the surface is scraped clean
of
paint before attaching the wire to it.
It
is preferable to connect the black ground wire directly to negative terminal (-)
of
the boat battery .
•
U7.
• l •
,,arntng:
po
artty ...
This model is only suitable for use in boats which have a Negative ground system,
e.
g. : the negative terminal
of
the boat battery is connected to the chassis.
><
I I
POSITIVE
CHASSIS
• Connecting the Speakers and Power Cables
!Ill
I
NEGATIVE
CHASSIS
Before you wire your system, disconnect your boat battery's positive ( +) cable.
This helps prevent damage in case
of
a short. When you complete the wiring,
reconnect the battery cable and test your marine stereo. When connecting your
marine stereo's black ground wire, be sure to connect the wire to a metal part
of
your boat or preferably to the negative (-) terminal
of
the boat battery.
5
