Infinity Interlude IL100s - Controls and Connections Overview; Rear Panel Controls and Inputs; Front Panel Controls

2
INTERLUDE IL100S,IL120S

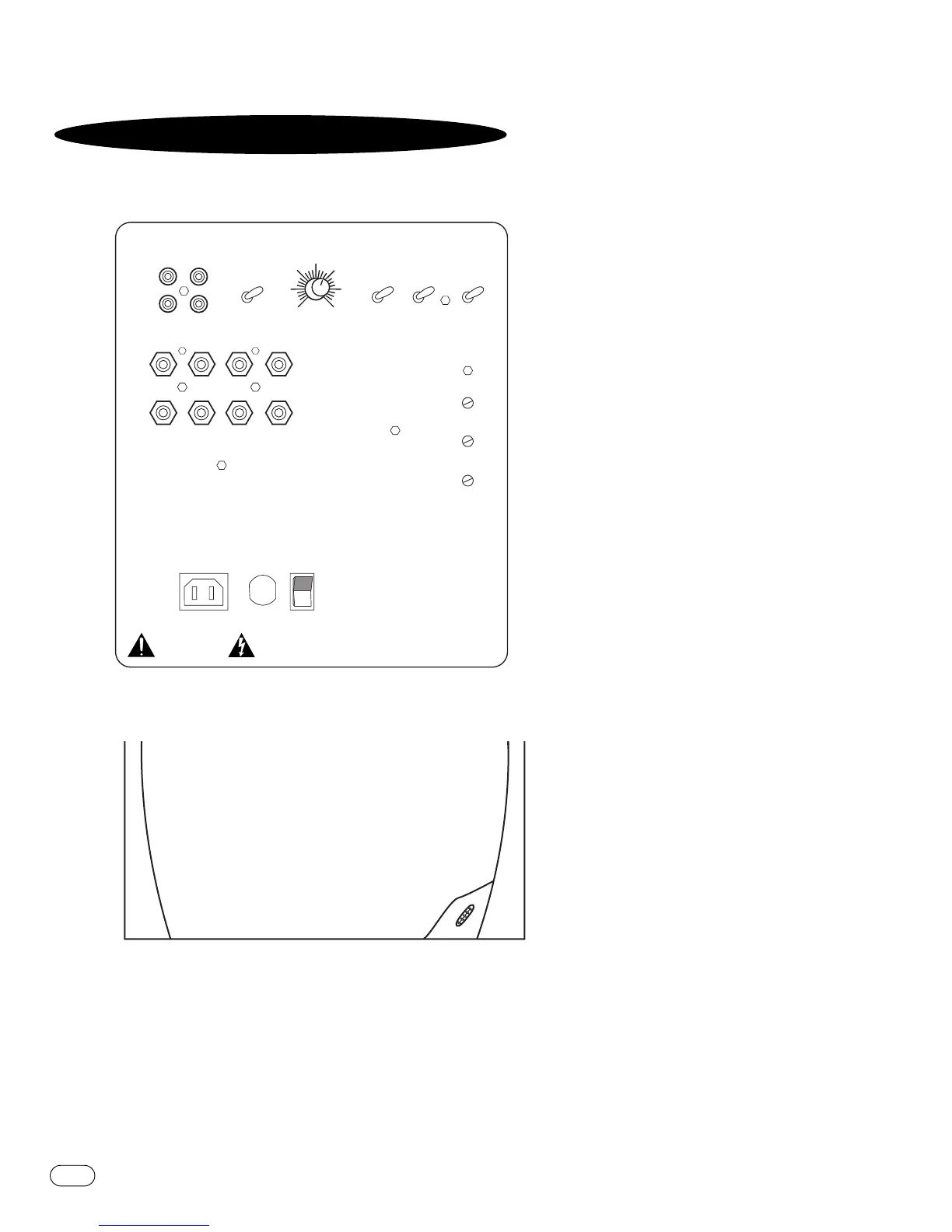

Rear Panel
CONTROLS AND CONNECTIONS
+
+
+
+
––
––
L
In Out
In Out
POWER3A 250V
Caution: For continued protection against risk of fire,
replace only with same type fuse and rating.
Attention: Utiliser un fusible de rechange
de meme type et calibre.
3A 120VAC 60Hz
Off
On
Right
Left
Input
Select
Low-Pass
Filter
Bass
Optimization
System
Phase
Low-Pass Freq. Adjust
80Hz
R
L
R
Speaker
Line
WARNING: SHOCK HAZARD • DO NOT OPEN
NO USER SERVICEABLE PARTS INSIDE
AVIS: RISQUE DE CHOC ELECTRONIQUE
NE PAS OUVRIR
ANSI/UL-1492
LR106476
On
50Hz 150Hz
Off
On
Off
Freq.
Level
Width
0
o
180
o
J
K
L
1 2
3 4
5
6
7
8
9
Line Level
SPEAKER LEVEL
1
Line-Level Inputs
2
Line-Level Outputs
3
Input Selector
4
Low-Pass Frequency Adjustment
5
Low-Pass Filter Selector
6
Phase Switch
7
AC Cord Input
8
Power Switch
Bass Optimization Controls
9
Bass Optimization System Selector
J
Center-Frequency Adjustment
K
Bass Optimization System Level
L
Bandwidth Adjustment
M
Subwoofer-Level Control
Front Panel
M
