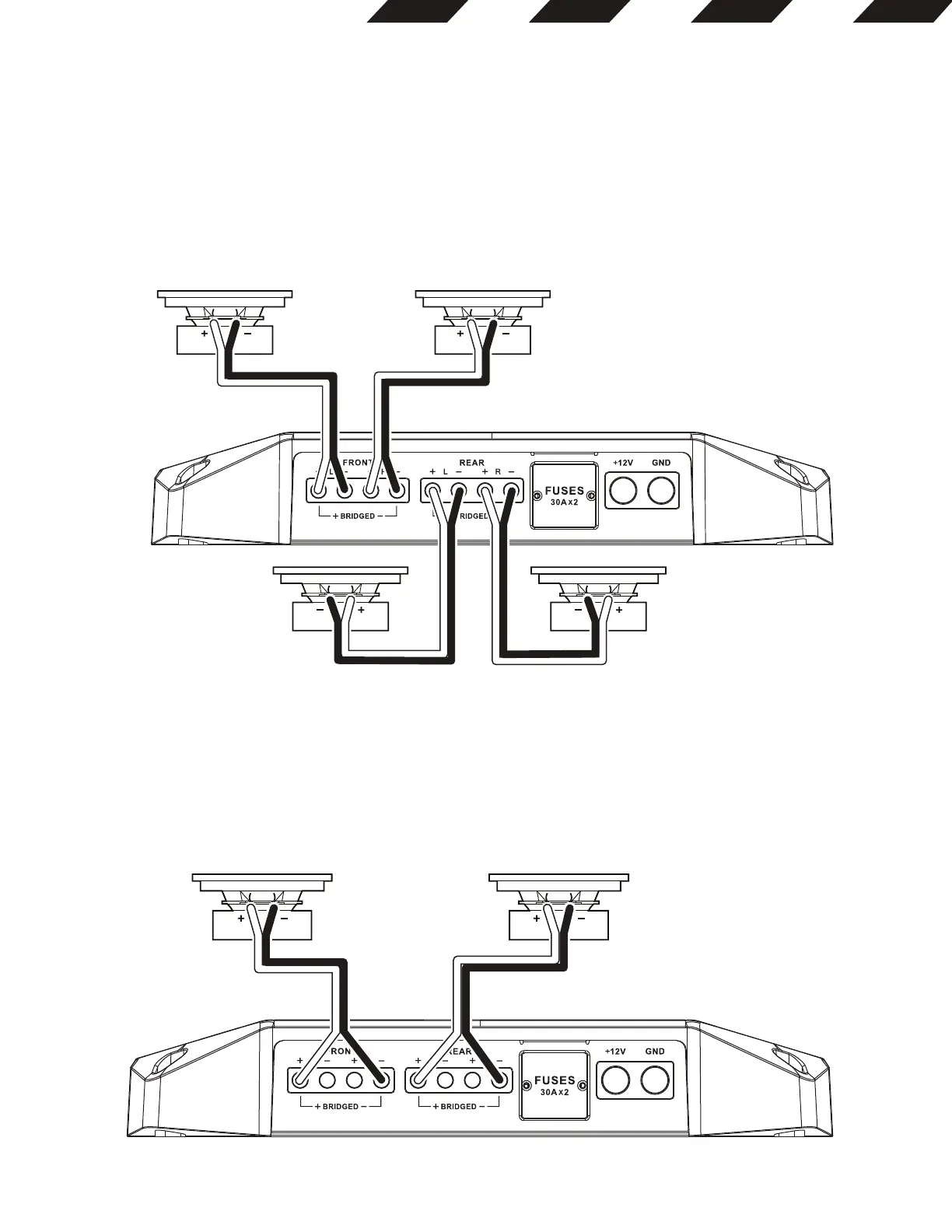

• The K4 features Front L+, L-, R+, and R- terminals, and Rear L+, L-, R+, and R- terminals.
• For 4-channel operation connect the front left speaker to the Front L+ and L- terminals, and front right speaker to the Front R+ and
R- terminals. Connect the rear left speaker to the Rear L+ and L- terminals, and rear right speaker to the Rear R+ and R- terminals.
For 3-channel operation connect the stereo speakers to the Front terminals as described above. Connect the single speaker’s + lead
to the Rear L+ terminal, and the - lead to the Rear R- terminal.
• For 2-channel (bridged) operation connect one speaker’s + lead to the Front L+ terminal, and the - lead to the Front R- terminal.
Connect the other speaker’s + lead to the Rear L+ terminal, and the - lead to the Rear R- terminal.
Front Left
Speaker
Rear Left
Speaker
Rear Right
Speaker
Front Right
Speaker
Left
Speaker
Right
Speaker
