Infinity KAPPA K2 - Speaker Output Connectors

3

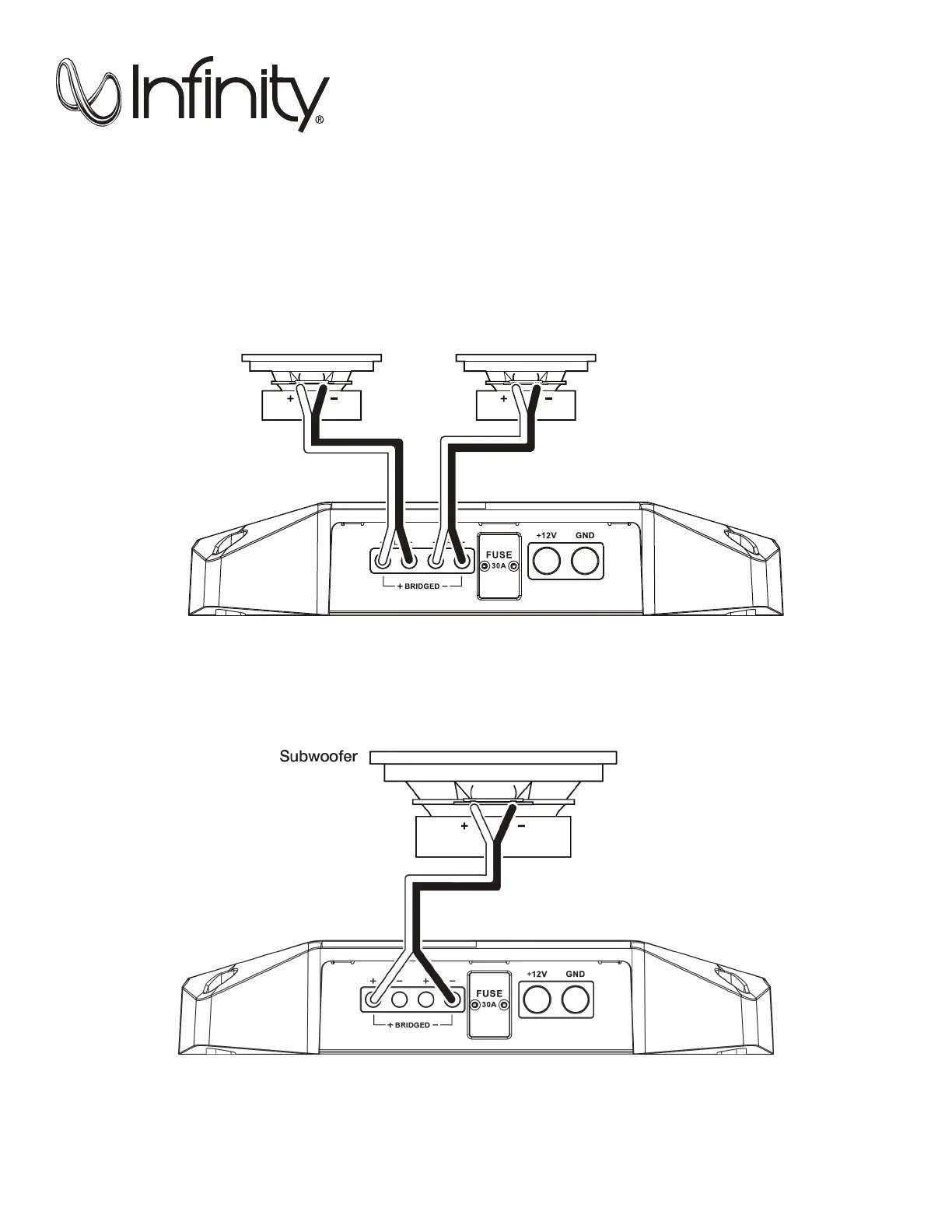

1. SPEAKER OUTPUT CONNECTORS:
Connect speakers to terminals observing proper polarity: connect each speaker’s positive (+) lead to the appropriate positive (+) terminal,
and negative (-) lead to the appropriate negative (-) terminal.
• The K2 features L+, L-, R+, and R- terminals
• For 2-channel operation connect the left speaker to the L+ and L- terminals, and right speaker to the Front R+ and R- terminals.
• For mono (bridged) operation connect the speaker’s positive (+) lead to the L+ terminal, and the negative (-) lead to the R- terminal.
Left
Speaker
Right
Speaker
