MOUNTING THE
SUBWOOFER
The 100,9w and 120,9w subwoofers can be
mounted from the outside of the enclosure
or from the inside of the enclosure, Which-
ever way you mount the subwoofer, use the
included foam mounting gasket to ensure a
leak-free seal between the subwoofer
frame and the enclosure,
CONNECTING THE
SUBWOOFER

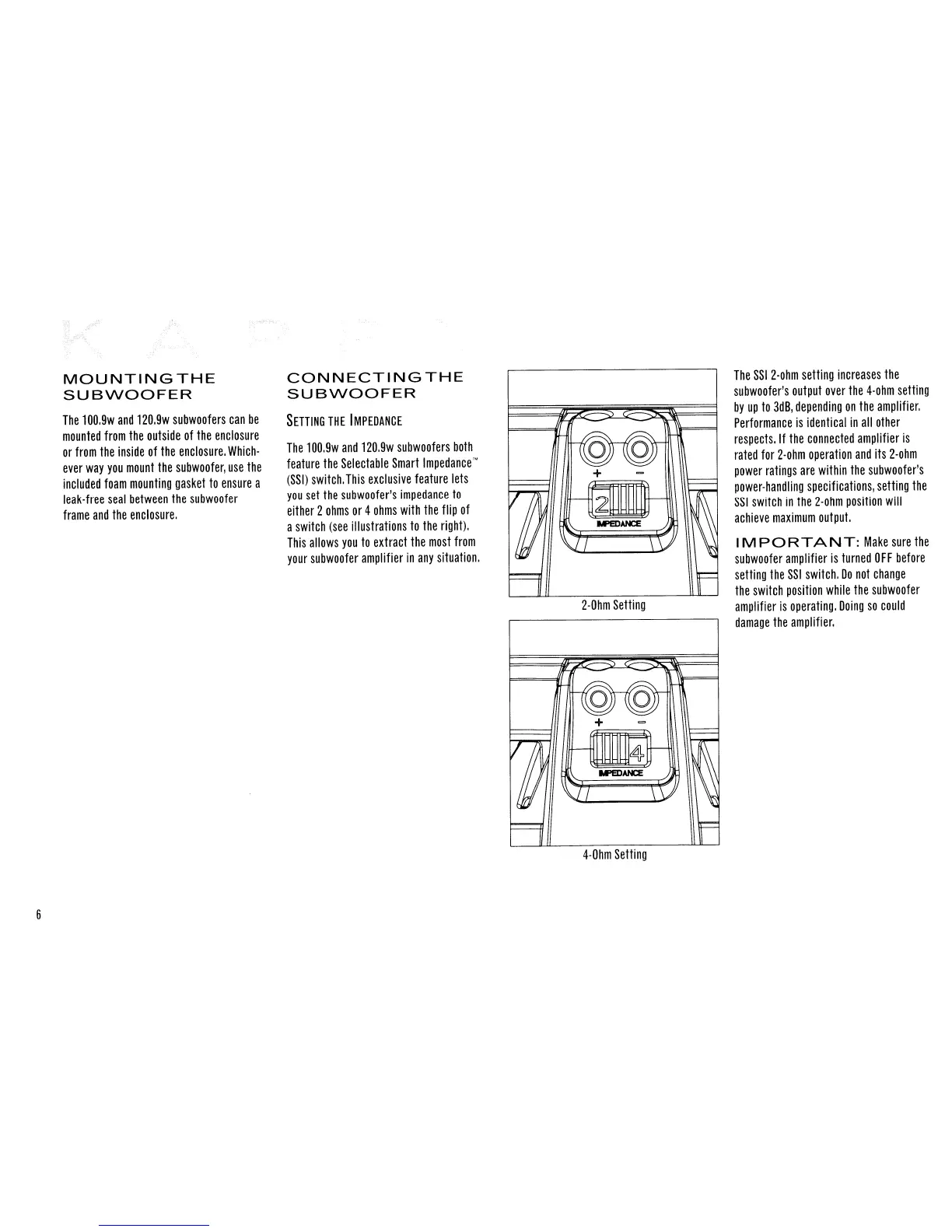

SETTING THE IMPEDANCE
The 100,9w and 120,9w subwoofers both
feature the Selectable Smart Impedance'·
(SSI) switch, This exclusive feature lets
you set the subwoofer's impedance to
either 2 ohms or 4 ohms with the flip of
a switch (see illustrations to the right),
This allows you to extract the most from
your subwoofer amplifier in any situation,
2-0hm Setting
4-0hm Setting
The SSI 2-ohm setting increases the
subwoofer's output over the 4-ohm setting
by up to 3dB, depending on the amplifier,
Performance is identical in all other
respects, If the connected amplifier is
rated for 2-ohm operation and its 2-ohm
power ratings are within the subwoofer's
power-handling specifications, setting the
SSI switch in the 2-ohm position will
achieve maximum output,
IMPORTANT: Make sure the
subwoofer amplifier is turned OFF before
setting the SSI switch, Do not change
the switch position while the subwoofer
amplifier is operating. Doing so could
damage the amplifier,
