Ram Removal
The ram will need to be oiled on a regular base. Use the following steps to do so:
1. Remove the rear frame screw.
2. Remove the bolt by pulling up and back on the bolt pin.
3. Use a small Allen wrench and push the ram housing back through the slot under the bolt.
4. Simply separate Ram (heavy Stainless Steel part) from Ram Housing
(Black Aluminum part)
5. Clean and oil lightly...DO NOT use grease!
While reassembling, make sure that the ram housing is oriented correctly with the holes facing the bottom of the body.
Push the Ram housing all the way in while tightening rear frame screw.

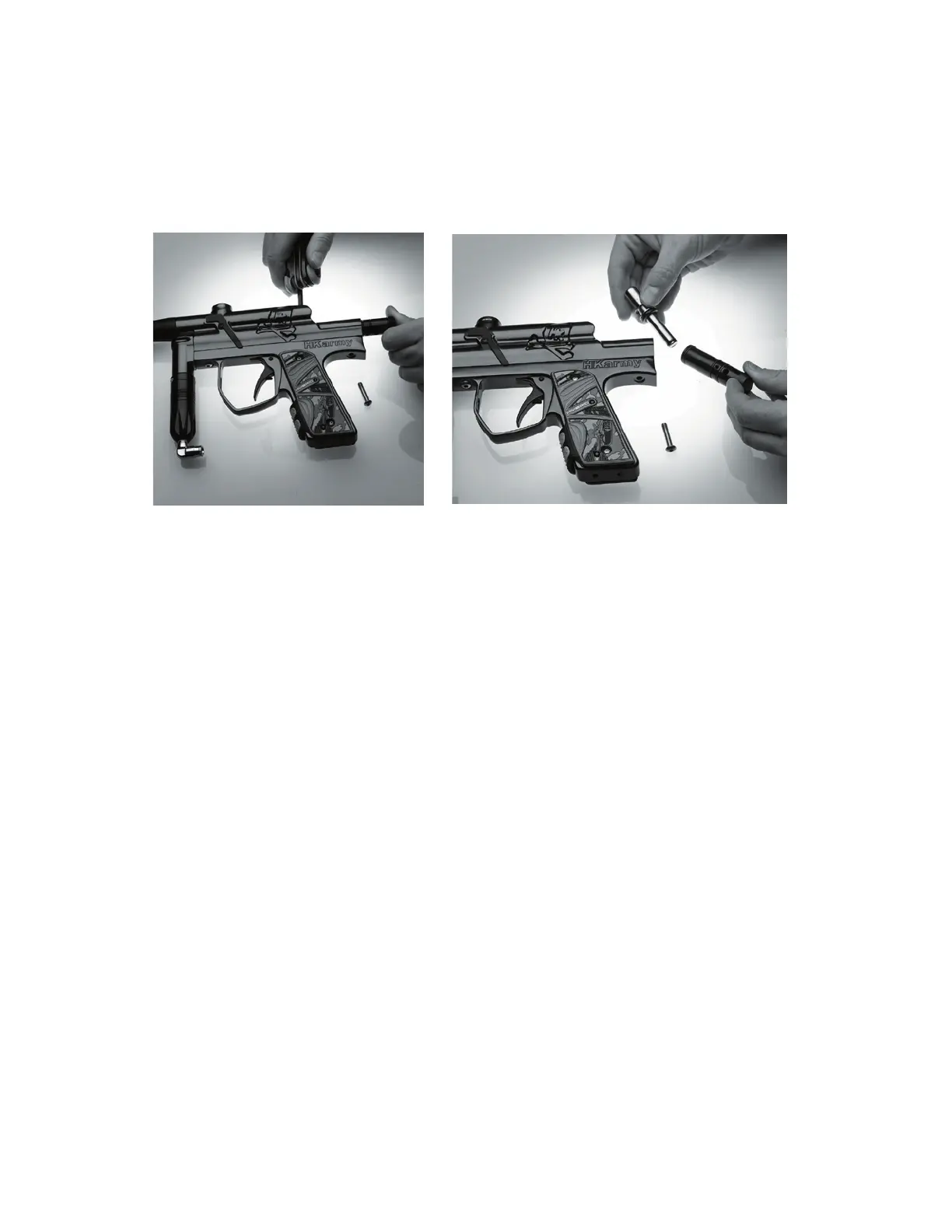

Step 3
Step 4
