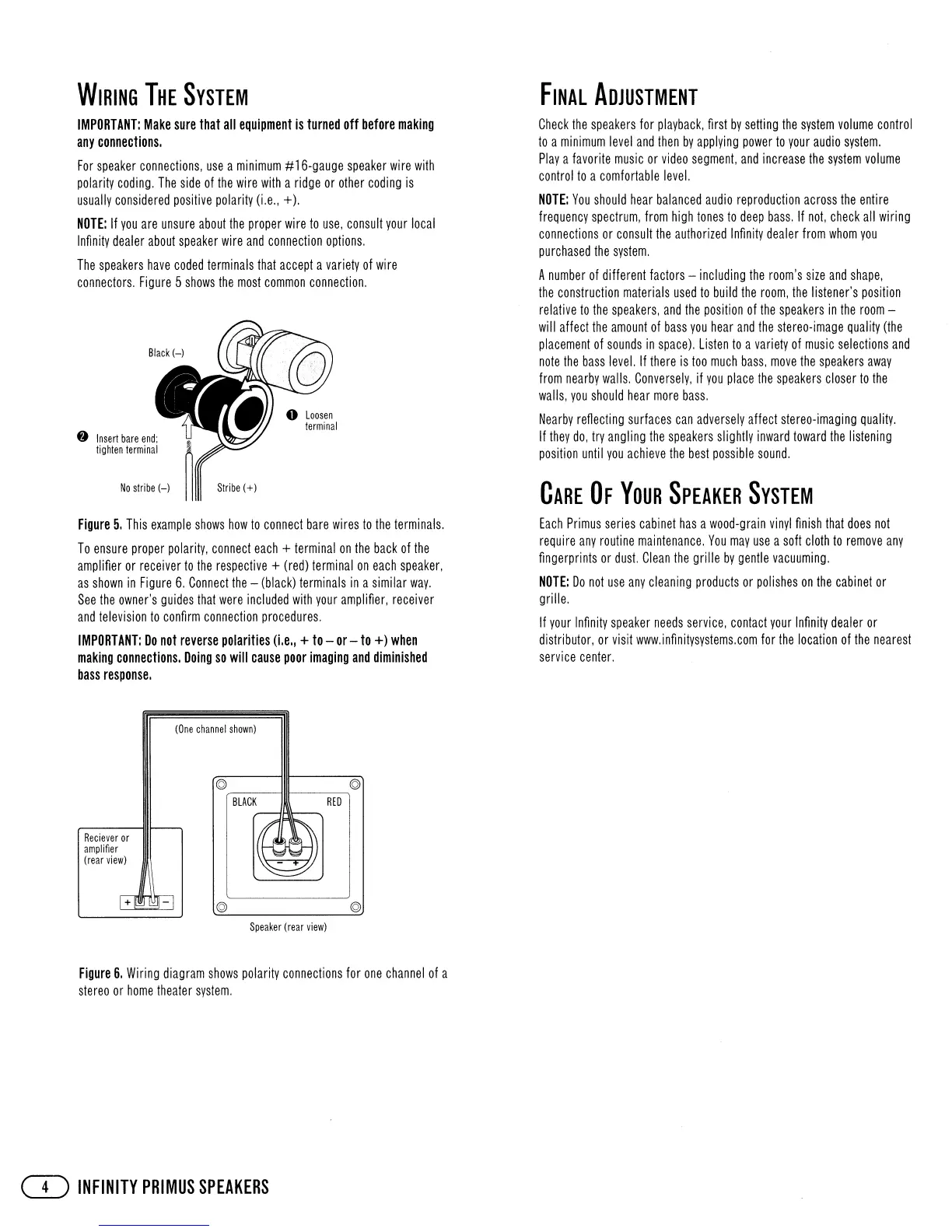

WIRING THE SYSTEM
FINAL ADJUSTMENT
IMPORTANT: Make sure that all equipment is turned off before making
any connections.
For speaker connections, use a minimum # 16-gauge speaker wire with
polarity coding. The side of the wire with a ridge or other coding is
usually considered positive polarity (i.e., +).
NOTE: If you are unsure about the proper wire to use, consult your local
Infinity dealer about speaker wire and connection options.
The speakers have coded terminals that accept a variety of wire
connectors. Figure 5 shows the most common connection.
f} Insert bare end:
lighten terminal
No stribe H
Stribe (+)
Check the speakers for playback. first by setting the system volume control
to a minimum level and then by applying power to your audio system.
Playa favorite music or video segment, and increase the system volume
control to a comfortable level.
NOTE: You should hear balanced audio reproduction across the entire
frequency spectrum, from high tones to deep bass. If not, check all wiring
connections or consult the authorized Infinity dealer from whom you
purchased the system.
A number of different factors - including the room's size and shape,
the construction materials used to build the room, the listener's position
relative to the speakers, and the position of the speakers in the room-
will affect the amount of bass you hear and the stereo-image quality (the
placement of sounds in space). Listen to a variety of music selections and
note the bass level. If there is too much bass, move the speakers away
from nearby walls. Conversely, if you place the speakers closer to the
walls, you should hear more bass.
Nearby reflecting surfaces can adversely affect stereo-imaging quality.
If they do, try angling the speakers slightly inward toward the listening
position until you achieve the best possible sound.
CARE OF YOUR SPEAKER SYSTEM
Figure 5. This example shows how to connect bare wires to the terminals.
To ensure proper polarity, connect each + terminal on the back of the
amplifier or receiver to the respective + (red) terminal on each speaker,
as shown in Figure 6. Connect the - (black) terminals in a similar way.
See the owner's guides that were included with your amplifier, receiver
and television to confirm connection procedures.
IMPORTANT: Do not reverse polarities (i.e., + to - or - to +) when
making connections. Doing so will cause poor imaging and diminished
bass response.
(One channel shown)
@ @
BLACK RED
Each Primus series cabinet has a wood-grain vinyl finish that does not
require any routine maintenance. You may use a soft cloth to remove any
fingerprints or dust. Clean the grille by gentle vacuuming.
NOTE: Do not use any cleaning products or polishes on the cabinet or
grille.
If your Infinity speaker needs service, contact your Infinity dealer or
distributor, or visit www.infinitysystems.com for the location of the nearest
service center.
Reciever or
amplifier
(rear view)
Speaker (rear view)
Figure 6. Wiring diagram shows polarity connections for one channel of a
stereo or home theater system.
