If your receiver/processor does
not have subwoofer outputs for
the left and right channels or an
LFE output,connect speaker
wire from your receiver/amplifier
to your speakers and subwoofer
using two sets of speaker wire:
PS-8
If you have a Dolby* Digital or DTS
®
receiver/processor with a
low-frequency-effects (LFE) or subwoofer output:
SUBWOOFER OR
LFE OUTPUT
+ +
OUT IN
If your receiver/processor does not contain a Dolby Digital or DTS
processor but has a subwoofer output:
NOTE:
Some receivers have one subwoofer output.
In that case,it is recommended that you use a Y connector
(not included) to maximize performance.
+ +
OUT IN
RECEIVER/PROCESSOR
L R

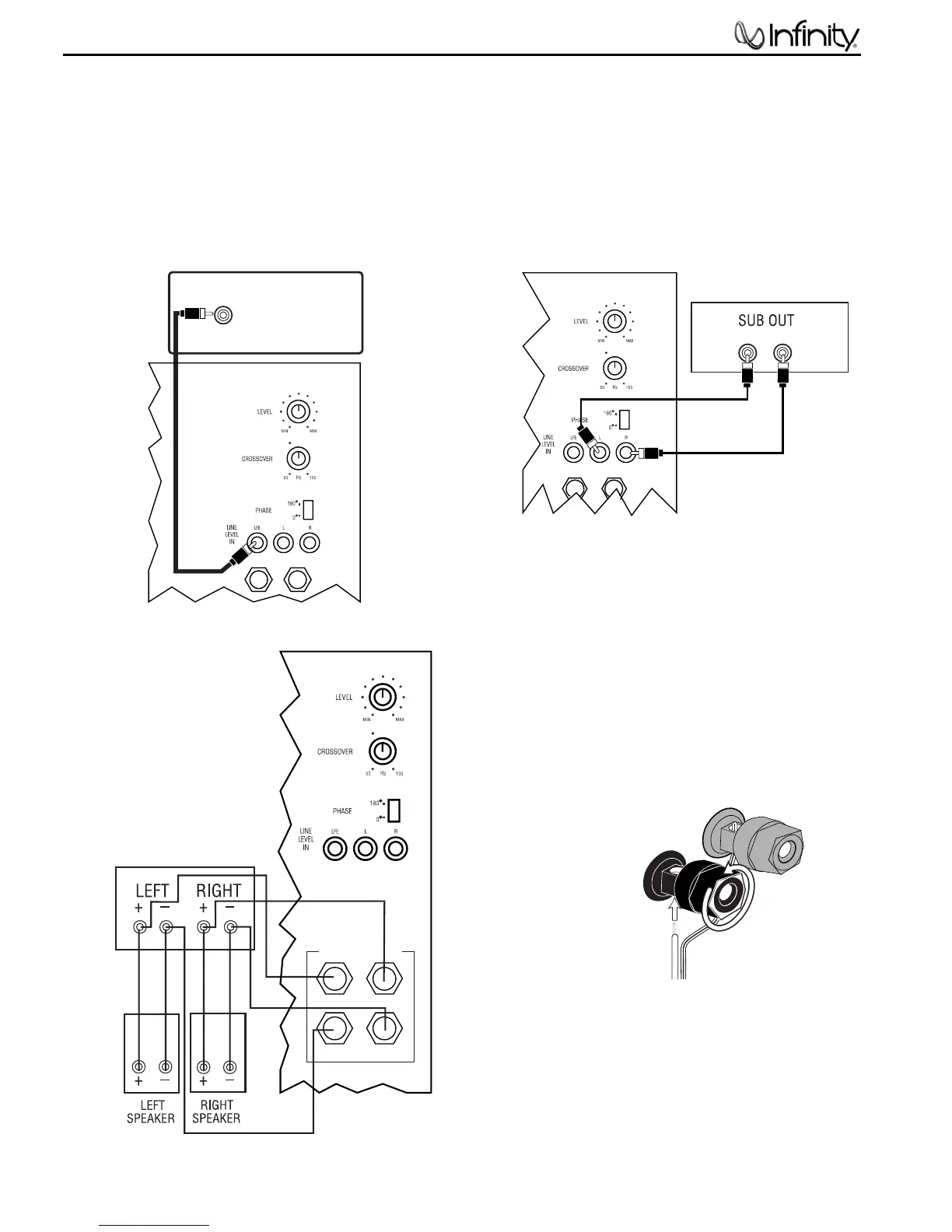

SUBWOOFER CONNECTIONS
CHOOSE THE SUBWOOFER CONNECTION THAT IS MOST SUITABLE FOR YOUR RECEIVER/PROCESSOR
LOOSEN TERMINALS
INSERT BARE END;
TIGHTEN TERMINALS
1.
2.
BLACK =
–
NO STRIPE = – STRIPE = +
RED = +
This figure shows how to connect bare wires
to the terminals.
RECEIVER/AMPLIFIER
Front Speaker Output
+
–
HIGH LEVEL INPUT
L R
PS-8
4
