RS-8 – Owner’s Manual
WIRING THE SYSTEM (Continued)

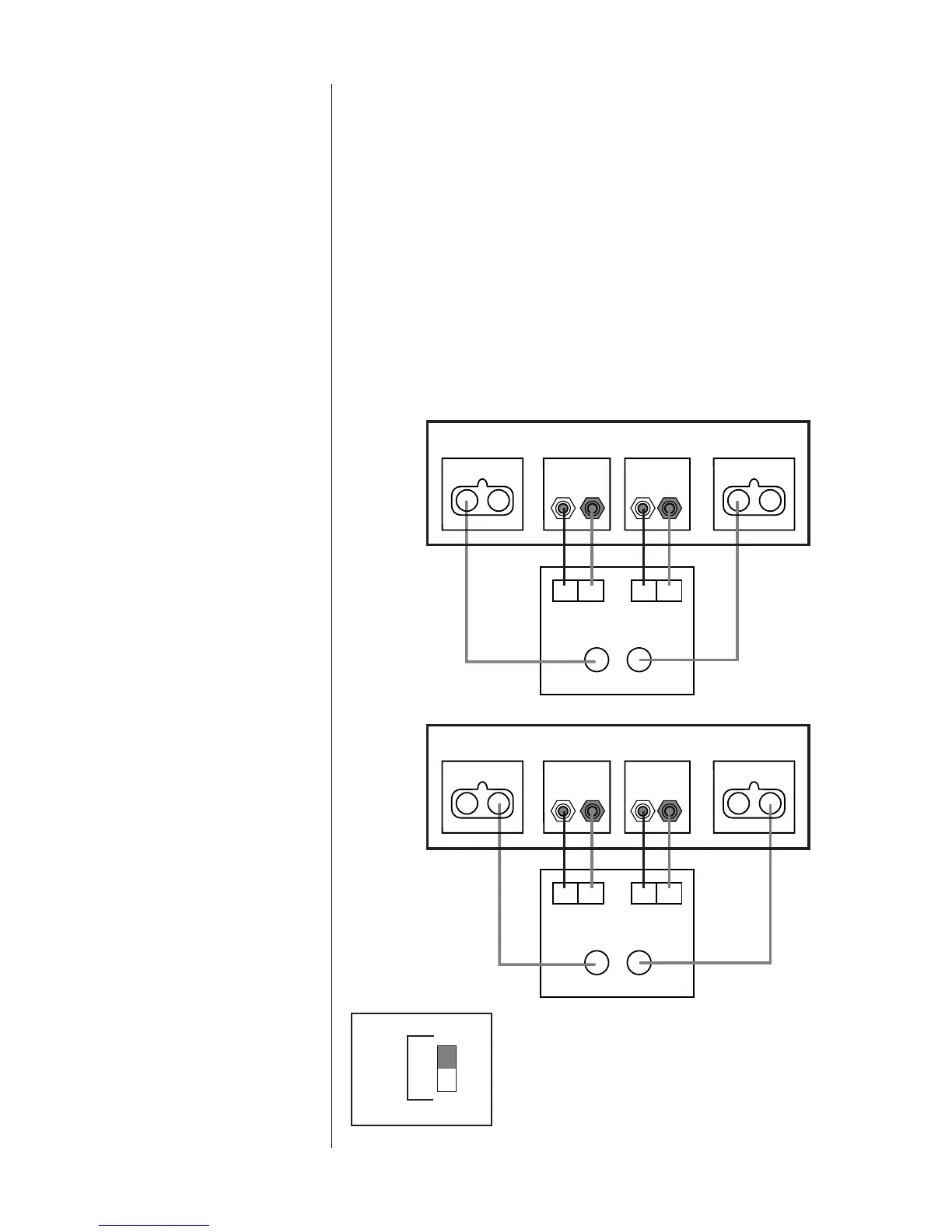

If your receiver has a subwoofer output:
The RS-8 incorporates two different types of line-level inputs that allow you to
optimize the loudspeakers’ performance in your system.
If your receiver/processor’s subwoofer output is already low-passed filtered, meaning the high
frequencies have been removed by the receiver, use the subwoofer input labeled Direct.
If your receiver/processor’s subwoofer output is full range, meaning the high frequencies have
not been removed by the receiver, use the subwoofer input labeled Normal.
If you are unsure as to which type of subwoofer output your receiver/processor contains, please
consult your receiver/processor owner’s manual or contact the manufacturer.
Do not hook up both inputs. Doing so will adversely affect the performance of the system.
Set Input Select switch to “Line.”
NOTE: Some receivers/amplifiers have a single (mono) subwoofer out-
put. In this case, it is necessary to use a “Y”-connector (not included) to
properly hook up the speakers using this method.
– +– +
– + – +
Speaker Outputs
Subwoofer Output
RIGHT LEFT
RIGHT LEFT
RIGHT LEFT
Normal Direct
SUBWOOFER SECTION
LINE INPUTS
SUBWOOFER SECTION
LINE INPUTS
SUBWOOFER SECTION
LINE INPUTS
SUBWOOFER SECTION
LINE INPUTS
Normal Direct
– +– +
– + – +
Speaker Outputs
Subwoofer Output
RIGHT LEFT
RIGHT LEFT
RIGHT LEFT
Normal DirectNormal Direct
OR
RS-8
Receiver/
Amp
Receiver/
Amp
RS-8
Line
Speaker
INPUT
Select
