WIRING THE SYSTEM
IMPORTANT: Make sure all equipment is turned off before making any connections.
Connection Tips
Speakers and electronics terminals have corresponding (+) and (–)
terminals. It is important to connect both speakers identically: (+)
on the speaker to (+) on the amplifier and (–) on the speaker to (–)
on the amplifier. Wiring “out of phase” results in thin sound, weak
bass and a poor stereo image.

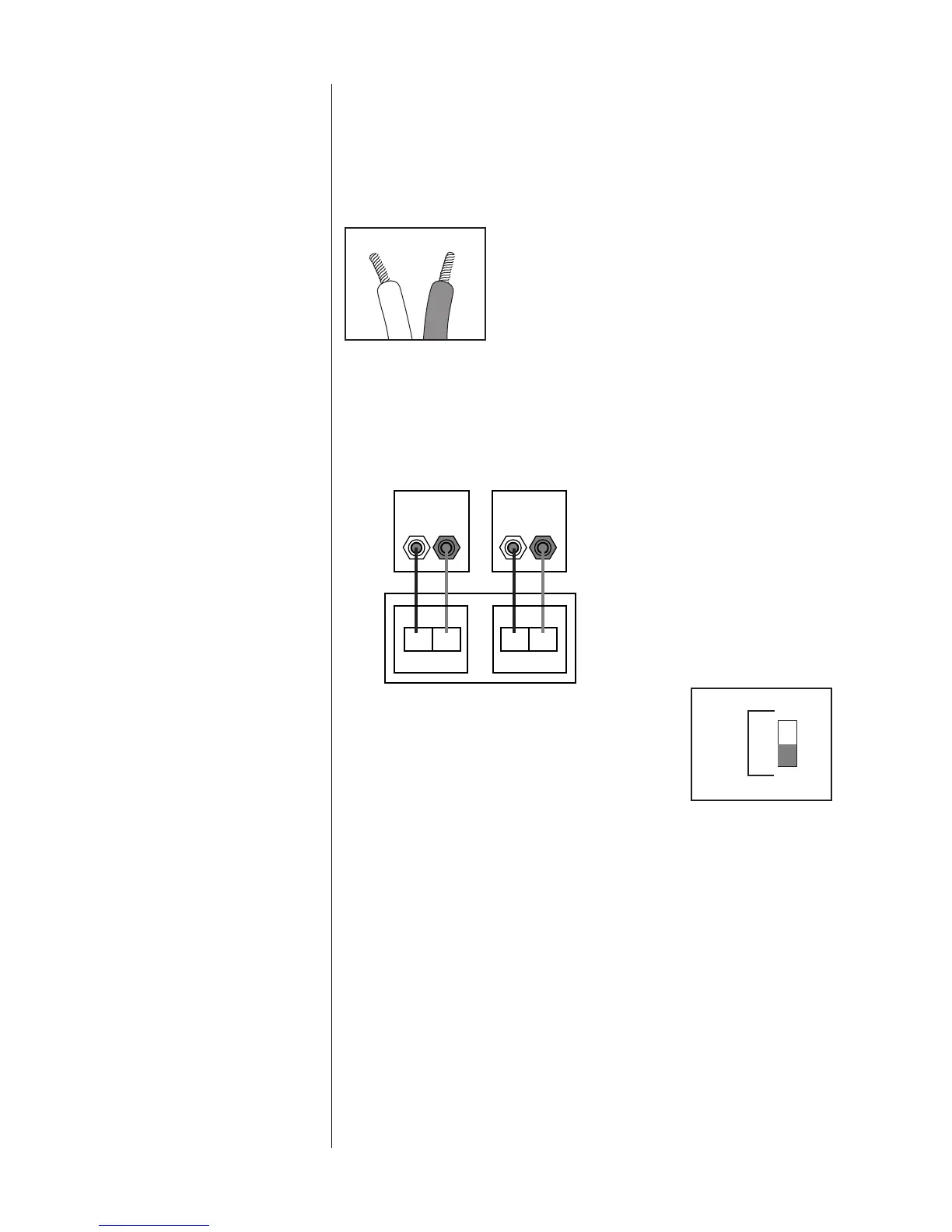

If your receiver does not have a subwoofer output:
Set Input Select switch to “Speaker.”
– +– +
– + – +
SPEAKER OUTPUTS (RECEIVER/AMP)
RS-8
RIGHT LEFT
RIGHT
LEFT
Line
Speaker
INPUT
Select
RS-8
