Reference Standard (RS-4, RS-5) – Owner’s Manual

◆

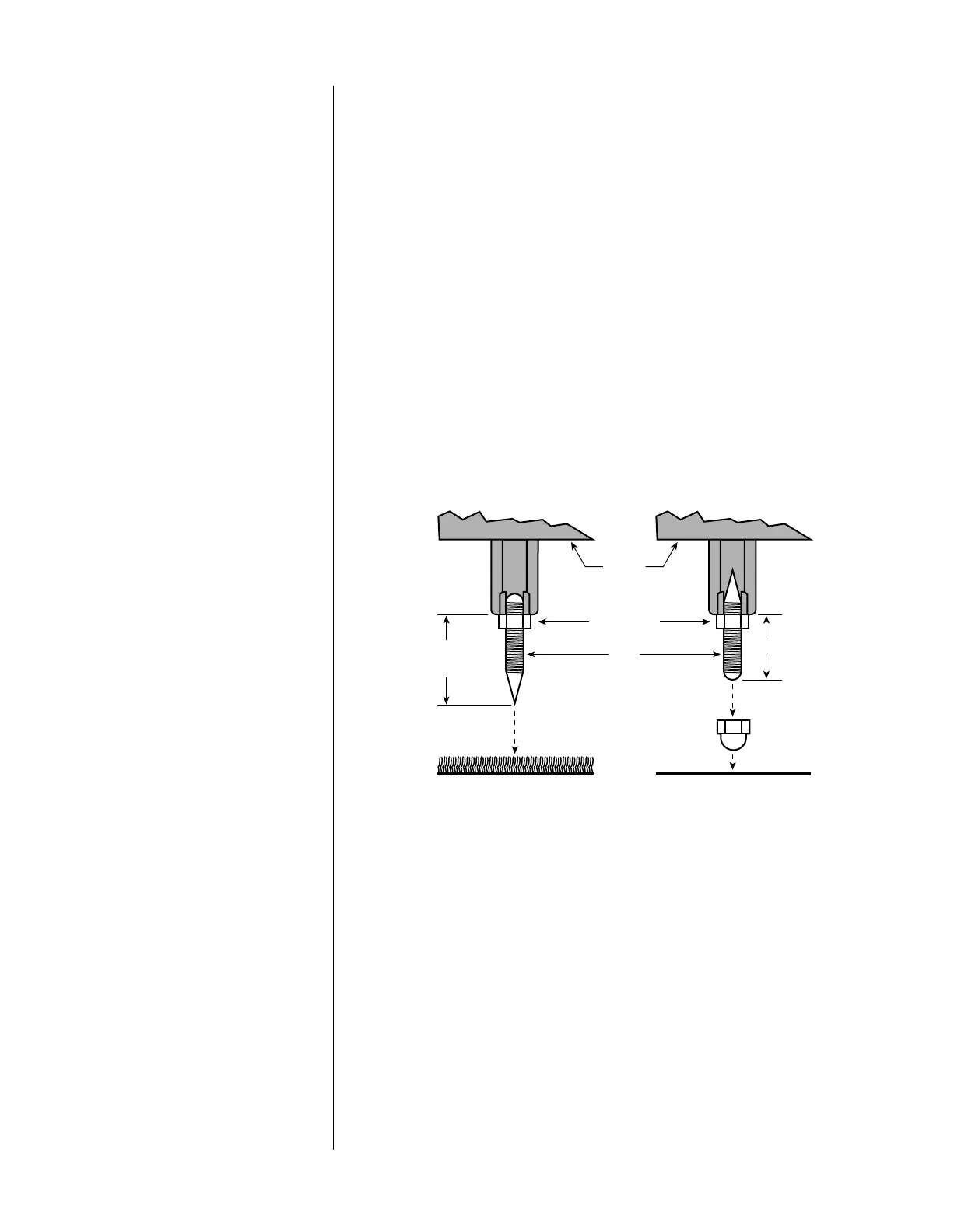

Figure 1. This cross section shows how to

install a foot onto the bottom of an RS-4

or RS-5 floorstanding speaker.

INSTALLING FEET

Refer to Figure 1 as you perform the following steps:

1. Open each accessory pack and locate the following items: four feet (with spike/round ends),

four locking nuts, four nylon domes, and one wrench.

2. Lay each speaker on its side and locate the four threaded holes on the bottom.

3. For carpets, screw the round end of a foot into each hole and hand tighten a nut onto each

one. Leave a minimum of

⁄8"

exposed spike. (On thicker carpets, you can increase the

length of exposed spike up to

⁄8"

.) For hard-surface floors, screw the spike end into each

hole instead and leave

⁄8"

of round end exposed.

4. Carefully flip each speaker upright to sit on its feet.

5. If needed, adjust the feet so each speaker is level and then tighten each nut with the

enclosed wrench. To protect hard surfaces (e.g., wood floors), slip a nylon dome onto each

round end.

Nylon Dome

(optional for

wood floors)

Locking Nut

HARD-SURFACE

FLOORS

CARPETED

FLOORS

Foot

round end

spike end

Bottom

Of Speaker

⁄8"

⁄8" min.

⁄8" max.
