US-1 Theater Pac – Owner’s Manual
◆
3

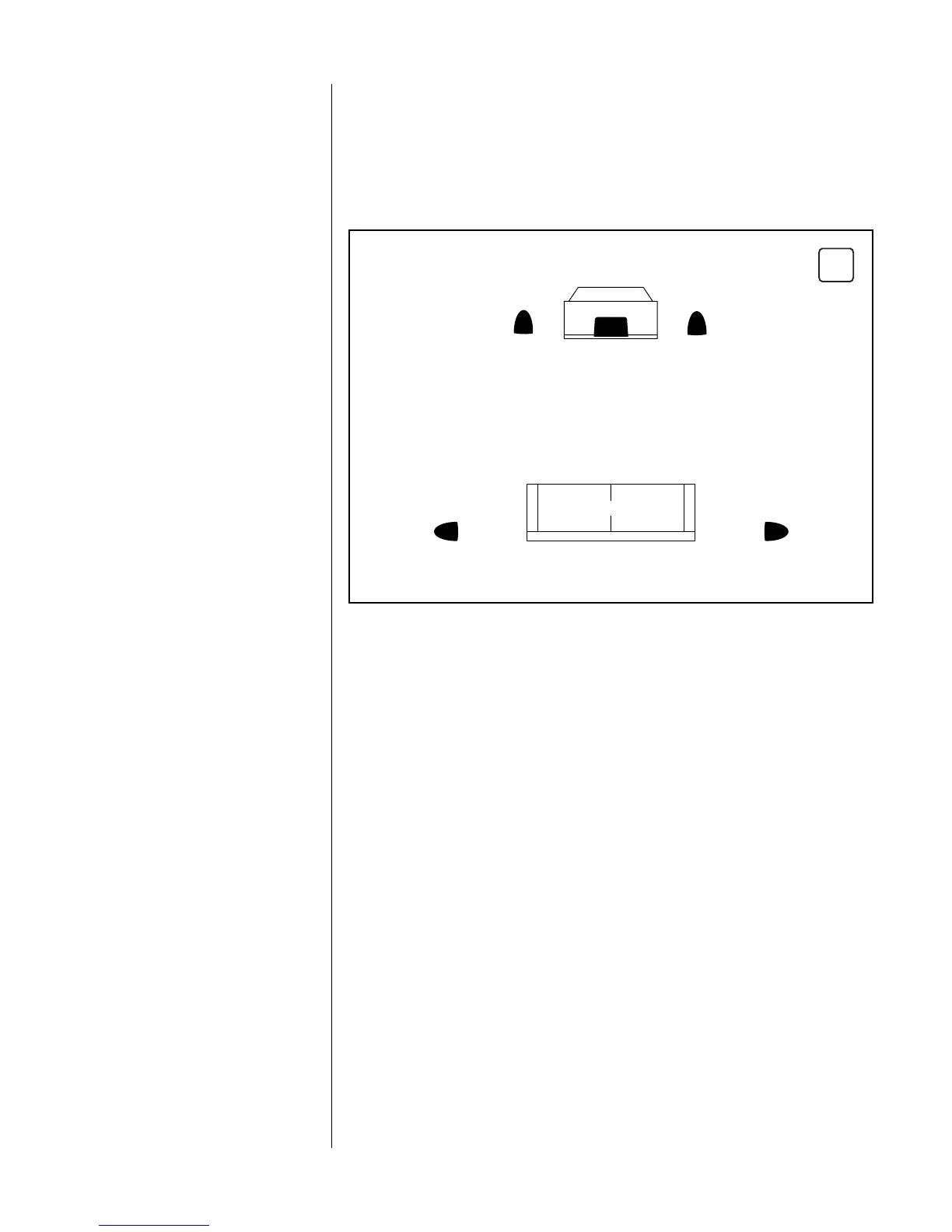

Figure 1. In this overhead view of a typi-
cal 6-piece home entertainment system,
US-1 speakers are used to reproduce
sound for the front, center and surround
channels. An Infinity powered subwoofer
(optional) is shown providing extra
bass for effects and music.
F
RONT
C
HANNELS
...
C
ENTER
C
HANNEL
...
S
URROUND
C
HANNELS
...
PLANNING YOUR SYSTEM
US-1 speakers can be used to reproduce sound for either front or surround channels. Before
deciding where to place your US-1 speakers, survey your room and study Figure 1 to determine
the best placement.
PLACEMENT
NOTE: US-1 speakers can be placed directly on a shelf or mounted on a wall, using the built-in
bracket (see Figures 2 through 5).
For front left and right channels, place one US-1 speaker on the left and another on the right,
along either side of the television monitor.
For the center channel, place one US-1 speaker directly on top of, or below, your
television, either vertically or horizontally.
Since the speakers are magnetically shielded, you can place them very close to the TV without
worrying about the magnetic field distorting the TV picture.
For surround left and right channels, place one US-1 speaker on the left and another on the right,
to the side of, or behind the listening area.
TELEVISION
SOFA
US-1 SPEAKER
For Left Channel
INFINITY POWERED
SUBWOOFER
(optional)
US-1 SPEAKER
For Right Channel
US-1 SPEAKER
For Left Surround
US-1 SPEAKER
For Right Surround
US-1
SPEAKER
On Top of Television
For Center Channel
INF1446 3/22/99 9:58 AM Page 3
