Ethernet Port LEDs
View the Activity and Link LEDs to see link activity and connection speeds on Ethernet ports. describes the status conveyed by Ethernet Figure 2
port LEDs through their color and illumination (steady glow or blinking).

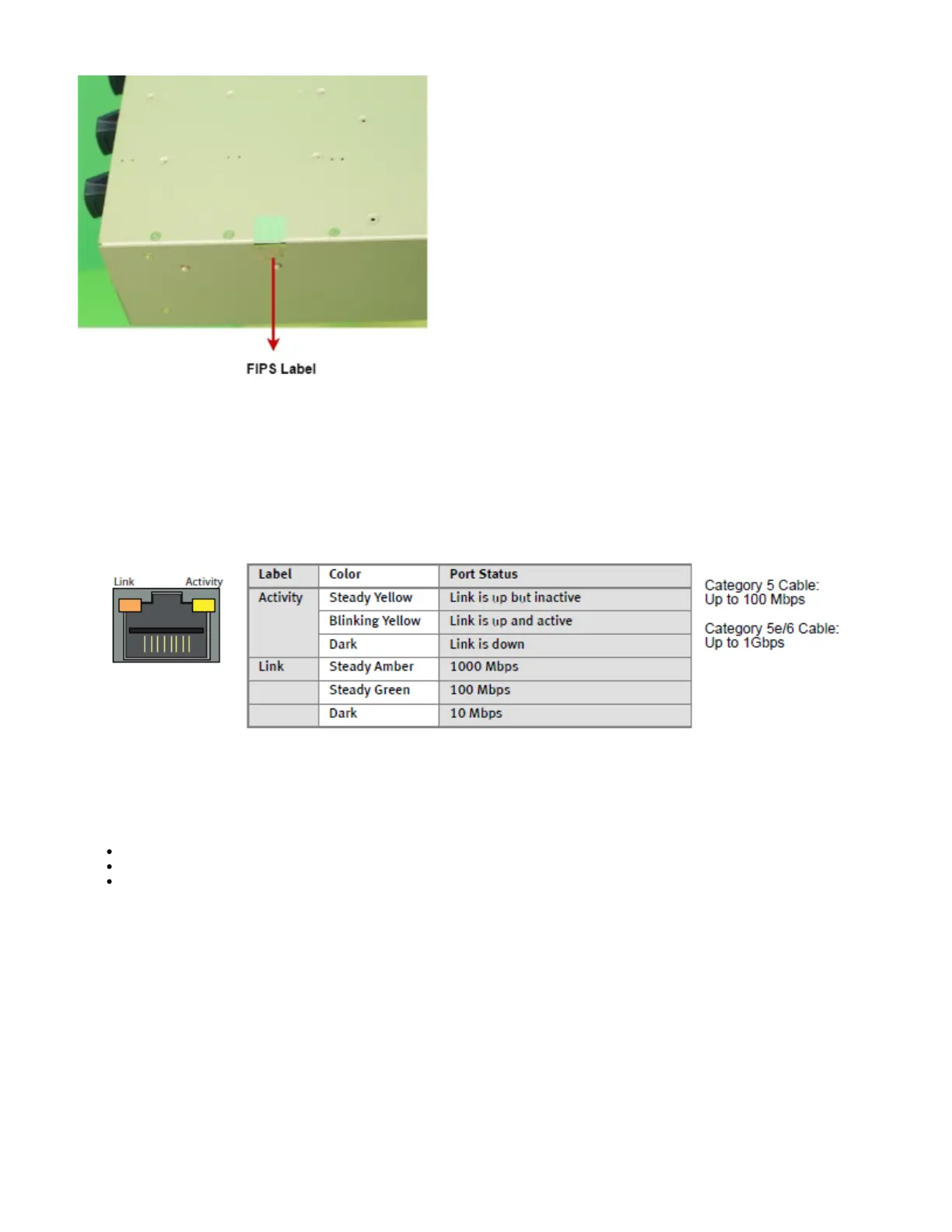

Figure 2 Ethernet Port LEDs
Interface Connector Pin Assignments
An Infoblox 805 Series appliance has three types of ports on its front panel:
USB port (reserved for future use)
Male DB-9 console port
RJ-45 10Base-T/100Base-T/1000Base-T auto-sensing gigabit Ethernet ports
Figure 3 describes DB-9 and RJ-45 connector pin assignments. DB-9 pin assignments follow the EIA232 standard. To make a serial connection
from your management system to the console port, you can use an RJ-45 rollover cable and two female RJ-45-to-female DB-9 adapters, or a
female DB-9-to-female DB-9 null modem cable. RJ-45 pin assignments follow IEEE 802.3 specifications. All Infoblox Ethernet ports are
auto-sensing and automatically adjust to standard straight-through and cross-over Ethernet cables.
Figure 3 DB-9 Console Port and RJ-45 Port Pinouts
