10Base-T Ethernet and 100Base-T fast Ethernet use the same two pairs of wires. The twisted pair of wires connecting to pins 1 and 2 transmit
data, and the twisted pair connecting to pins 3 and 6 receive data. For 1000Base-T connections, all four twisted-pair wires are used for
bidirectional traffic.
Appliance Rear Panel

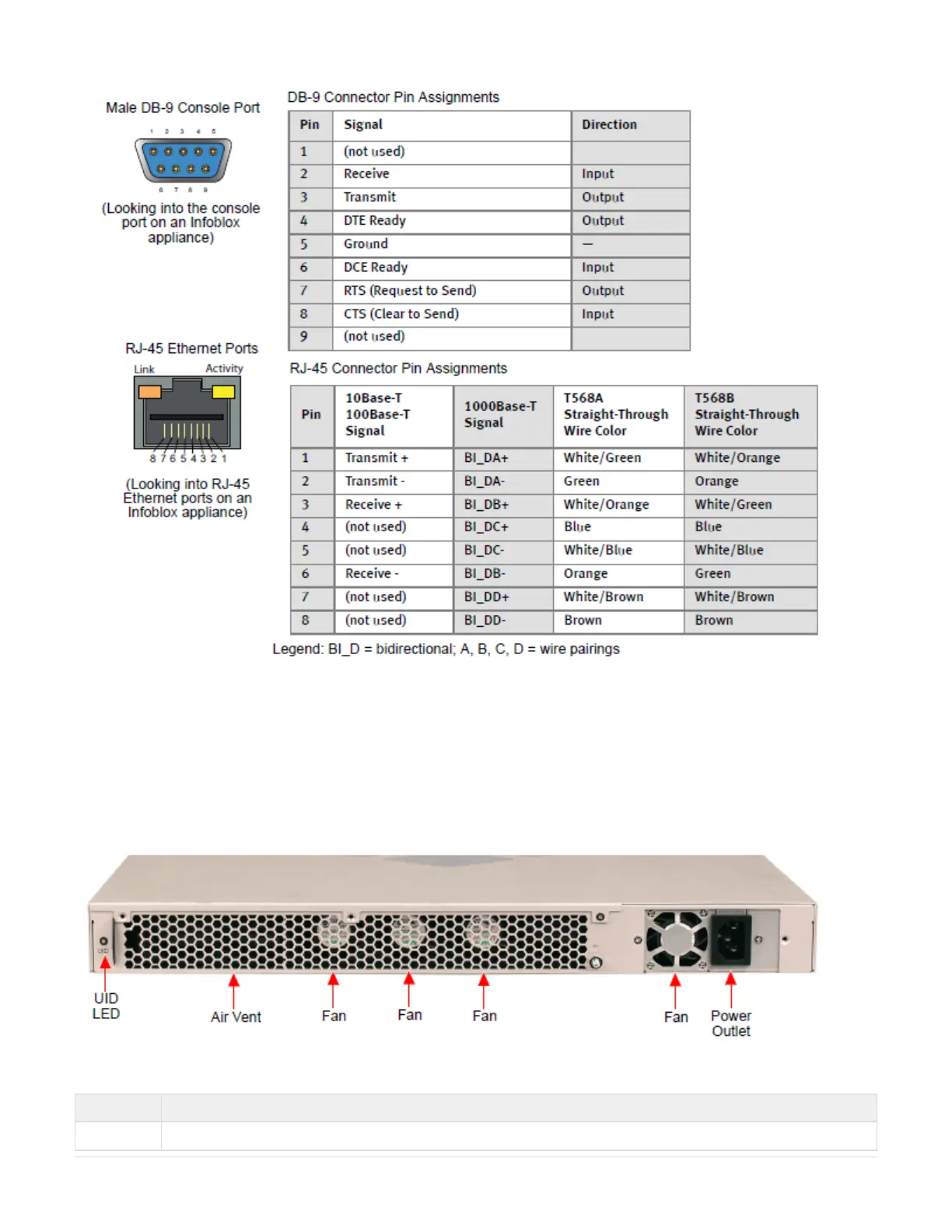

Figure 4 shows the rear panel components on the Infoblox 805 Series appliances.
Figure 4 Infoblox 805 Series, Rear View
Table 2 Infoblox 805 Series Rear Panel Components
Component Description
Air Vent An air vent that allows warm air to flow out of the appliance. Do not obstruct.
