3. Slide the inner chassis slide rails out of the rack slide brackets, as shown in .Figure 7

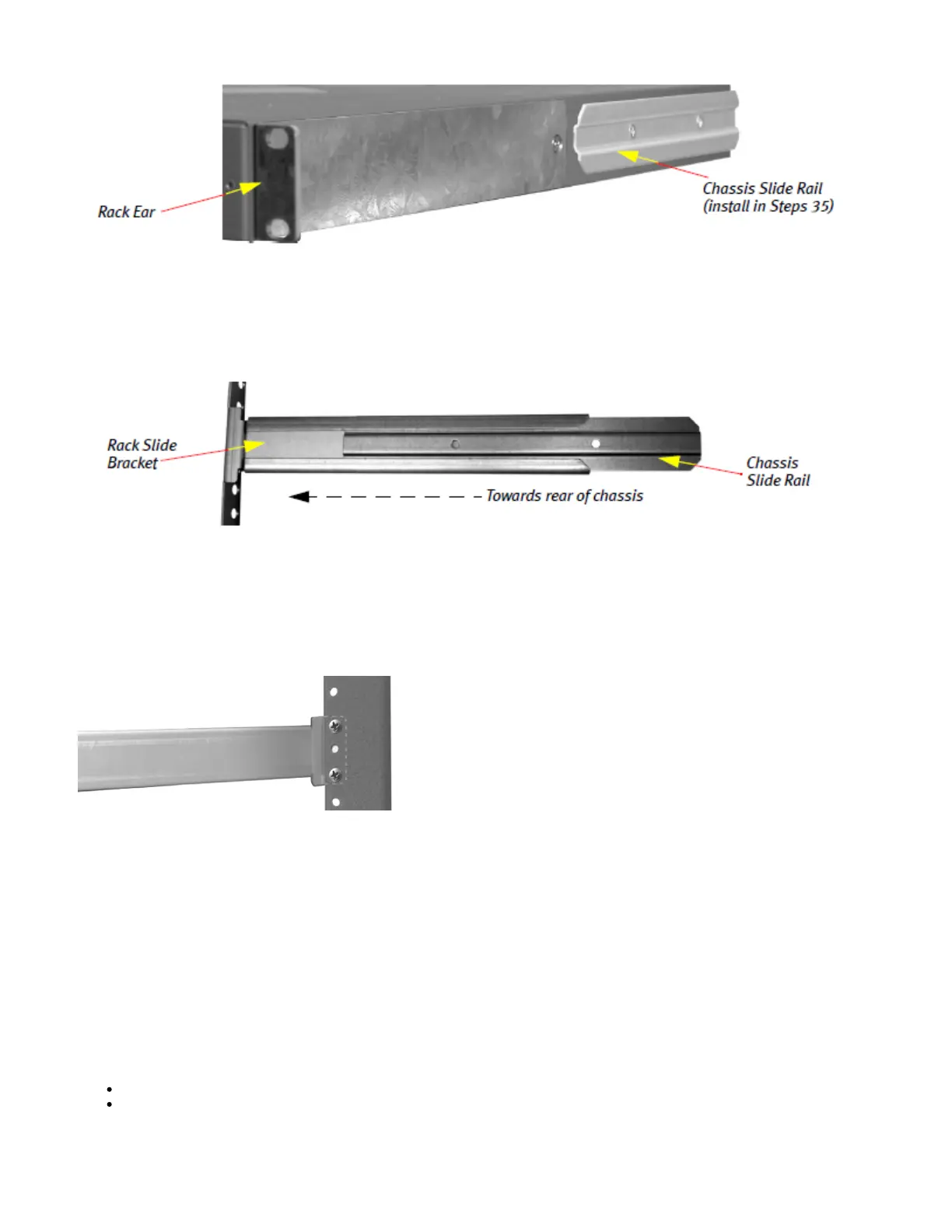

Figure 7 Chassis Slide Rail and Rack Slide Bracket
4. Align the mounting holes on the chassis slide rails with the rear-most mounting holes on each side of the chassis, as shown in Figure 6.
Ensure that you place the chassis slide rails in the correct orientation. Otherwise, the mounting holes do not align correctly.
5. Attach the chassis slide rails to each side of the chassis with two (2) 8-32 screws, as shown in .Figure 6
6. Select a desired location and secure the rack slide brackets to the rear posts of the equipment rack with two (2) 10-32 screws on each
side of the rack, as shown in . Figure 8
Figure 8 Rack Slide Bracket Attached to the Rear Post of the Rack
7. With one person on each side, lift the appliance and position it in front of the equipment rack.
8. Align the chassis slide rails on the appliance with the rack slide brackets on the posts of the equipment rack.
9. Slide the appliance into the rack slide brackets.
10. Secure the rack ears to the front rack posts with two (2) 10-32 screws on each side of the rack.
Adjustable Rail Four-Post Rack Mount
Infoblox provides an adjustable four-post rail kit with 600mm to 900mm depth adjustment, designed to allow one person to perform physical
installation of the rail kit and the appliance.
The adjustable rail kit is designed for tight vertical spaces on the interior of a four-post rack, allowing for appliance installation in restricted rack
spaces, including 1U of available rack space.
The adjustable rail kit includes the following items for installation:
Eight (8) Flat-head beveled 8/32" screws that attach rail pieces to the appliance chassis
Eight (8) Phillips-head 10/32" screws for affixing the rack rails to the four-post rack
The technician must provide four attachable cage nuts for adapting the square mounting holes on the rear posts of the four-post rack to accept
the 10/32" screws.
