1.
To install the adjustable rail kit, do the following:

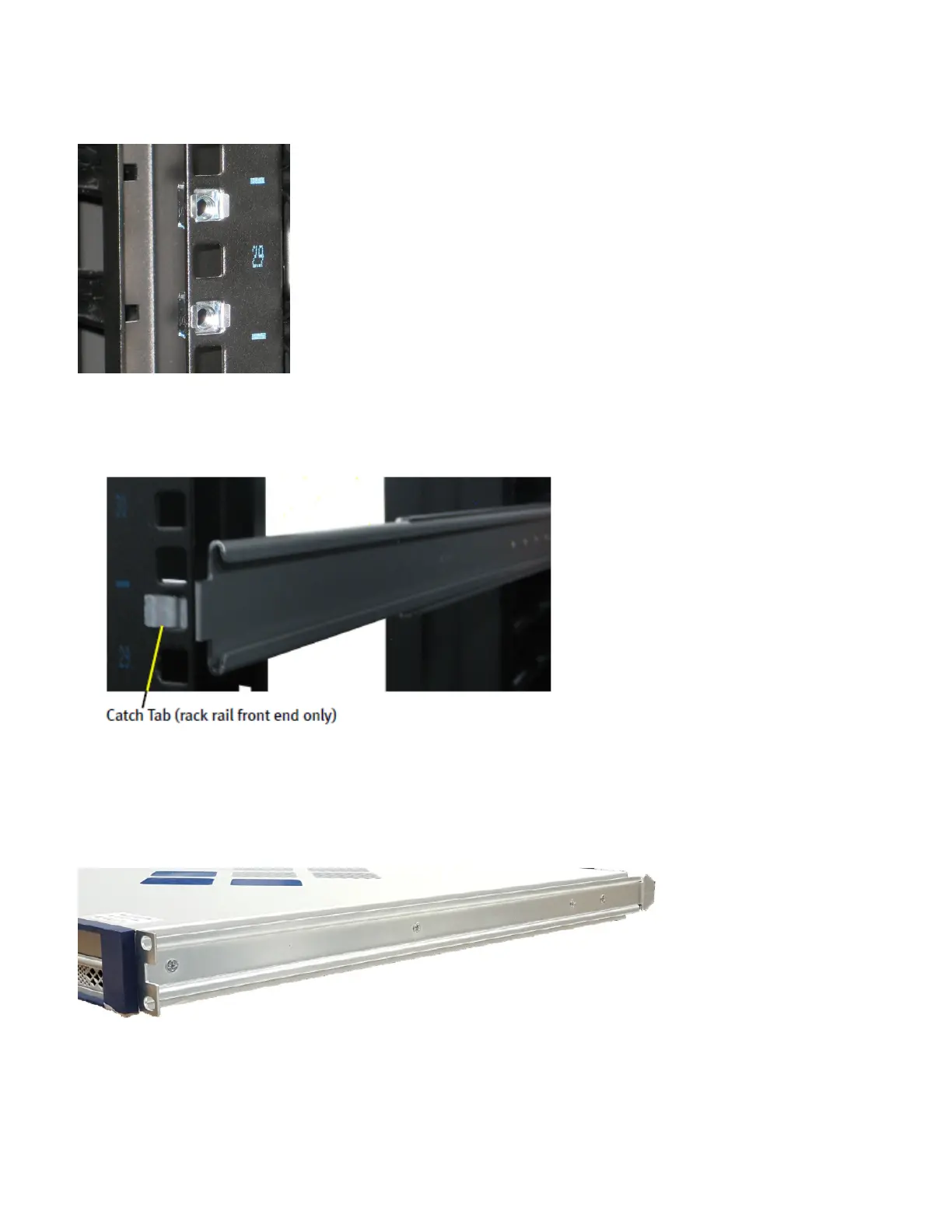

Install the cage nuts in the rear rack posts in the desired location, as indicated in :Figure 9
Figure 9 Install cage nuts on the rear posts of the designated rack space
2. Fasten the catch tab of the rack rail on the front of the rack space designated for the appliance. Each rack rail (2) in the adjustable rail kit
provides a metal catch tab on the front end of the rack rail. This catch tab fastens to a square mounting hole as shown in .Figure 10
Figure 10 Catch tab fastens on front posts of designated space
3. Extend the rack rail assembly backwards, align the mounting holes on the chassis slide rails with the required cage nuts, and fasten the
back end of the rack rail to the two cage nuts on the rear post of the designated space. As noted, the rack rail assembly has an extension
range from the minimum of 500mm to a maximum of 1000mm.
4. Perform Steps 2 and 3 for the second rack rail assembly.
5. Attach the chassis slide rails to each side of the chassis with four (4) flathead 8-32 screws, as shown in . Figure 11
Figure 11 Chassis slide rails Installation
6. Lift the appliance and position it in front of the equipment rack.
7. Align the chassis slide rails on the appliance with the rack slide brackets on the posts of the equipment rack.
8. Slide the appliance into the rack slide brackets.
9. Secure the rack ears to the rack with four (4) 10-32 screws on each side of the rack.
