264 mm (10.4”)
96.1 mm (3.8”)
60 mm (2.4”) 66 mm (2.6”)

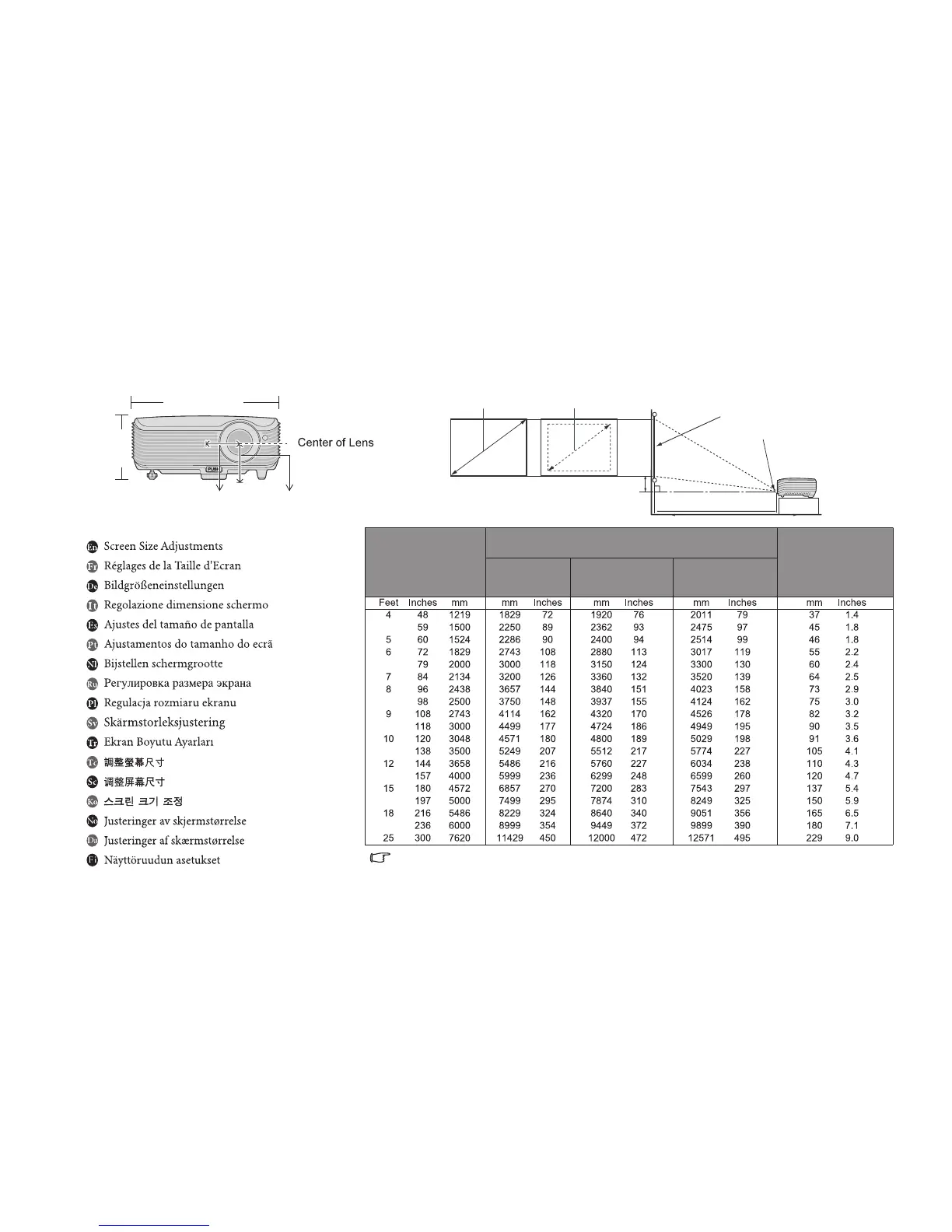

Projection dimensions
Refer to the picture below for the center of lens dimensions of this projector
before calculating the appropriate position.
Projection distance
Center of lens
Screen
Vertical offset
Maximum zoom
Minimum zoom
4:3 screen diagonal
Recommended projection distance from
screen
Vertical offset
Min length
(with max.
zoom)
Average
Max length
(with min.
zoom)
There is 3% tolerance among these numbers due to optical component variations. InFocus recommends that if you intend to
permanently install the projector, you should physically test the projection size and distance using the actual projector before
you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the
exact mounting position so that it best suits your installation location.
