InFocus in5302 User Manual

6

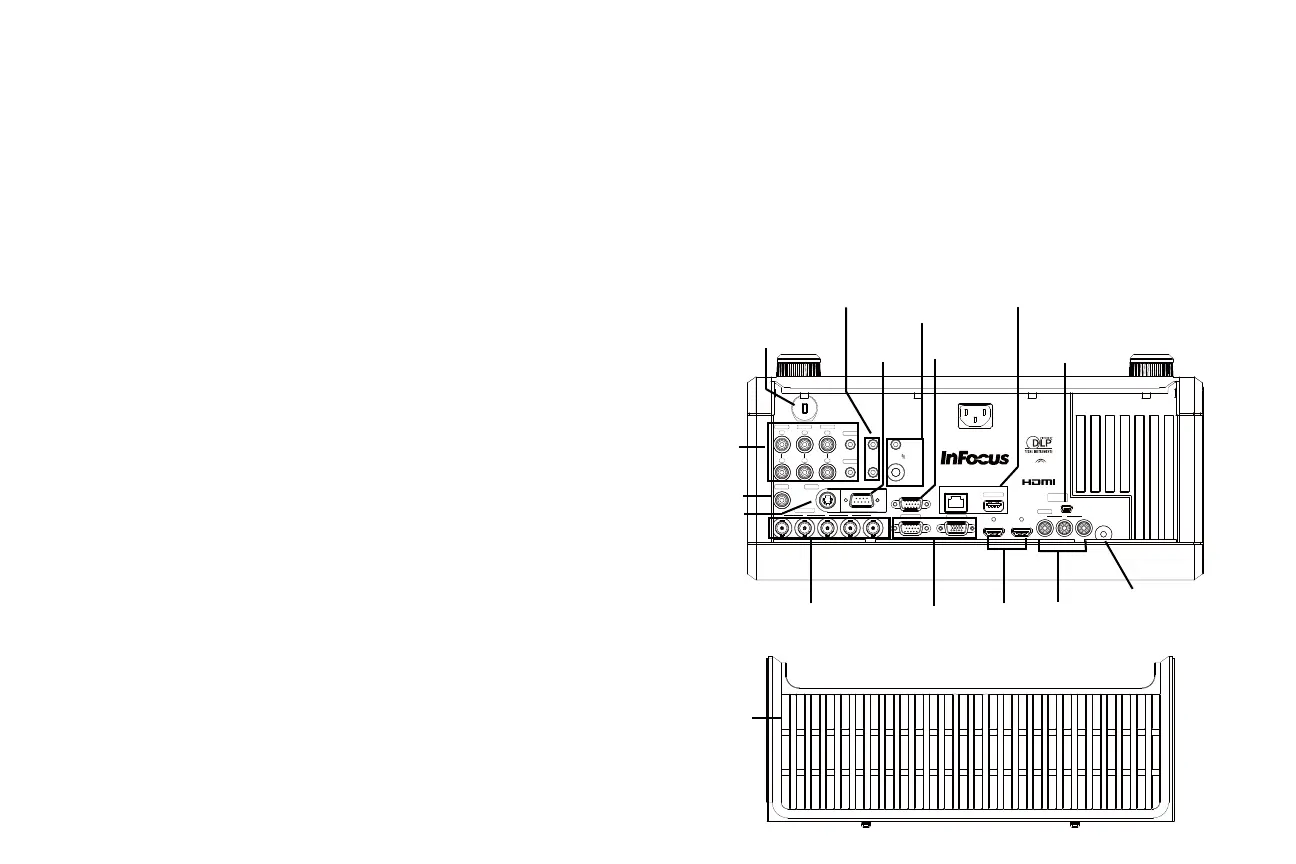

Connector panel
The projector provides both computer and video connection options,
including:
•VGA computer (2)
•HDMI (2)
•S-video
•Composite video
• Component video
• BNC RGBHV and YPbPr for RGBHV, EDTV and HDTV
• Separate audio inputs for video and computer
• USB DisplayLink connector, for computer audio/video input. This
U
SB connection also provides power out for the DisplayLink Wireless
Adapter.
The projector also provides the following connectors:
• Monitor out, to provide an image on your desktop computer as well as
on the pro
jection screen.
• LAN port for network control and web server.
• LitePort, for connecting a USB flash drive containing
JPEG images.
• Audio out, to provide sound for external speakers.
• 5 volt DC output
• 12V screen trigger output
• Wired remote jack (for use with optional Commander 2 remote)
•IR repeater jack
• RS-232 connector for serial control.
Command control codes are in the
Appendix and on our support website at www.infocus.com/support.
NOTE: Only VGA video is sent to the Monitor out connector.
5 volt DC output
The coaxial 6.4mm x 2.2mm jack provides a constant 5 volt, 2 amp DC
output when the projector is on, and will also provide power when the
projector is in standby (powered off) if Network and DisplayLink items in
the Always-On Functions submenu are set to Yes. It is designed to provide
power to an InFocus LiteShow II wireless device or InFocus DisplayLink
Extender device.
12V Screen Trigger output
The 3.5mm mini-jack screen trigger provides a 12 volt, 0.25 amp DC output.
It turns on when the lamp is lighted. If you connect your projection screen
to this output using the cable that came with your screen, the screen will
move down when the lamp is turned on and the screen will return to its
storage position, when the lamp is turned off.
screen trigger
12V DC
250 mA
wireless
ready
audio 5
video 5 video 4
video 3
remote
computer 4
computer 2
computer 3
L
R
VH B G R
YPbPr
R
R
L
L
audio 4 audio 3
audio 2
audio 1
LitePort
computer 1
DisplayLink
audio out
IR
serial
monitor out
LAN
+5V DC; 2A
DisplayLink
TM
certified
Audio in
Security lock
RS-232
Screen
Trigger/5V
Audio out /
IR repeater
Composite
video
RGBHV
YPbPr
HDMI
Monitor out
Component
video
LAN/ Liteport
Cable cover
S-video
DisplayLink
connector
VGA
Wired
remote
