trapuls – EtherCAT® Fieldbus Interface

Chapter 5 – Synchronization of Xtrapuls EtherCAT® slaves

SYNC TYPE 4: HARD SYNCHRONISATION (STIFF)

The distributed clock is the source of the internal software PLL to synchronize the servo loops. This clock event is

physically the SYNC0 signal generated by the distributed clock of the ESC.

The PDO mapping is performed in the following way:

In this synchronisation type, the EtherCAT® master is also supposed to embed TPDO and RPDO in the same

EtherCAT® telegram.

The EtherCAT® master is responsible for the setup of the SYNC0 cycle time parameter during the communication

start-up phase (PS transition).

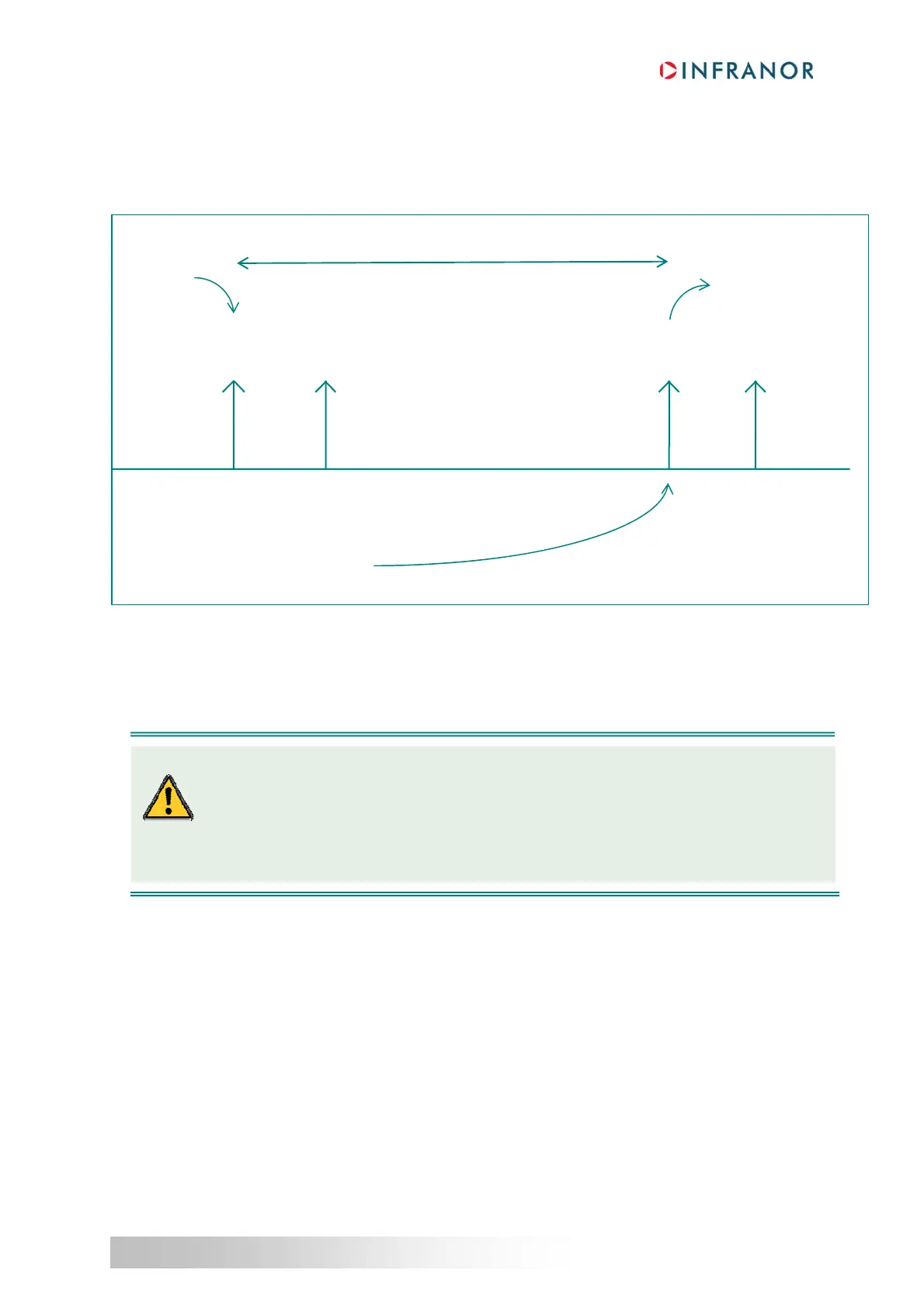

Execution

of RPDOs

Communication cycle period

SM2

Event

(RPDO)

Sampling of

TPDOs

SM2 Event

(RPDO)

Reception

of RPDOs

Transmition

of TPDOs

SYNC0

Event

SM2

Event

(RPDO)

SYNC0

Event

With this type of synchronisation care must be taken during the setup of the master :

Distributed clocks should be enabled by the master.

The SYNC0 cycle time and the cycle task communication period needs to be equal to the

communication cycle period object 1006h.

If one of these conditions is not fulfilled, the transition Preop to Safe-Op will not be performed and the

AL Status Code will be set to 26h, meaning an inconsistent setting.
