4.4 Cylinder Block

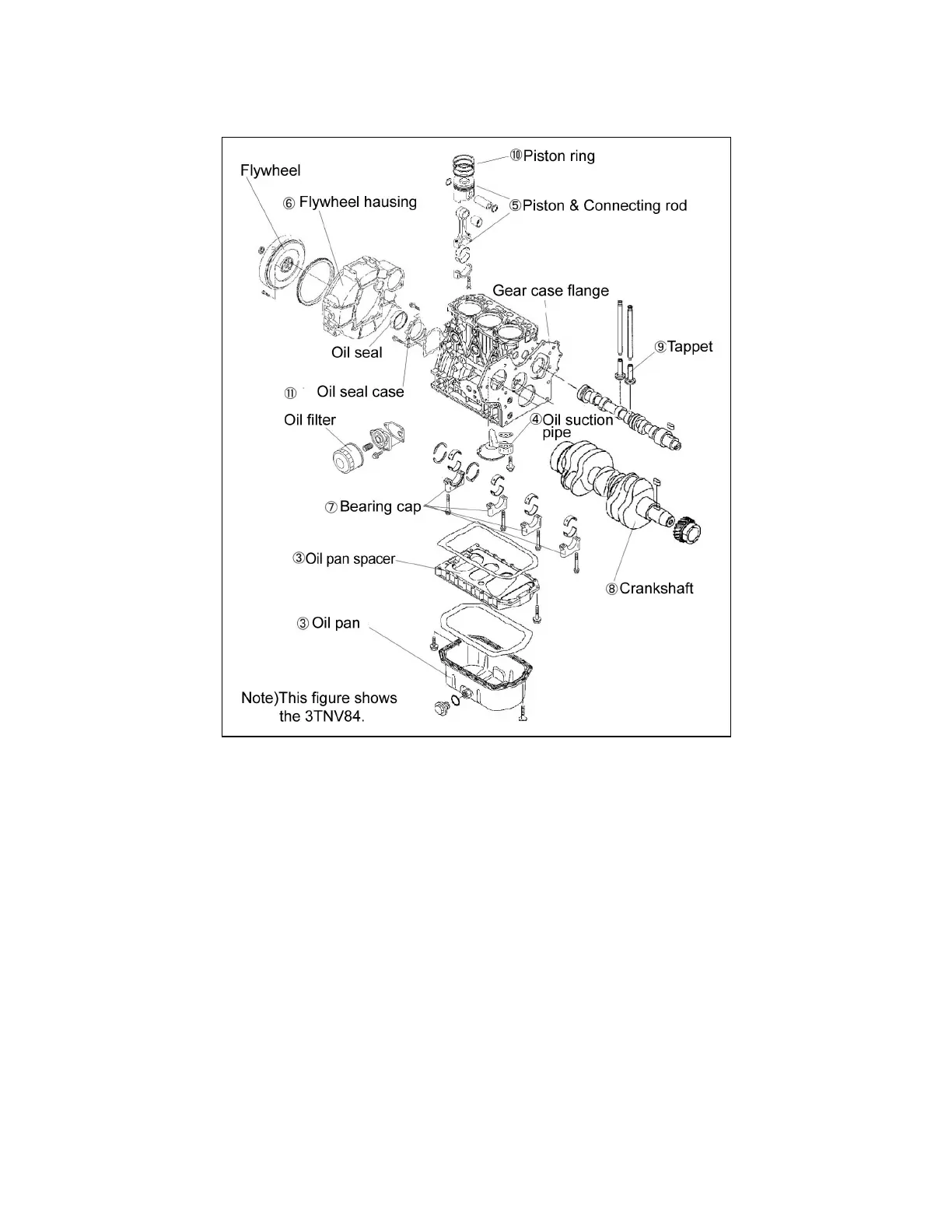

4.4.1 Components
4.4.2 Disassembly procedure:
Disassemble in the order of the numbers in the illustration.
Perform steps 1) to 12) in the cylinder head disassembly procedure.
Perform steps 1) to 12) in the gear train disassembly procedure.
Remove the oil pan. (Point 1)
Remove the lubricating oil suction pipe.
Remove the piston w/rod. (Point 2)
Remove the mounting flange. (Point 3)
Remove the bearing metal caps. (Point 4)
Remove the crankshaft. (Point 5)
Remove the tappets.
Remove the pistons and rings. (Point 6)
Remove the oil seal from the mounting flange. (Point 7)
4.4.3 Reassembly procedure:
Reverse of the disassembly procedure.
