4.2.3Reassembly procedure:
Reverse order of the disassembly procedure.
4.2.4Servicing points

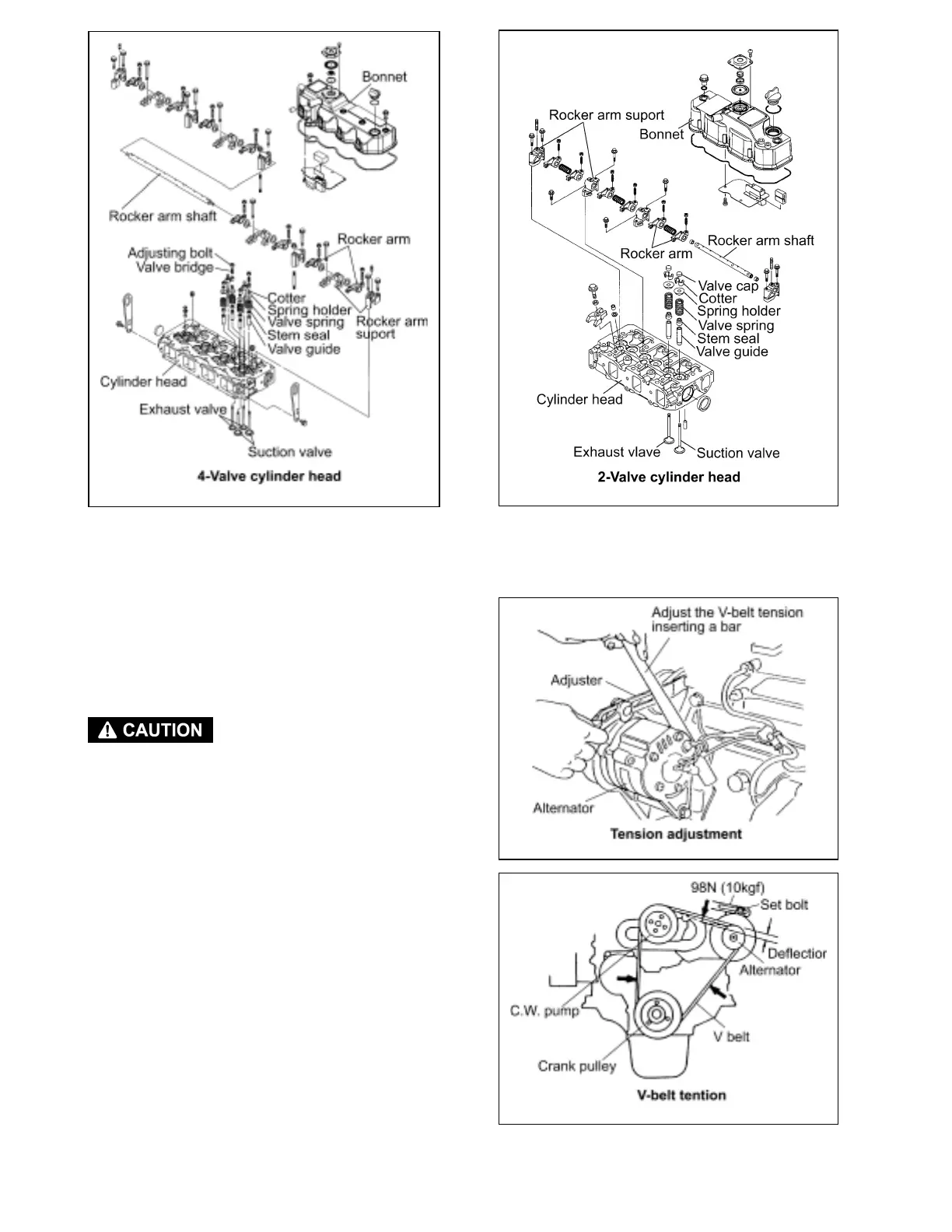

Point 1
[Disassemble]
Loosen the mounting bolt while supporting the
alternator.
Do not tilt the alternator toward the cylinder block in
haste since it may damage the alternator or pinch a
finger.
[Reassemble]
The belt deflection shall be checked according to
2.2.2. in Chapter2.
[Reassemble]
Replace the belt with a new one if cracked, worn
or damaged.
Carefully prevent the belt from being smeared
with oil or grease.
