Inkel MX 991 - Bass Controls

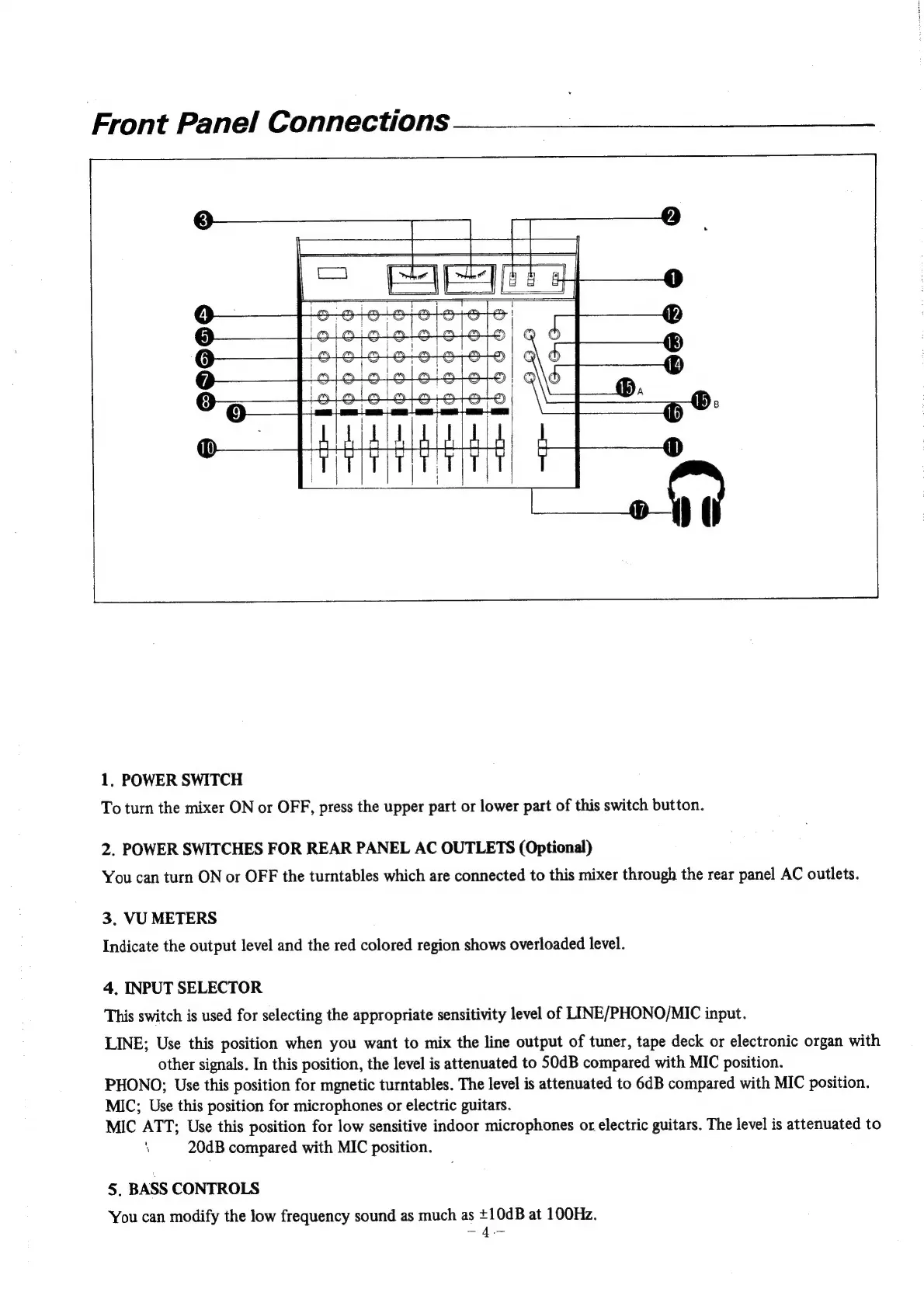

Front
Panel
Connections
1, POWER SWITCH
To
turn
the
mixer
ON
or
OFF,
press
the
upper
part
or
lower
part
of
this
switch
button.
2. POWER SWITCHES FOR REAR PANEL AC OUTLETS (Optional)
You
can
turn
ON
or
OFF
the
turntables
which
are
connected
to
this
mixer
through
the
rear
panel
AC
outlets.
3. VU METERS
Indicate
the
output
level
and
the
red
colored
region
shows
overloaded
level.
4, INPUT SELECTOR
This
switch
is
used
for
selecting
the
appropriate
sensitivity
level
of
LINE/PHONO/MIC
input.
LINE; Use this position when you want to mix the line output of tuner, tape deck or electronic organ with
other signals. In this position, the level is attenuated to 50dB compared with MIC position.
PHONO; Use this position for mgnetic turntables. The level is attenuated to 6dB compared with MIC position.
MIC; Use this position for microphones or electric guitars.
MIC ATT; Use this position for low sensitive indoor microphones or electric guitars. The level is attenuated to
‘ 20dB compared with MIC position.
5. BASS CONTROLS
‘You can modify the low frequency sound as much as +10dB at 100Hz.
-—4-
