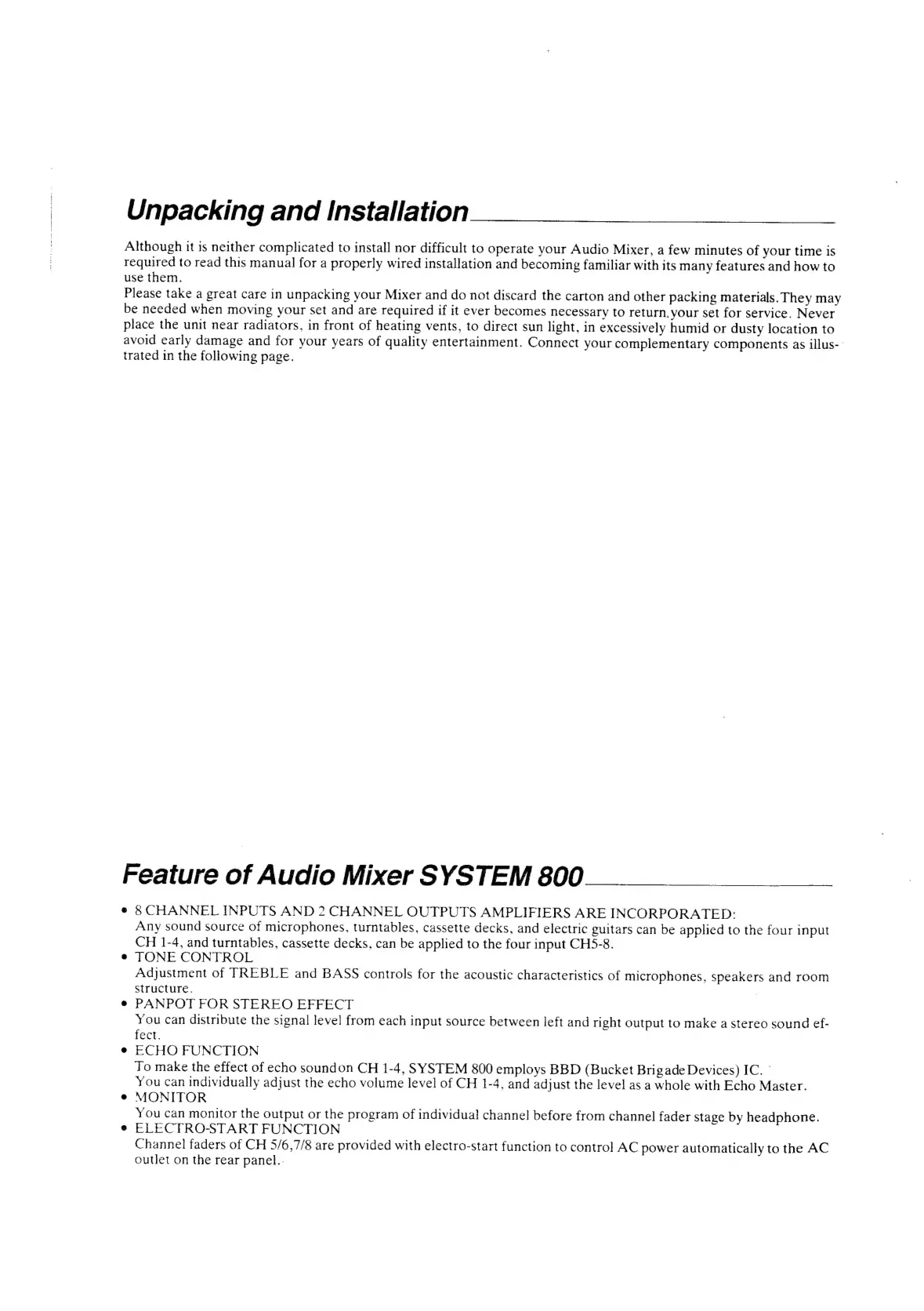

Unpacking and Installation
Although
it
is
neither
complicated
to
install
nor
difficult
to
operate
your
Audio
Mixer,
a
few
minutes
of
your
time
is
required
to
read
this
manual
for
a
properly
wired
installation
and
becoming
familiar
with
its
many
features
and
how
to
use
them.
Please
take
a
great
care
in
unpacking
your
Mixer
and
do
not
discard
the
carton
and
other
packing
materials.
They
may
be
needed
when
moving
your
set
and
are
required
if
it
ever
becomes
necessary
to
return.
your
set
for
service.
Never
place
the
unit
near
radiators,
in
front
of
heating
vents,
to
direct
sun
light,
in
excessively
humid
or
dusty
location
to
avoid
early
damage
and
for
your
years
of
quality
entertainment.
Connect
your
complementary
components
as
illus-
trated
in
the
following
page.
Feature
of
Audio
Mixer
SYSTEM
800
8
CHANNEL
INPUTS
AND
2
CHANNEL
OUTPUTS
AMPLIFIERS
ARE
INCORPORATED:
Any
sound
source
of
microphones,
turntables,
cassette
decks,
and
electric
guitars
can
be
applied
to
the
four
input
CH
1-4,
and
turntables,
cassette
decks,
can
be
applied
to
the
four
input
CHS5-8.
TONE CONTROL
Adjustment
of
TREBLE
and
BASS
controls
for
the
acoustic
characteristics
of
microphones,
speakers
and
room
structure.
|
PANPOT FOR STEREO EFFECT
You
can
distribute
the
signal
level
from
each
input
source
between
left
and
right
output
to
make
a
stereo
sound
ef-
{ect
ECHO FUNCTION
To
make
the
effect
of
echo
soundon
CH
1-4,
SYSTEM
800
employs
BBD
(Bucket
Brigade
Devices)
IC.
/
You
can
individually
adjust
the
echo
volume
level
of
CH
1-4,
and
adjust
the
level
as
a
whole
with
Echo
Master.
MONITOR
You
can
monitor
the
output
or
the
program
of
individual
channel
before
from
channel
fader
stage
by
headphone.
ELECTRO-START
FUNCTION
Channel
faders
of
CH
5/6,7/8
are
provided
with
electro-start
function
to
control
AC
power
automatically
to
the
AC
outlet
on the
rear
panel..
