Manual
Item No.
79998
InLine® Tester for BNC, RJ11, RJ45
The
InLine®
Network Cable Tester is an innovative,
practical tester that
can easily read the correct pin
configuration of 10BASE
-
T, 10BASE
-
2,
RJ45/RJ11 modular, 258A, TIA
-
568A/568B and Token Ring cables by
comparing one transmitting end to the corresponding receiving end.
The included remote terminator
allows
the user to test installed cable
either at a wall jack or a patch panel. Verifying continuity and testing
for
faults such as open, shorted and crossed pairs has never been
easier and more affordable.
Features
Displays the actual pin configuration
of 10BASE
-
T and 10BASE
-
2 Ethernet, RJ45/RJ11 modular,
258A, TIA
-
568A/568B and Token Ring cables
Provides easy to read continuity and fault status display
Checks for continuity, open wire, shorted pair and crossed pair faults
Allows for remote testing of in
stalled cables from wall jack or patch
panel
Tests shield wire integrity
Auto or manual scanning

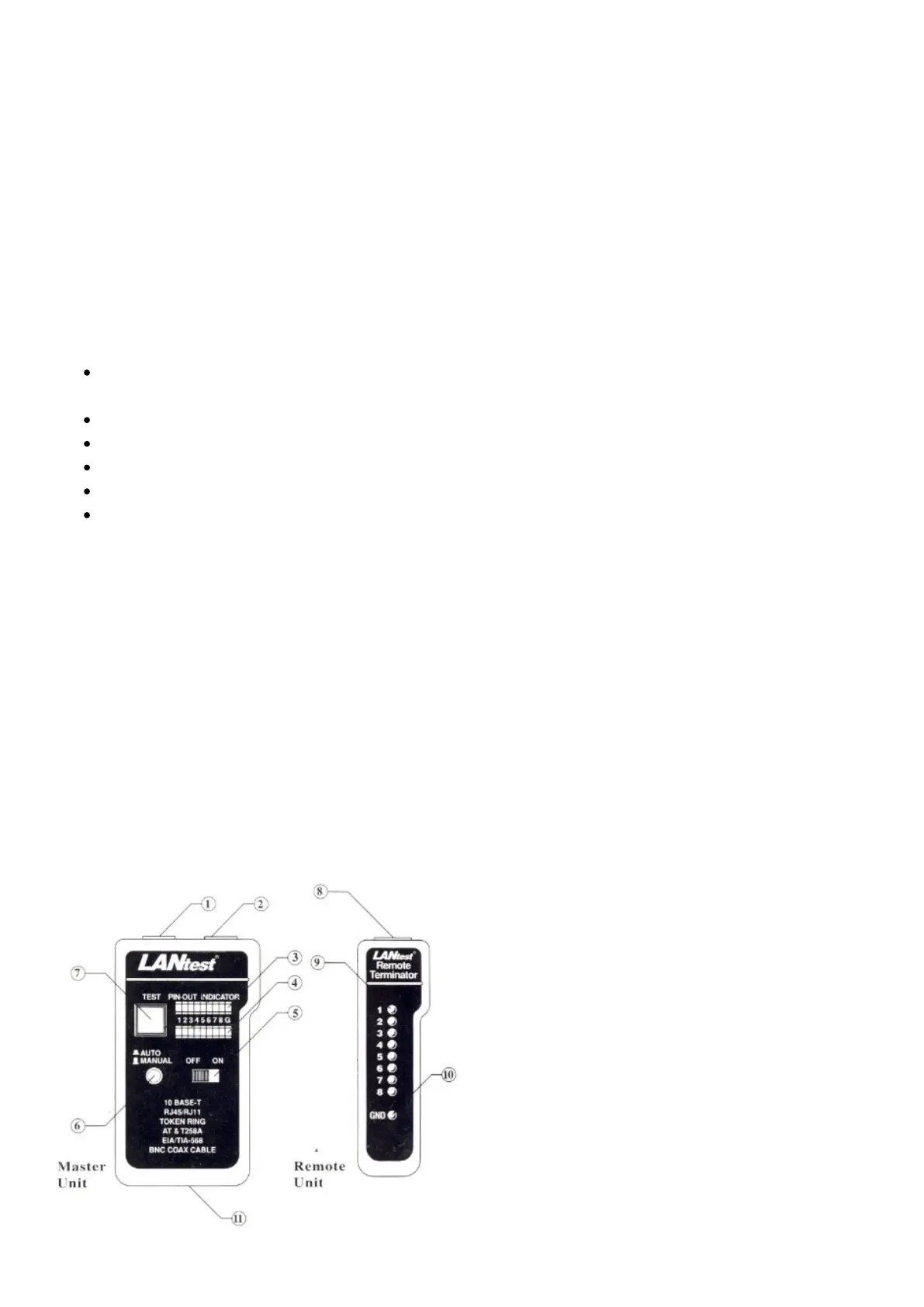

Produktbeschreibung
1.
RJ45 JACK
2.
RJ45 JACK
3.
LED Display for Sourcing End Jack1)
4.
LED Di
splay for Receiving Rnd (Jack2)
5.
Power Switch
6.
LED Scanning
Mode switch
(auto
/man
ual
)
7.
TEST Switch for manual Scan
8.
RJ45 JACK
9.
LED Display for
R
eceiving End
10.
Ground
-
LED for Receiving END
11.
Battery Compartment (9V) Back side
