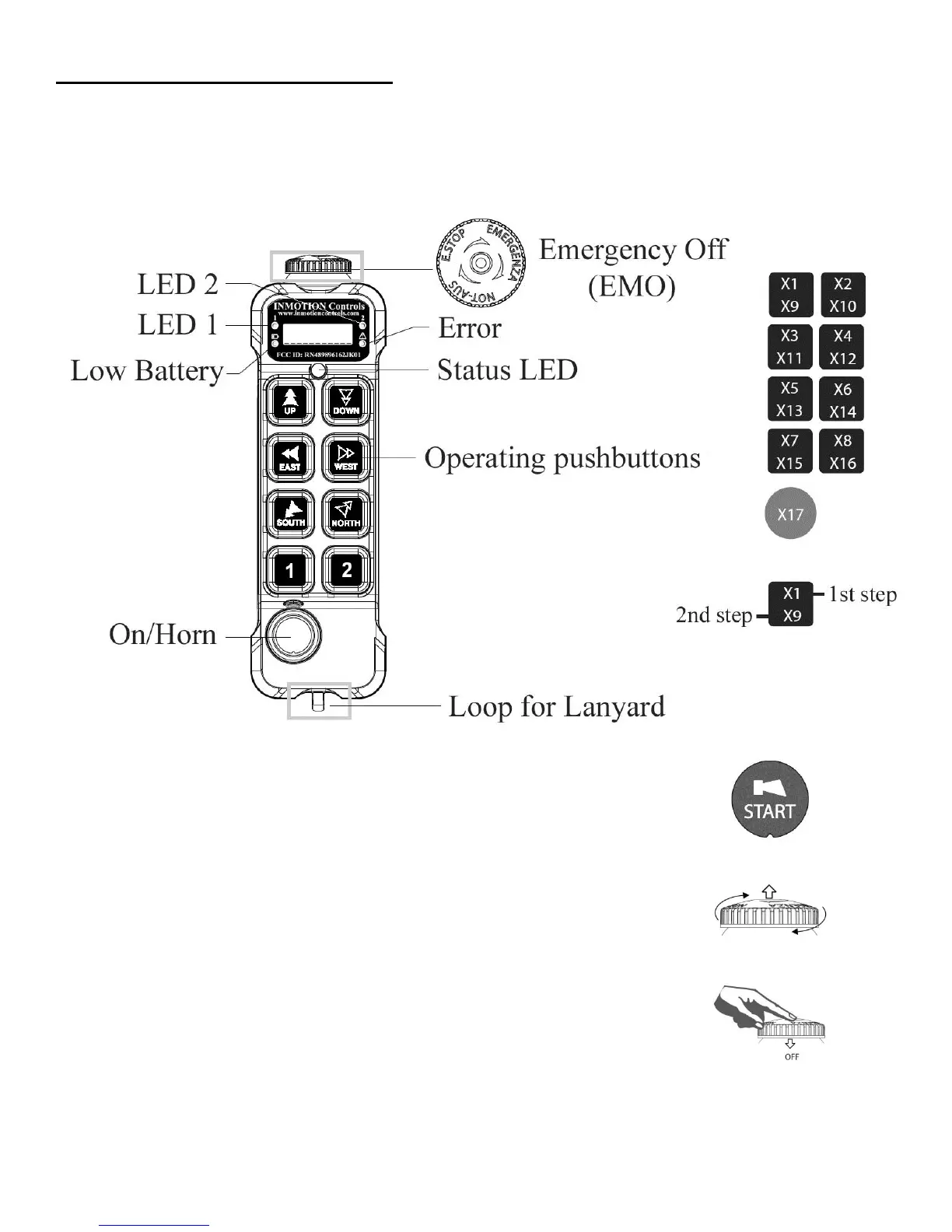

Chapter 2: General Description
The K series transmitter comes in different versions, featuring 2, 4, 6, or 8 pushbuttons. The transmitter also
features 2-step pushbuttons. Both steps of each pushbutton can operate different functions like controlling the
speed of a movement, step 1: slow, step 2: fast.
Start/ Horn switch
The K series transmitter has a Start/Horn pushbutton on the left side.
The Start/Horn switch has 2 functions:
1. Press to Start.
2. Press for horn while operating.
Start the transmitter in operating mode
1. Turn to release the Emergency Off button.
2. Press the ”START” button.
Turning the transmitter off
Turn the transmitter off by completely pressing the Emergency Off button.
The transmitter turns off. All relays deactivate.
