The INMOTION Adventure Electric Unicycle is an intelligent, high-tech entertainment product designed for personal mobility. It is intended for users between 14 and 50 years old, with a height range of 120-200cm. The unicycle is designed with user safety in mind, emphasizing the importance of reading the user manual thoroughly and wearing protective gear such as a helmet, knee pads, elbow pads, and wrist guards during operation.

Function Description:

The INMOTION Adventure Electric Unicycle provides a unique mode of transportation and recreation. It features a self-balancing mechanism that allows riders to control movement by shifting their body weight. The unicycle is equipped with a power button for turning the device on and off, and a short press of the power button in the powered-on state toggles the front light. The front light, by default, functions as a daytime running light. The tail light remains constantly lit when the front light is on and flashes brightly during braking, enhancing visibility and safety.

A notable feature is the "Anti-spin Button," activated by double-pressing the power button. This engages "P mode," where the vehicle loses balance, accompanied by an audible prompt, likely for safety or specific operational scenarios. The unicycle also includes "Power Assist" mode, which allows users to customize acceleration and braking experiences. "Acceleration Assist" can be adjusted for a more comfortable or rapid acceleration, with higher values leading to faster acceleration. Similarly, "Braking Assist" can be adjusted for a more comfortable or rapid braking experience, resulting in shorter braking distances.

The device incorporates a push rod for easy transport and maneuvering when not being ridden. The push rod can be unfolded by pressing a lock button, causing it to spring up automatically, and folded back down by pressing the button again and pushing the rod.

Important Technical Specifications:

Dimensions (LWH): 478228680 mm
Net Weight: 40 kg
Max. Payload: 140 kg
IP Ratings: IP56 (for the frame), IPX6 (for the motor), IP67 (for the battery)
Rated Capacity (Wh): 2277 Wh
Rated Voltage (V): 115.2 V
Range: 80 km (fully charged, 90 kg payload, 25°C, no wind, 40km/h flat road)
Charging Time: 6.6 hours with a single charger; 3.3 hours with dual chargers
Charger Input: AC 110-240V
Charger Output: DC 134.4V-3A
Charger Interface: GX16-4
Quantity of Charger Interface: 2
Rated Power: 5 KW
Max. Power: 9 KW
Max. Torque: 200 N.M
Max. Speed: 70 KM/H (fully charged, 90 kg payload, 25°C, no wind, flat road)
Max. Slope: 50° (fully charged, 90 kg rider, based on extensive tests)
Suspension Travel: 85 mm
Motor Size: 12 inches
Tire Size (Outer cover): 3.00-12
Tire Pressure (BAR): 2.8 BAR
Working Temperature: -10°C to 45°C
Storage Temperature: -20°C to 45°C

Usage Features:

The unicycle's dashboard provides essential information at a glance, including:

Speed: Displays the current speed, with a selectable unit (km/h or mph) via the app.
Gear: Indicates the riding mode (D: Normal mode, S: Sport mode, P: Parking mode). Parking mode can be entered by double-clicking the power button at startup.
Battery Level: Shown numerically and via a battery bar indicator.
Bluetooth Icon: Lights up when connected to the INMOTION App.
Lock Icon: Indicates that the vehicle is locked via an authenticated App account.
Headlight Icon: Lights up when the headlights are turned on.
Trouble Light (Fault Icon): Illuminates in case of a vehicle malfunction, with detailed information available through the app.

The INMOTION App (available on iOS 12.1+ and Android 7.0+) connects via Bluetooth 5.0 BLE (ID: Adventure-XXXXXXXX, where XXXXXXXX are the last 8 digits of the SN). The app allows users to switch display units, view detailed fault information, switch between D/S modes, and lock the vehicle.

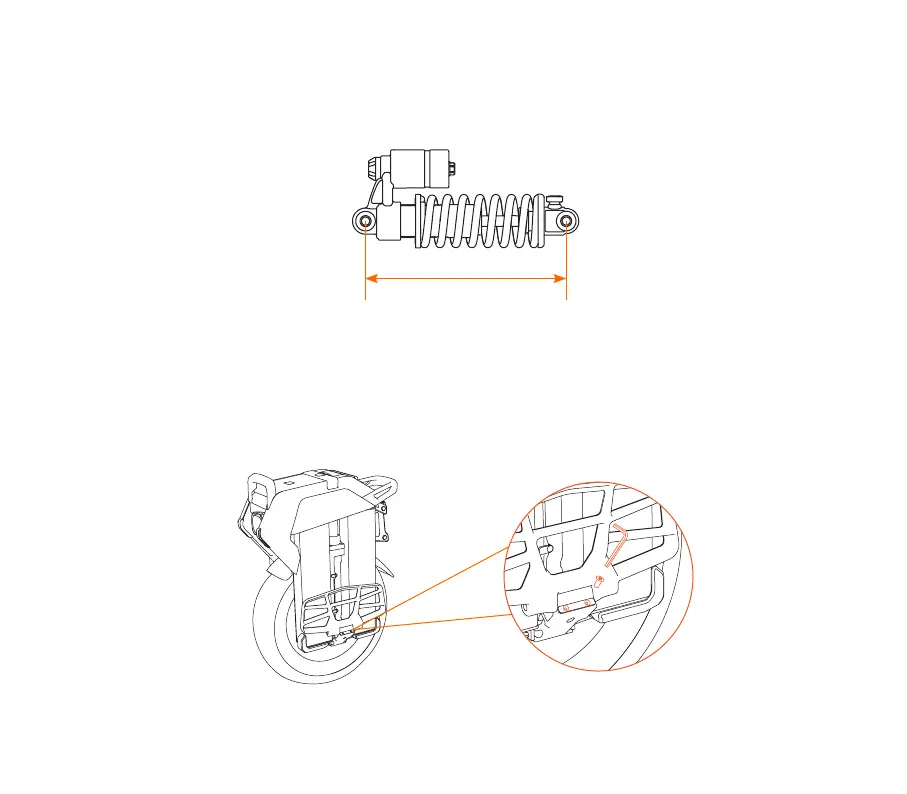

Pedal angle adjustment is possible by aligning an M3 countersunk screw and washer with the screw hole below the pedal and tightening it with an L-shaped wrench. The damper size is 200mm.

Maintenance Features:

The Smart BMS (Battery Management System) provides comprehensive protection for the battery, including overcharging, over-temperature, over-discharge, overcurrent, short circuit, and overvoltage protection.

Charging Guidelines:

The original charger is 134V-3A. A blue light indicates power status, green for full charge, and red for charging. Simultaneous use of both charging ports (maximum input 16A) can reduce charging time by 50%.

Do not charge if the charging port or power cord is wet.
Only use the original adapter.
Avoid charging indoors.
Ensure the charging port lid is tightly covered after charging.
Do not charge a damaged battery or one exposed to water.
For long-term storage, it is recommended to charge the unicycle once every three months.

Safety Precautions:

Always ensure the battery is fully charged (recommended >80%) before use.
Practice riding in a spacious, flat area (at least 4m x 4m) free from obstacles, cars, pedestrians, pets, or bicycles.
A skilled assistant familiar with the unicycle and its precautions is recommended during initial learning.
Avoid riding on slippery ground.
Wear comfortable, casual, or sports clothing and flat shoes. Warm up to improve flexibility.
Always wear a helmet and protective riding gear to prevent injuries.
Keep the original packaging box and materials for at least 30 days for potential future transport of the unicycle.
