CAUTION
The unit body should align perfectly with the hole.
Ensure that the unit and the hole are the same size
before moving on.
2. Drill 4 holes 5cm (2”) deep at the ceiling hook positions
in the internal ceiling. Be sure to hold the drill at a 90°
angle to the ceiling.
3. Using a hammer, insert the ceiling hooks into the
pre-drilled holes. Secure the bolt using the included
washers and nuts.
4. Install the four suspension bolts (See Fig. 4.4).
Table 4.1: Distance from ceiling relative to height of indoor unit
MODEL Length of A (mm/inch) Length of H (mm/inch)
18 205/8 > 235/9.3
24 205/8 > 235/9.3
30 205/8 > 235/9.3
30-48 245/9.6 > 275/10.8
48-60 287/11.3 > 317/12.5
Step 2: Hang indoor unit.
1. Use the included paper template to cut a rectangular hole in the ceiling, leaving at least 1m (39”) on all sides. The
hole will be 88x88cm (34.5x34.5”) big. Be sure to mark the areas where ceiling hook holes will be drilled.

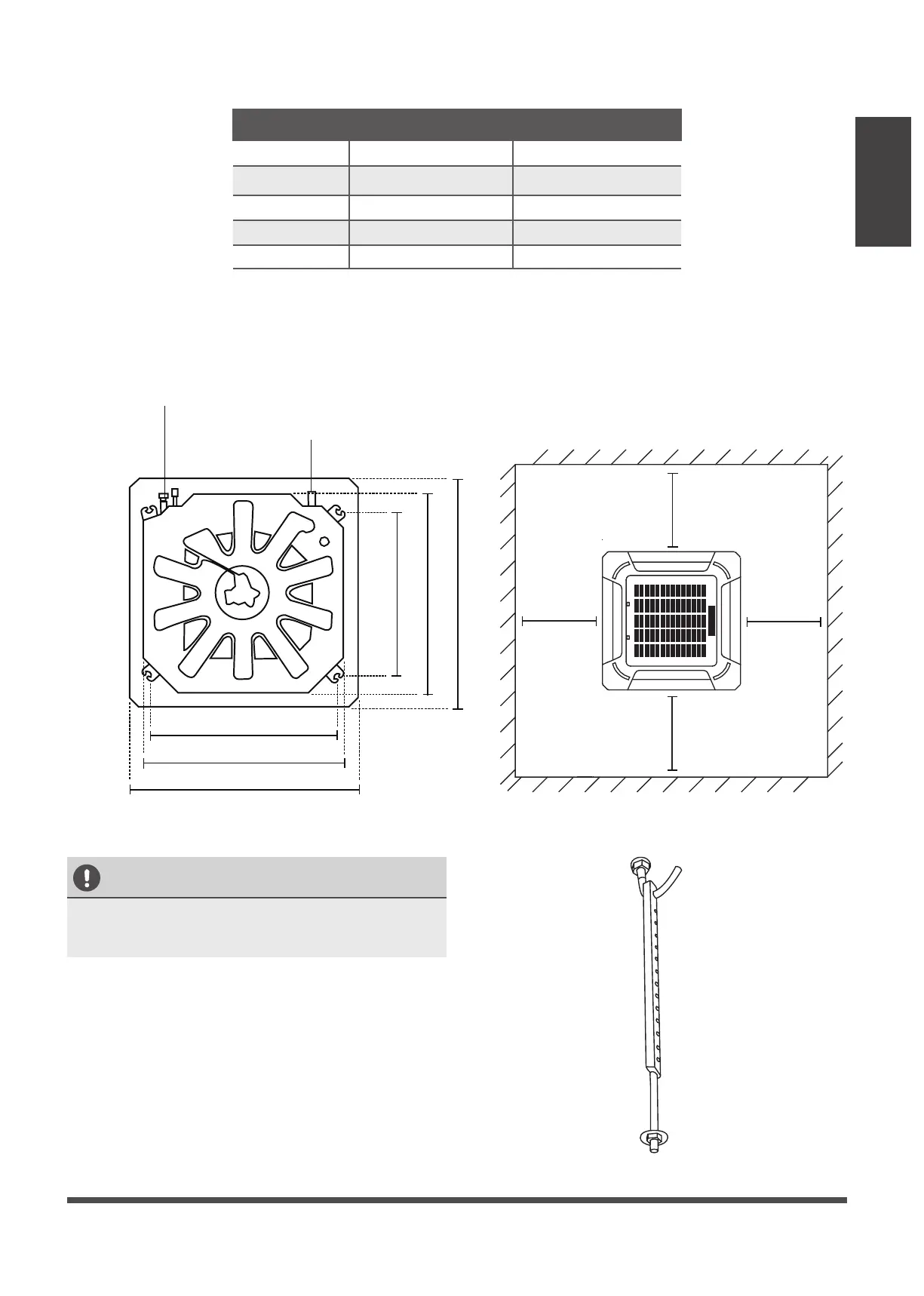

Fig. 4.4
Fig. 4.3
Indoor Unit
Installation
Refrigerant piping side
Drain hose side
78cm / 30” (Suspension bolt)
84cm / 33”(Body)
95cm / 37.4”(Ceiling opening)
68cm / 26”
(Suspension bolt)
84cm / 33” (Body)
95cm / 37.4” (Ceiling opening)
>1m / 39”
>1m / 39”
>1m / 39”
>1m / 39”
