Service Manual, Inogen One G3HF
-14-
Instructions for Replacing the LCD:
1. Place the new LCD module against the back side of the UIP window on the user interface
panel. Orient the LCD module so that the power cable connector on the LCD is on the
right side of the user interface panel (as shown in Figure 5).
2. Re-install the two screws securing the LCD to the user interface panel, making sure that
the LCD is straight and properly aligned in the UIP window (Figure 5). Tighten screws to
5 in-lbs.
3. Reconnect the cable to the LCD module (Figure 6).
Note the location of the red wire.

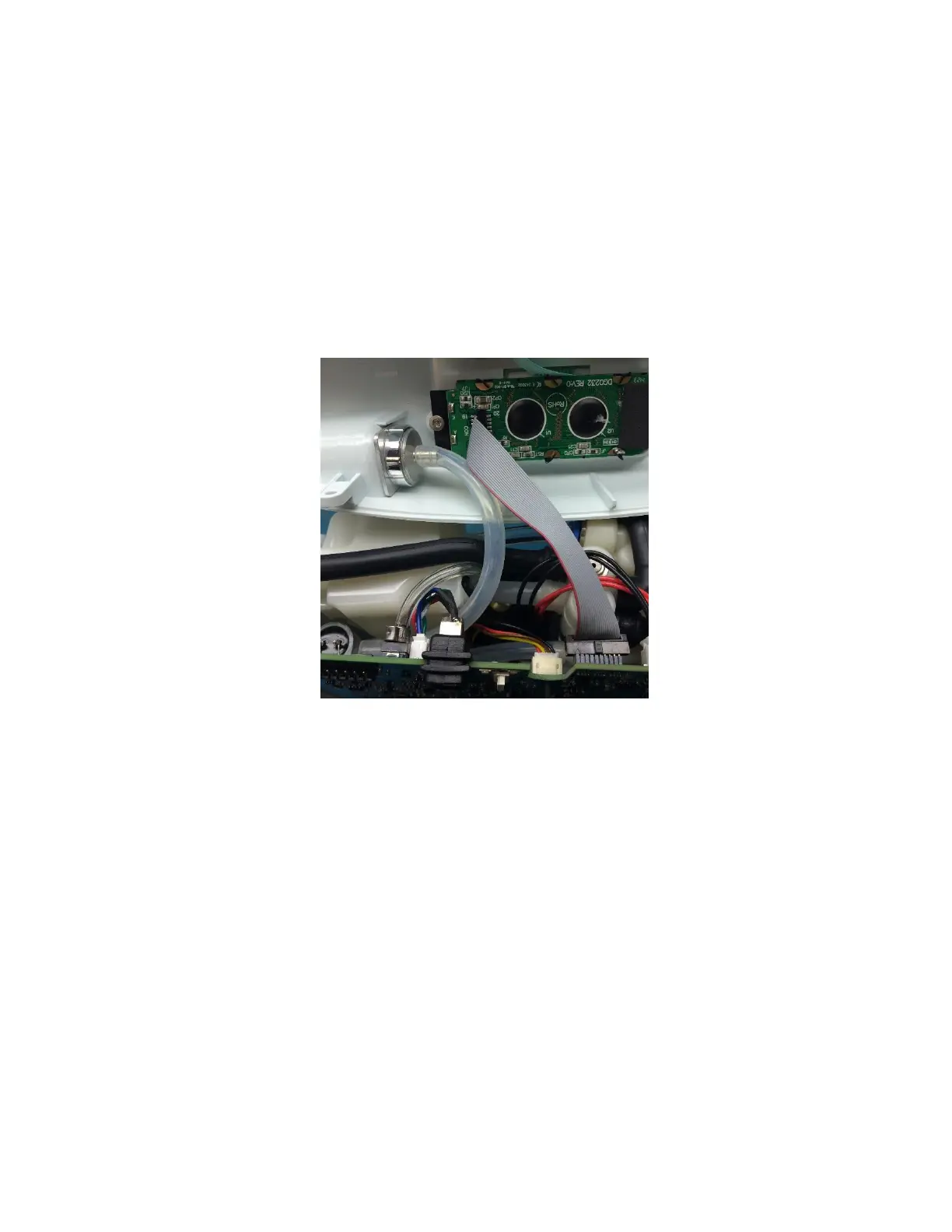

Figure 6: Orientation of LCD cable
4. Re-attach the cannula tubing to the cannula connector (Figure 4).
5. Plug the UIP cable back into the motherboard (Figure 3). Double check that the cables
are fully seated to ensure a complete connection.
6. Test the function of each button and the LCD. If anything does not work, reseat the
cables in the connectors and check for debris in the connectors.
7. Re-install the four screws that connect the user interface panel to the chassis (Figures 1
and 2). Tighten screws to 5 in-lbs.
