-7-

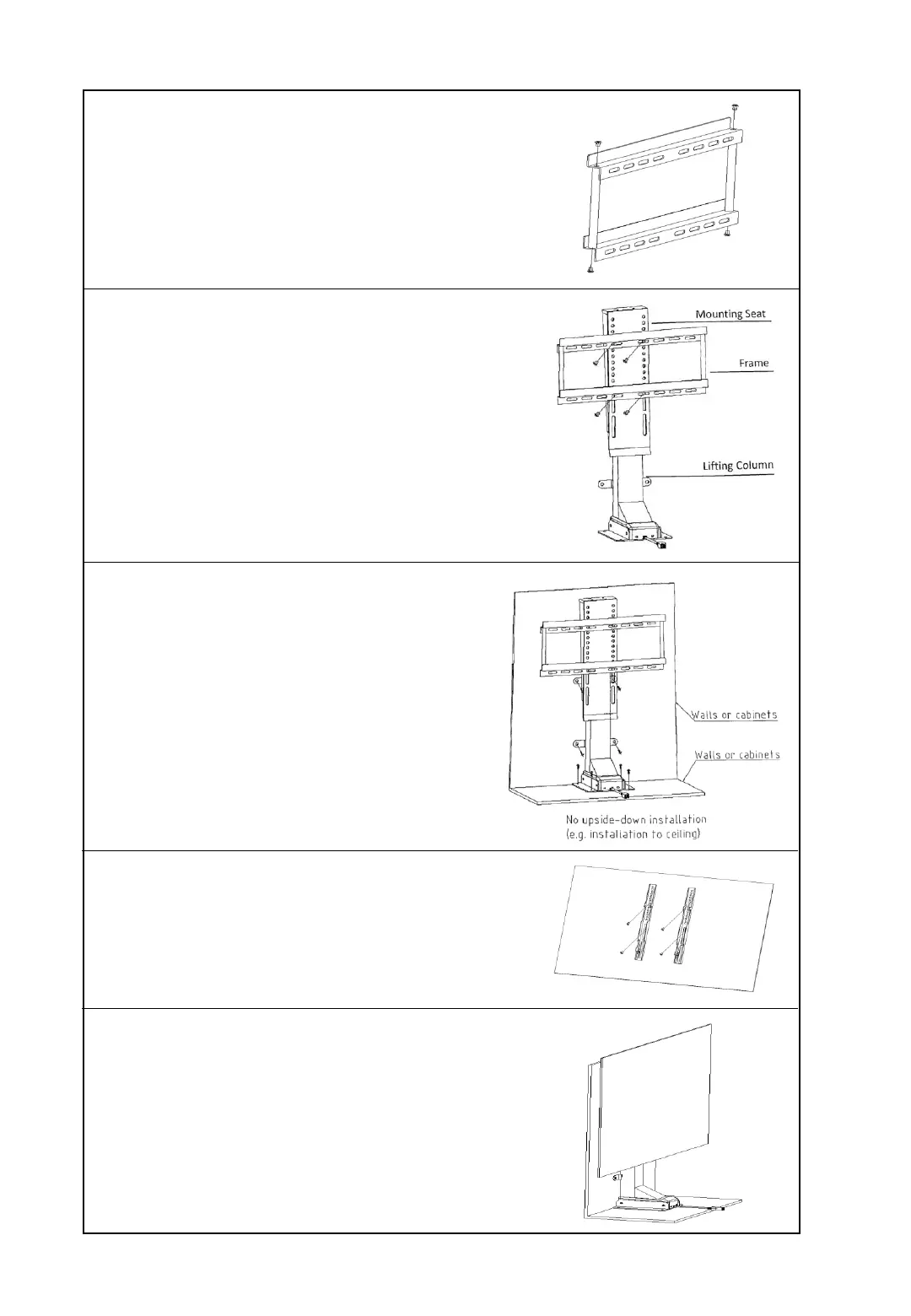

Assembly guide
STEP 1
Connect two TV bracket ( transverse) with
TV bracket connecting rod.
STEP 2
Install frame to TV mounting seat with bolt + nut
(4 pcs M8x20).
(Pay attention to the orientation of the bracket)
STEP 3
Fix the lift column to the wall
or cabinet by screw.
(4pcs ST5 x 15)
(4pcs ST6 x 15)
STEP 4
Install TV bracket ( vertical) on the back of the TV
with bolt. (4 pcs M6x10).
STEP 5
Hang TV on the upright column through
The installed bracket.
Suits for TV size 32-70 inches.
To Next Page
