2.2 Mounting Dimensions

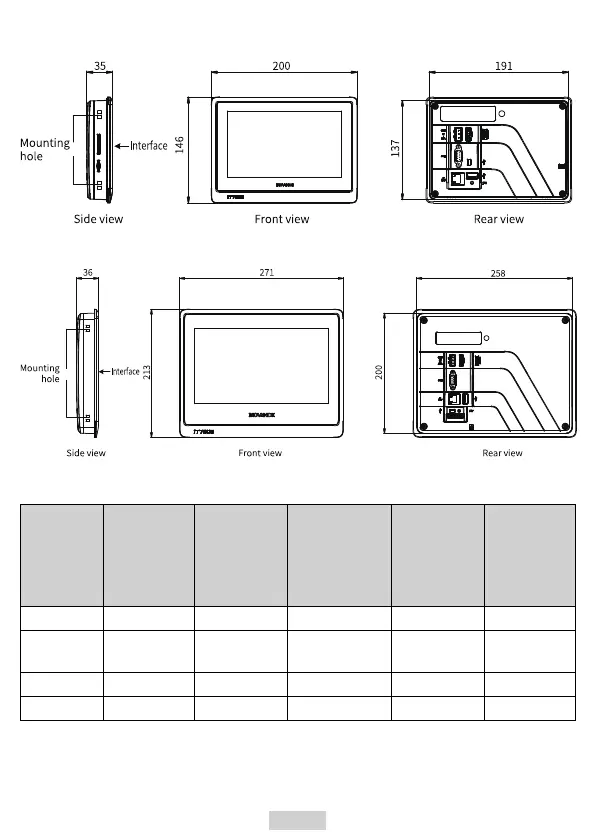

Figure 2‑1 Overall dimensions of 7‑inch HMI
Figure 2‑2 Overall dimensions of 10‑inch HMI
Model
Display
Screen Size
(in inch)
Outline
Dimensions
W x H x D
(mm)
Through‑Hole
Mounting
Dimensions
W × H
(mm)
Mounting‑
Hole
Dimensions
(W+2)
(mm)
Mounting‑
Hole
Dimensions
(H+2)
(mm)
IT7070S 7 200 x 146 x 35 191 x 137 193 139
IT7070S‑
BG1
7 200 x 146 x 35 191 x 137 193 139
IT7070T 7 200 x 146 x 35 191 x 137 193 139
IT7070E 7 200 x 146 x 35 191 x 137 193 139
