Inovance MDBUN Series Braking Unit User Manual
Page 7 of 24
Chapter 3 Mechanical and Electrical Installation
3.1 Mechanical Installation
3.1.1 Installation Environment
1. Ensure that the ambient temperature and humidity meet the requirements in the
following table. Install the braking unit in an environment free from vibration and direct
sunlight.
2. Install the braking unit and external braking resistor on the surface of incombustible
objects with sufficient room for heat dissipation.
3. Ensure that the installation environment is free from corrosive, combustible, and
explosive gas.
4. Ensure that installation environment is free from dust and metal powder.
Item
Requirement
Altitude
Lower than 1000 m (1% de-rated for each 100 m above
this height; max. 4000 m)
Ambient temperature
–10

C to +40

C
Humidity
Lower than 95% RH, without condensing
Vibration
Lower than 5.9 m/s
2
(0.6 g)
Storage temperature
–20

C to +60

C
Pollution level
Level 2
Cooling method
Air cooling
Ingress level
IP20
3.1.2 Overall Dimensions and Installation Clearance Requirements

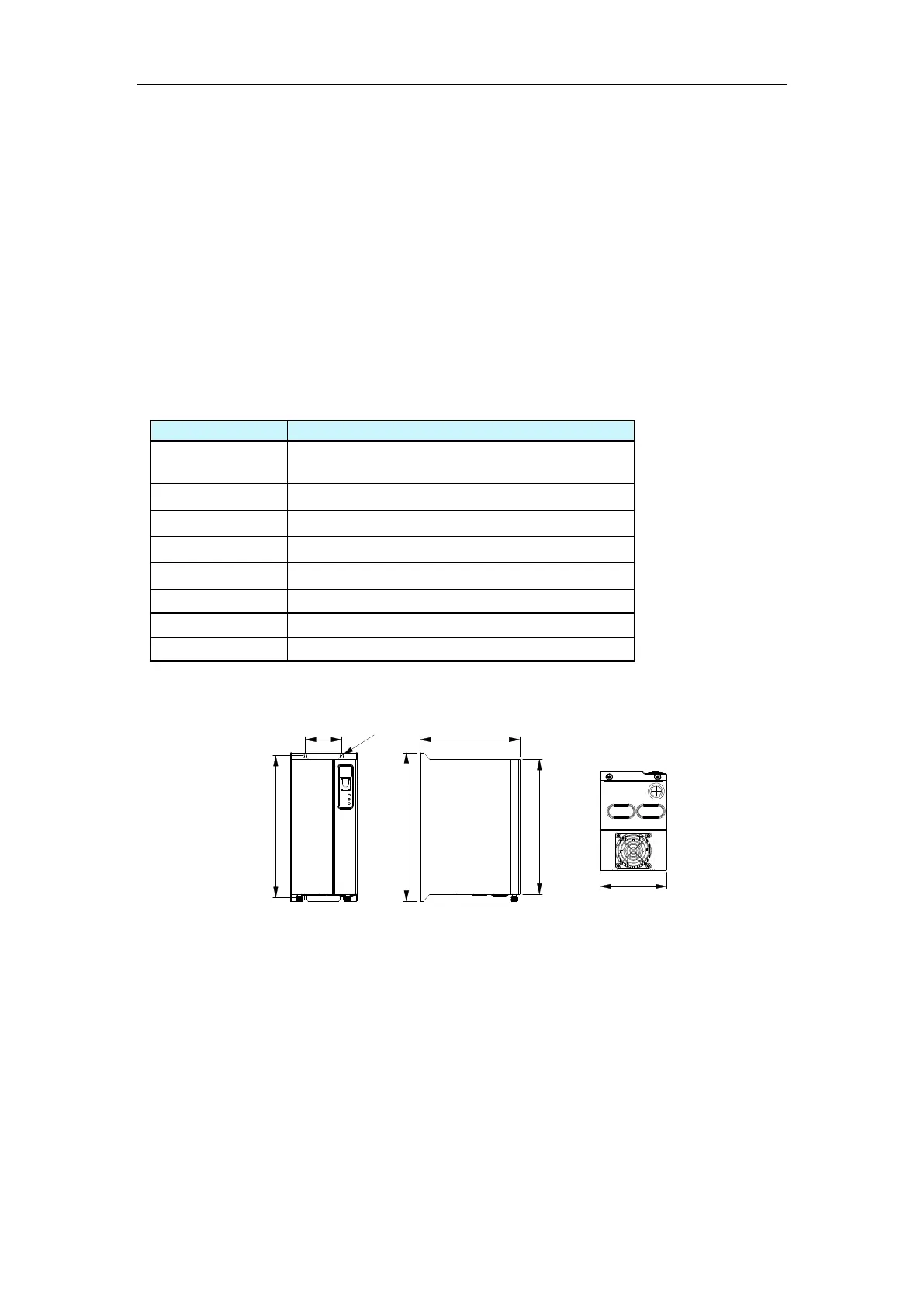

Figure 3-1 Overall dimensions of the MDBUN series braking unit
Φ
5
60 mm
236 mm
247 mm
165 mm
224 mm
110 mm
