INPRO OUF 88 - System Description and Parts

OUF 88 Wiring Diagram
 Warning: Make sure that the
ground/earth is properly connected.
5

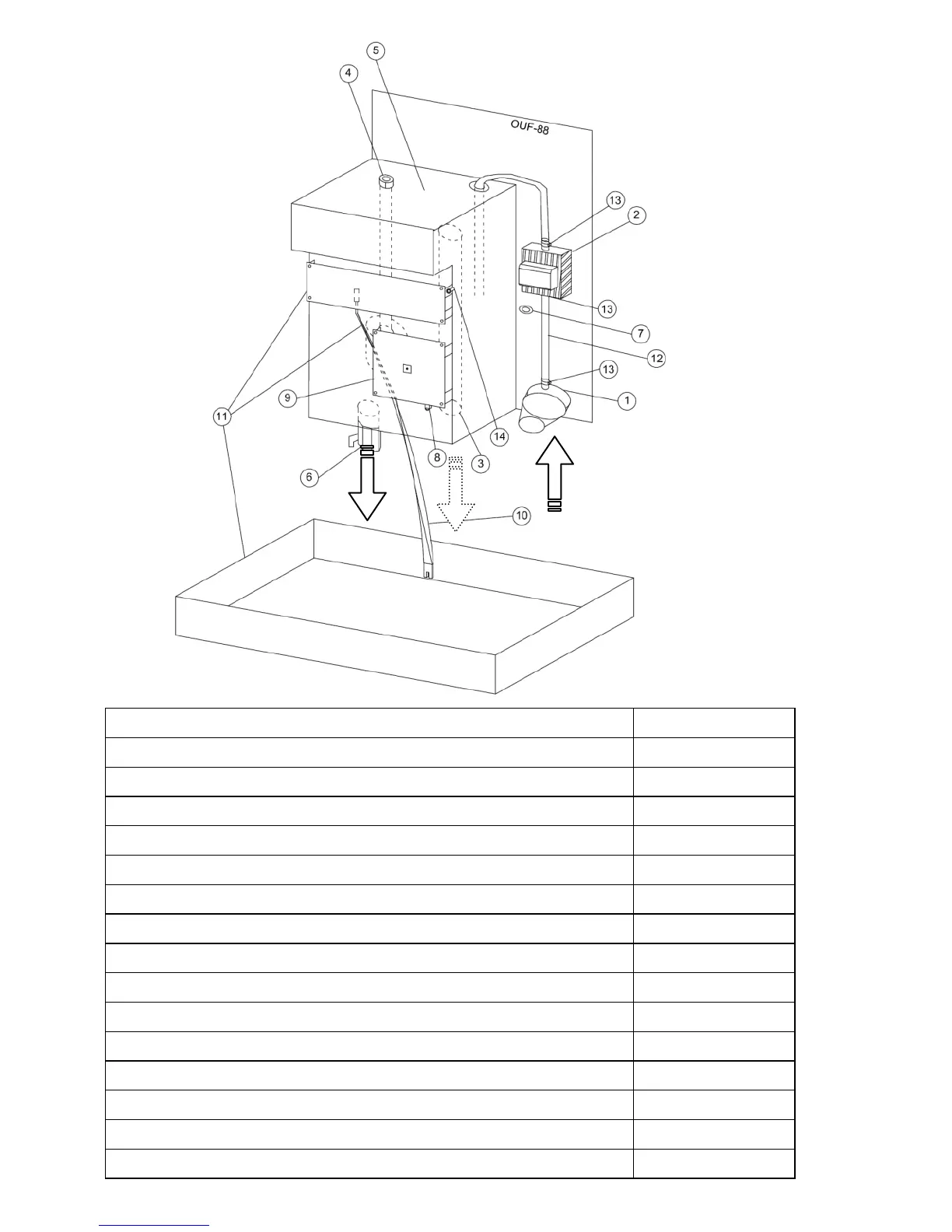

PART DESCRIPTION
Art. Nr.
1. FILTER 3/8 " BSP/ INLET CONNECTION
6800660
2. PUMP
6800651
3. OVERFLOW 1/2 " BSP CONNECTION
-
4. FLOAT SWITCH PROBE
6800656
REPLACEMENT FLOAT IN STAINLESS STEEL
6800655
5. OIL RESERVOIR (3 lts) or (MAXI 12 lts.))
-
6. OUTLET CONNECTION 3/8 " BSP
7. POWER SUPPLY ACCESS HOLE
-
8. 4 PORTS LINK
6800668
9.- OUF CONTROL CIRCUIT COMPLETE (Ver. E)
6800647
10.- INFRARRED PROBE FOR OUF 88, 350 mm long
6800221
11.- LEAK DET. PCB, PROBE & OIL TRAY 24x14x4cm FOR OUF 88
6800232A
12.- TRANSPARENT PIPE
6800652
13.- 1 SIDE COMPRESSED CLIPS 7.8/9.5
6800653
14.- EARH POST
