Using component video (better)
To connect a game console using component video:
1 Make sure that your TV’s power cord is unplugged and the game console is turned off.
2 Connect the video and audio connectors on the component video cable (not provided) to the COMPONENT IN
Y/VIDEO, P
B, and PR video jacks and L/R AUDIO jacks on the back of your TV and to the component jack(s) on
the game console.
3 Plug your TV’s power cord into a power outlet, then turn on your TV.
4 Turn on the game console, then set it to the correct output mode. For more information, see the documentation
that came with the console.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
S or T to select Component/AV, then press ENTER.
Note
Cables are often color-coded to match color-coded jacks.
Note
• Your game console may require a special component video cable. See
the documentation that came with your game console or check the
manufacturer’s website.
•The COMPONENT IN Y/VIDEO, P
B, and PR video jacks (used to connect
a component device) share the L/R AUDIO jacks with the AV IN
Y/VIDEO jack (used to connect a composite device).
• When you connect the audio using the L/R AUDIO jacks, the audio
output is analog.

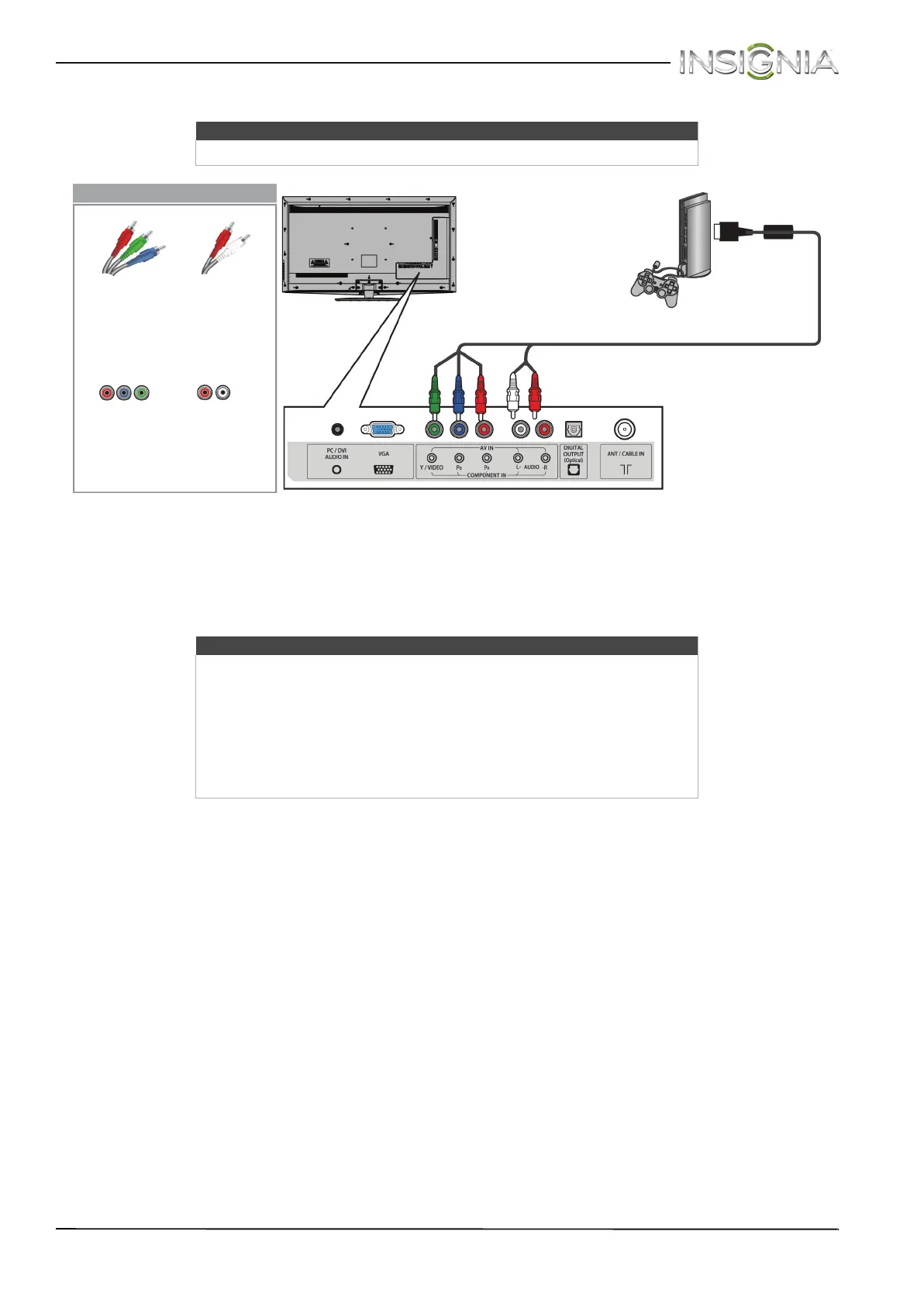

Game
console
Back of TV
Console-specific component
video and audio cable
On your TV
Component
video cable
connectors
Analog
audio cable
connectors
Component
video jacks
Analog
audio jacks
