Step 7: Inserting the drain hose through the cabinet
• Insert the drain hose into the hole in the cabinet wall. If a power cord is used, guide the end through a separate hole.
Step 8: Slide the dishwasher partially into the cabinet

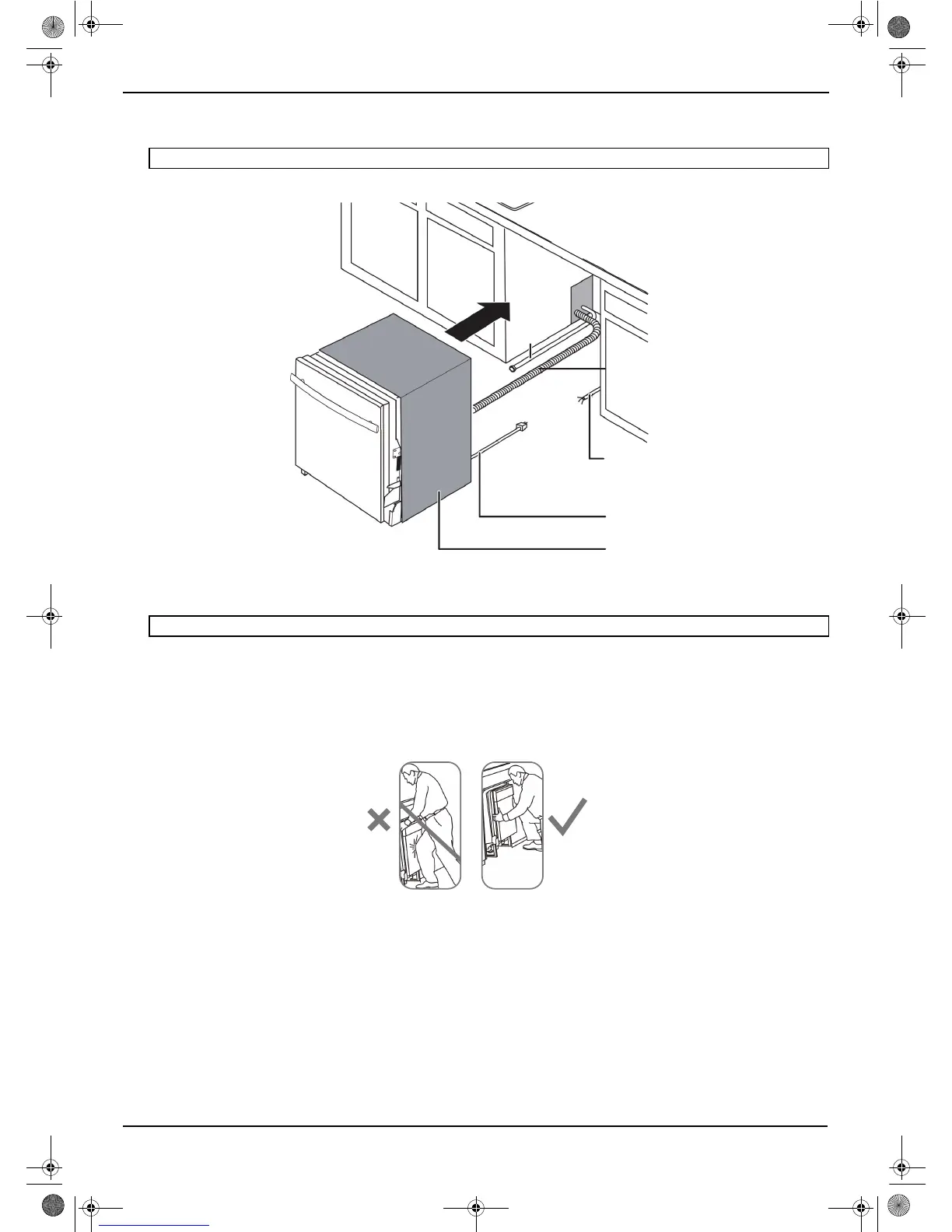

1 Position the dishwasher in front of the opening, then slide the dishwasher into the opening a few inches at a time.
2 Pull the drain hose through the opening under the sink as you proceed. Stop when the dishwasher is a few inches in
front of the adjacent cabinetry.
3 Make sure that the drain hose is not kinked under the dishwasher and that there is no interference with the water line,
wiring, or any other component.
Tip:
Position the water line and house wiring on the floor to avoid interfering with the base of the dishwasher.
Caution: Do not push against the front panel with your knees. Damage will occur.
Insulation blanket
Power cord (if used)
OR
House wiring
Water
line
Maximum drain hose
length 10 ft. (3.01 m)
Drain hose
Do not push against the
front door panel with your
knees. You will damage the
front panel.
