Installing in an alcove, closet, or wall insert/recessed
If you install your dryer in an alcove, closet, or wall insert/recessed, the front of the closet must have two
unobstructed air openings for a combined minimum total area of 72 sq.in. (465 sq.cm) with a minimum clearance
of 3 in. (7.6 cm) at the top and bottom. A slatted door with equivalent space clearance is acceptable.
Minimum clearances between your dryer and adjacent walls or other surfaces are:
• Either side: 1 in. (2.5 cm)
• Rear: 5 in. (12.7 cm)
• Top: 24 in. (61 cm)
• Front: 2 in. (5.1 cm)
Warning
• You must exhaust your dryer to the outside to reduce the risk of fire
when installed any place inside the house.
• Do NOT install another fuel-burning appliance in the same closet as
your dryer.
For information about how to select and install exhaust ducts, see
Exhausting requirements
on page 12.

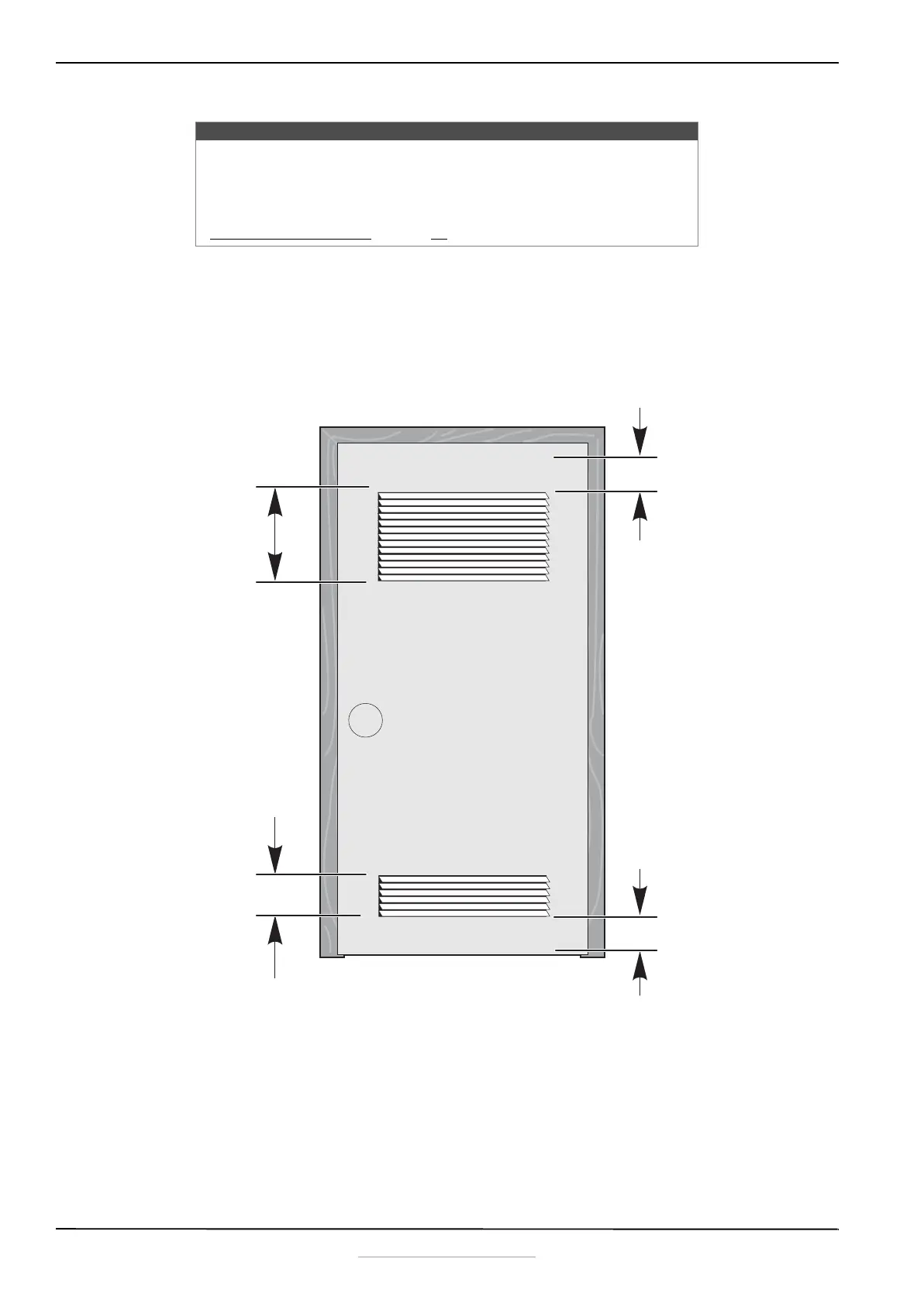

48 in.
310 cm
24 in.
155 cm
3 in.
7.6 cm
3 in.
7.6 cm
