INSTALLATION INSTRUCTIONS
2 Connect one end of the exhaust ducting to your dryer, then use duct tape to secure the ducting to your dryer.
The crimped ends of the duct sections must point away from your dryer. Use a 4 in. (10.2 cm) diameter rigid
metal duct.
3 Connect the other end of the ducting to the exhaust hood. Tape all joints, including at the dryer.
Step 4: Connect the power cord (U.S. models only)
• Determine whether your electric outlet is a three-wire or four-wire outlet. See Power outlet types
on page 15.
Three-wire outlet:
1 On your dryer, remove the center terminal block screw (A).
2 Connect the neutral wire (white or center wire) of the power cord to the center terminal screw of the terminal
block. Be sure to cross the screw through the ring of the power cord terminal and tighten the screw.
3 Connect the other wires to the outer terminal block screws. Be sure to cross the screw through the terminal ring
and tighten the screw.
4 Tighten the strain relief screws.
5 Insert the tab of the terminal block cover into your dryer’s rear panel slot, then secure the cover with a screw.
Four-wire outlet:
1 Remove the center terminal block screw.
2 Connect the ground wire (green or unwrapped) of the power cord to the external ground conductor screw.
Important
Before you connect the power cord, review the electric requirements in
Electric requirements—U.S. only
on page 15.
Before testing or operating your dryer, make sure that your dryer is
grounded. See Grounding requirements
on page 16.
Warning
If your are converting from a 4-wire electrical system to a 3-wire, you must
reconnect the ground strap to the terminal block support to ground the
dryer frame to the neutral conductor.

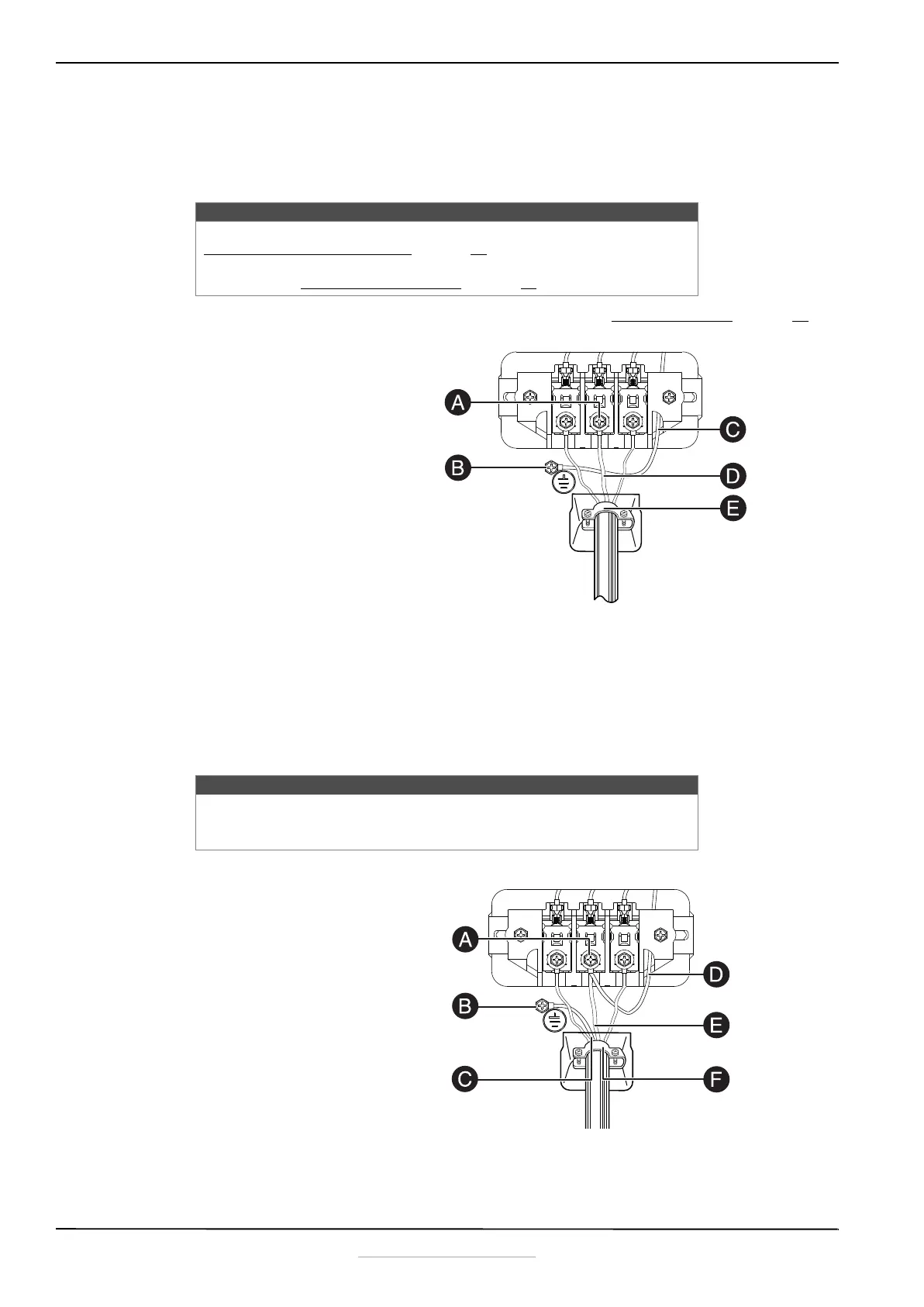

A Center terminal block screw
B External ground connector
C Neutral grounding wire (white)
D Neutral wire (white or center wire)
E 3/4" (1.9 cm) UL-listed strain relief
A Center terminal block screw
B External ground connector
C Green or bare copper wire of the power
cord
D Neutral grounding wire (White)
E Neutral wire (white or center wire)
F 3/4" (1.9 cm) UL-listed strain relief
