STEP 12:
You need:
When you insert a cam lock, position the open end of the lock toward the cam screw, then insert the cam screw into the
cam lock opening.

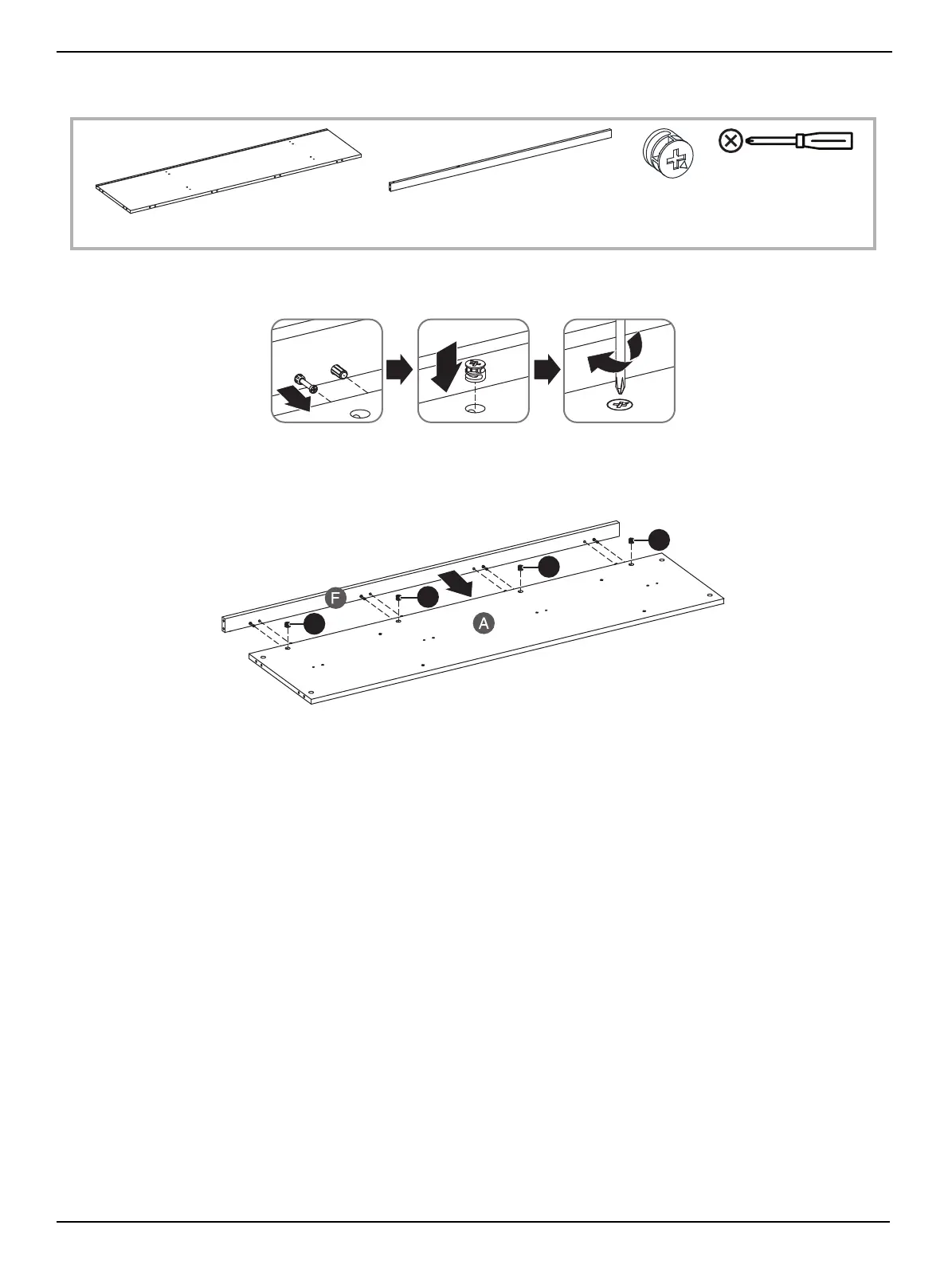

1 Insert four cam locks (DD) into the holes on the base (A).
2 Insert the cam screws and dowels on the front edge (F) into the cam locks and dowel holes on the base (A), then
tighten the cam locks with a Phillips screwdriver.
DD Cam lock (4)
A Base (1)
F Front edge (1)
Phillips screwdriver
DD
DD
DD
DD
