STEP 18:
You need:
When you insert a cam lock, position the open end of the lock toward the cam screw, then insert the cam screw into the
cam lock opening.

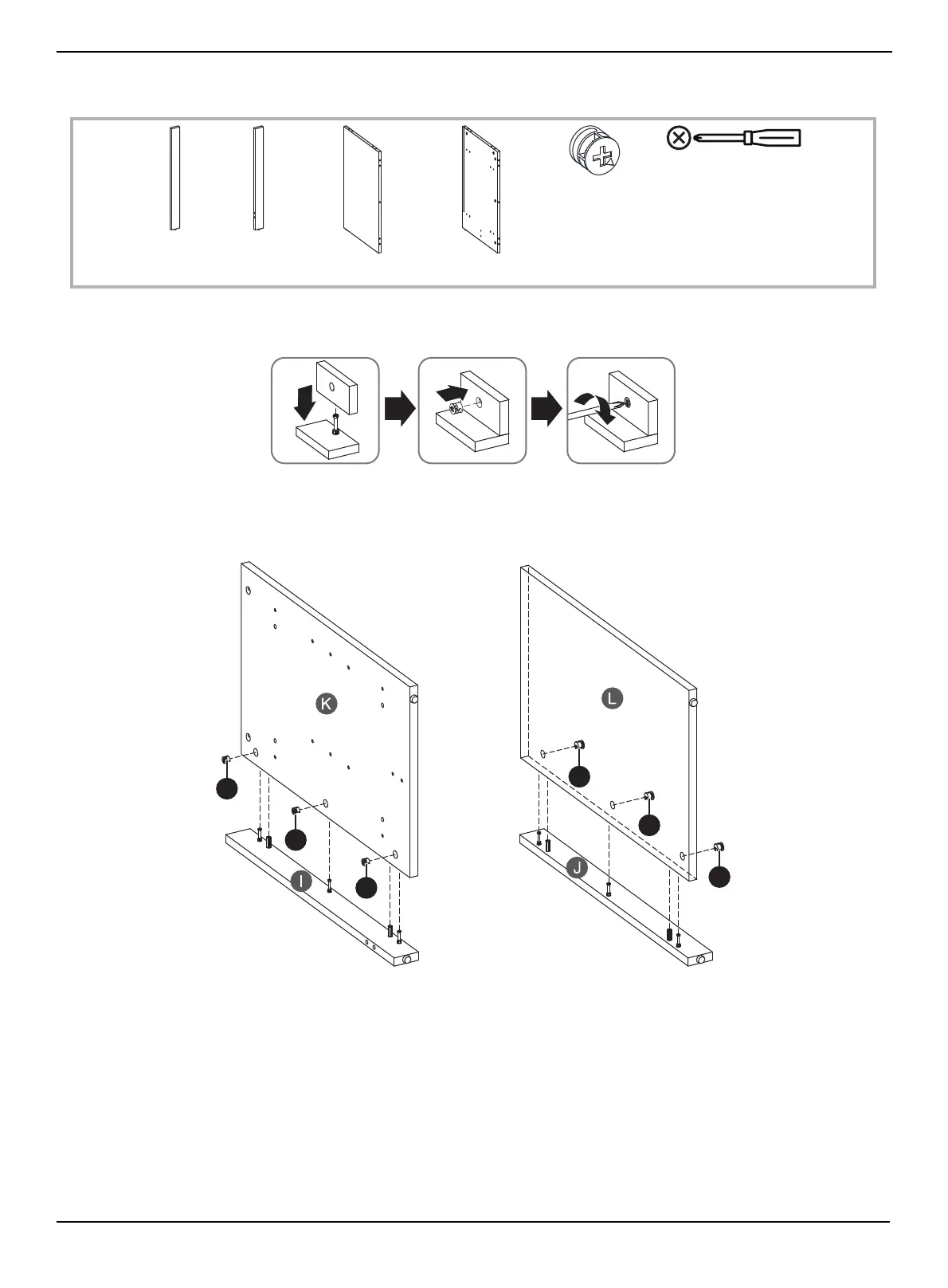

1 Insert three cam locks (DD) into the left side (K) and three cam locks into the right side (L).
2 Insert the cam screws on the left support (I) and right support (J) into the cam locks on the left and right sides, then
tighten the screws with a Phillips screwdriver.
DD Cam lock (6)
K left side (1) L Right side (1)
I Left side
support (1)
J Right side
support (1)
Phillips screwdriver
DD
DD
DD
DD
DD
DD
To Next Page
