STEP 3 - Option 2: Attaching the mounting hardware to TVs
with irregular or obstructed backs

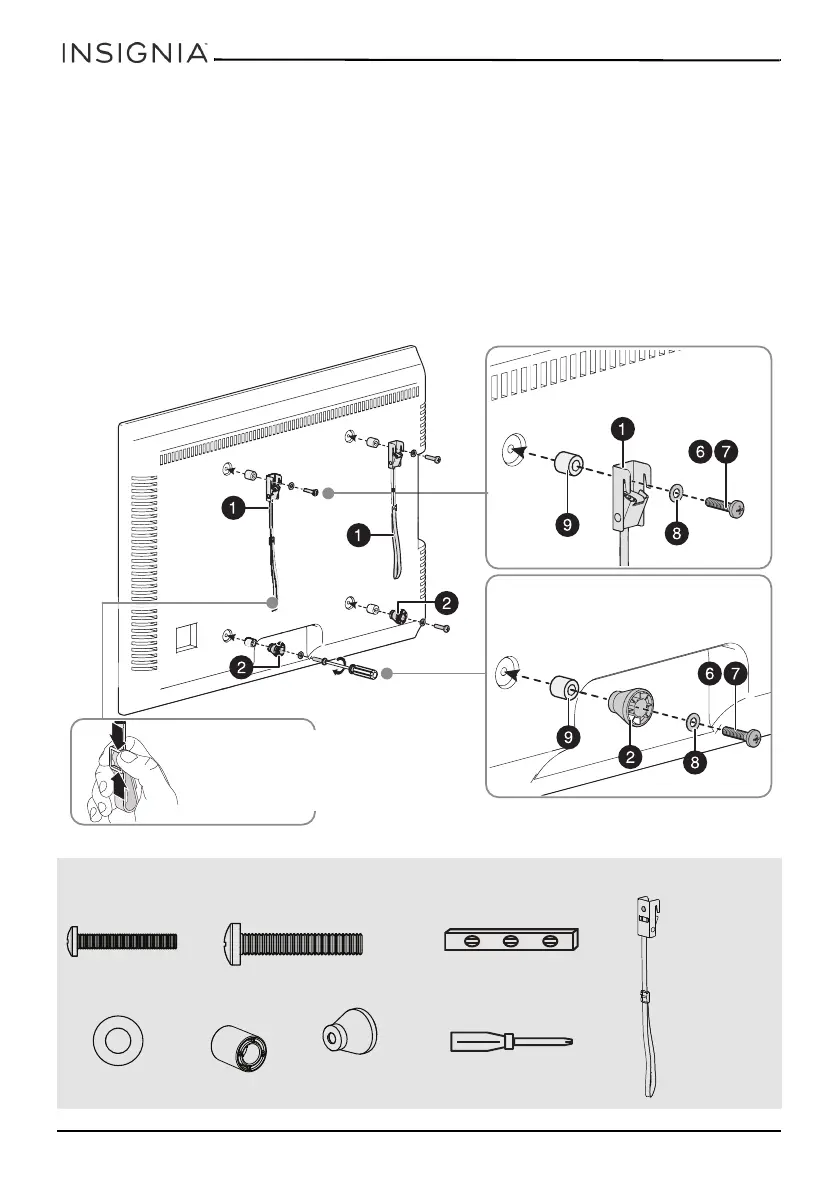

1 Place spacers (9) over the screw holes on the back of the TV.
2 Align the left and right TV brackets (1) with the upper screw holes on the back of the TV. Make sure that
the brackets are level.
3 Place washers (8) over the holes in the TV brackets. Insert screws (6 or 7) through the washers, TV
brackets, and spacers.
4 Install TV standoffs (2) in the lower screw holes on the back of the TV using washers (8), screws (6 or 7),
and spacers (9).
5 Tighten the screws until they are snug against the TV brackets. Do not over tighten.
You’ll ne e d
Important: After attaching the
TV brackets, adjust the straps (by
sliding the buckle up or down)
so they are level with the bottom
of the TV.
6 (4)
9 (4)
1 TV
brackets (2)
8 (4)
7 (4)
or
2 (2)
Phillips screwdriver
Level
