Assembling and installing the monitor
mount
(Applies to single or double monitor versions - single monitor version
shown)

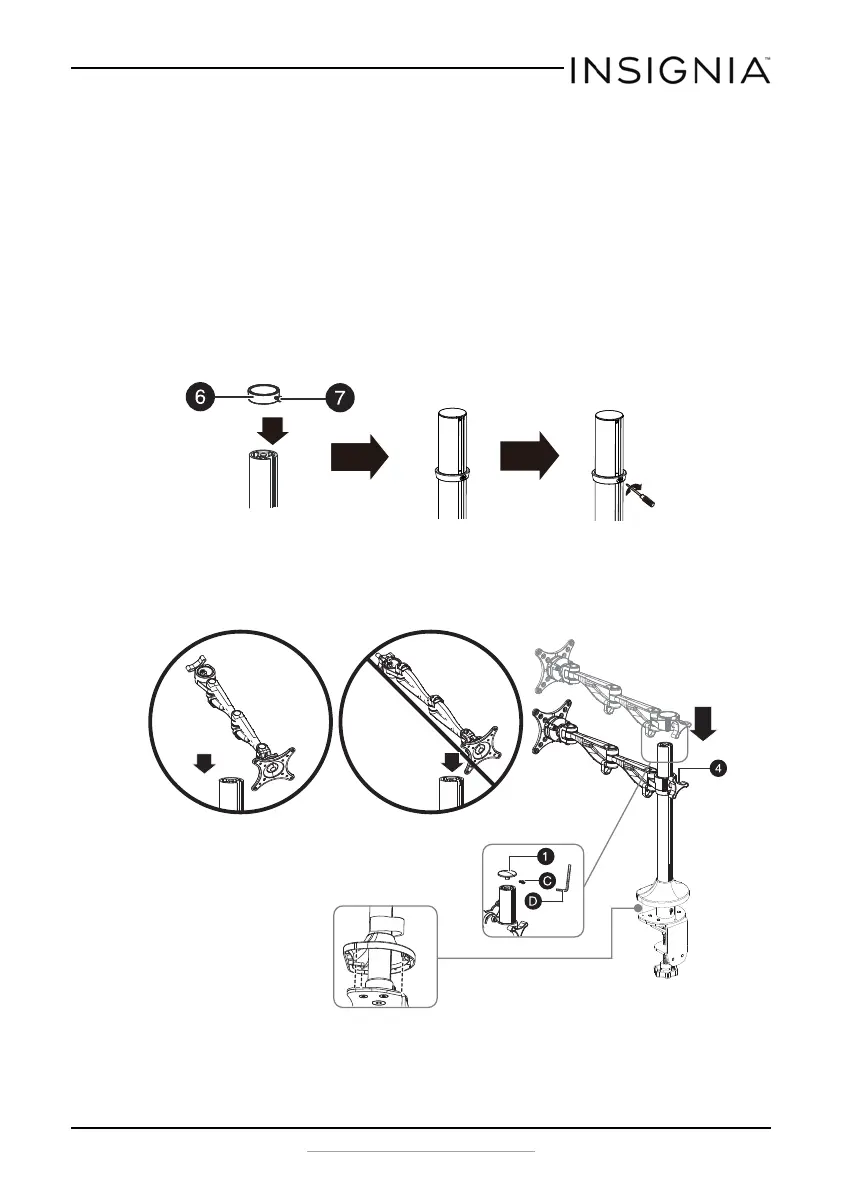

Step 1 - Assembling the support arm and support tube
1 Install the cable support clip (9) by sliding it on the support tube (8).
2 Thread the M5 x10 mm sunk bolt (7) onto the arm support ring (6),
then place on the support tube (8) at the level you want the support
arm (3) and tighten the M5 x 10 mm sunk bolt (7) to hold it in place.
3 Slide the monitor plate and support arm assembly (3) onto the
support tube (8), making sure that the curved portions of the arm are
pointed down. Secure it by tightening the single-arm knob (4).
4 Install the tube cover (1) on top of the support tube (8) using the
M4 x 10 mm bolt (C), then tighten it with the 3 x 3 mm Allen
wrench (D).
Flat side up
Curved
side down
