Insignia NS-RGFCES2 User Manual

www.insigniaproducts.com
18
3 For the conduit installation, insert the conduit strain relief in the 1 1/8 in. (2.8 cm) conduit hole, then install the conduit
through the body of the strain relief and fasten the strain relief with its ring.
If you are connecting a 4-wire power cord, go to Connect a 4-wire power cord
on page 18.
If you are connecting a 3-wire power cord, go to Connect a 3-wire power cord
on page 19.

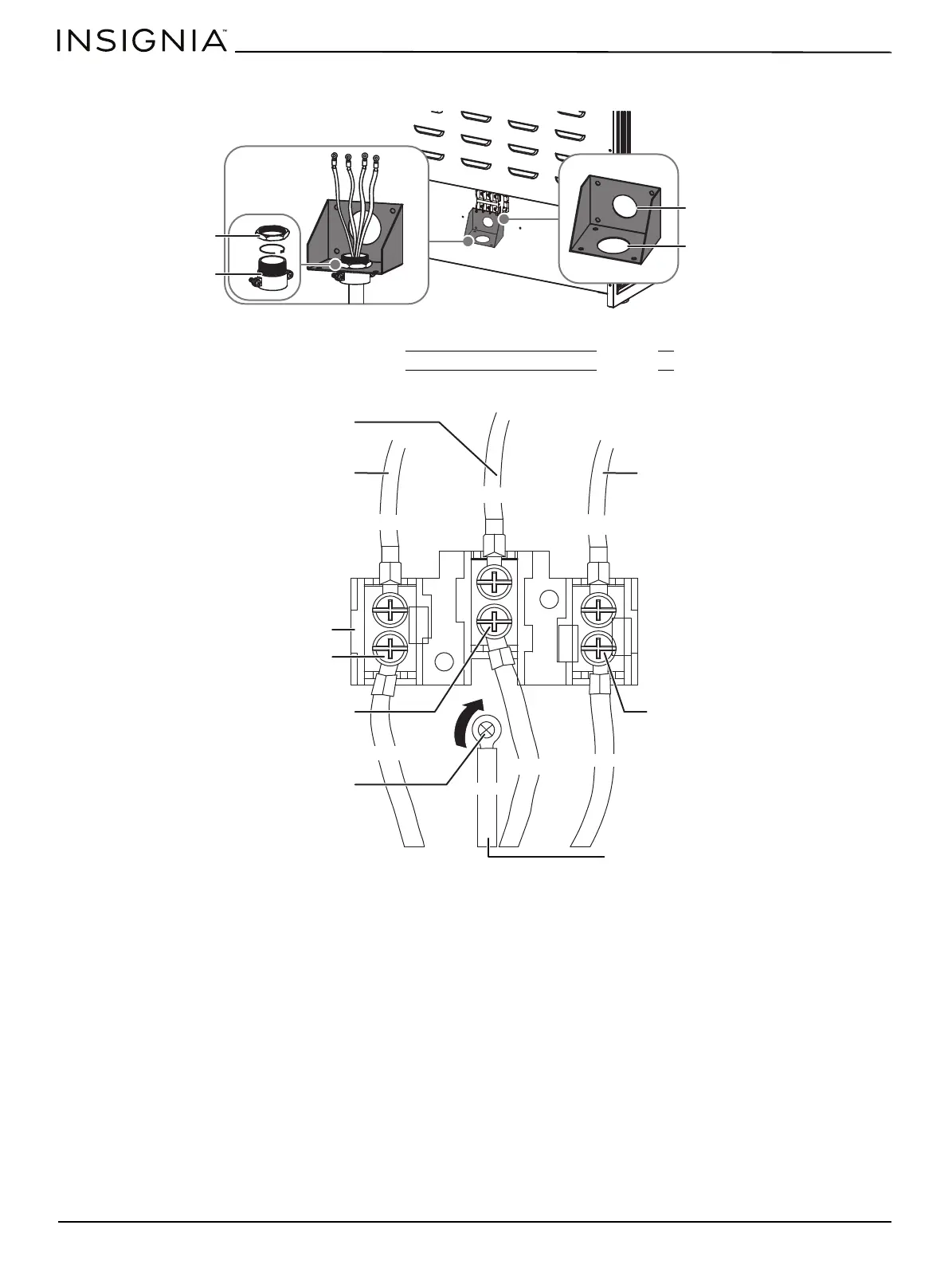

Connect a 4-wire power cord
1 Disconnect power to the circuit breaker or fuse box before making the electrical connection.
2 Remove the three lower terminal screws from the terminal block and remove the ground screw.
3 Remove and discard the ground strap located between the middle terminal screw and the ground screw. Do not
discard any screws.
4 Insert the ground screw into the power cord ground wire terminal ring and into the frame of the range.
5 Insert the three terminal screws (removed earlier) through each power cord terminal ring and into the lower terminals
of the terminal block. Be certain that the center wire (white/neutral) is connected to the center position of the terminal
block.
6 Reinstall and tighten screws securely to the terminal block.
Conduit hole
Ring
Body
Power cord hole
Neutral
Live 2
Live 1
Terminal block
Neutral
Live 2
Live 1
Red
Black
White
Red
Black
White
Green
Remove
ground
strap
Ground wire
