Insignia NS-RGFESS2 User Manual

www.insigniaproducts.com
19
4.8 Cu. Ft. Electric Convection Range with Steam Cleaning

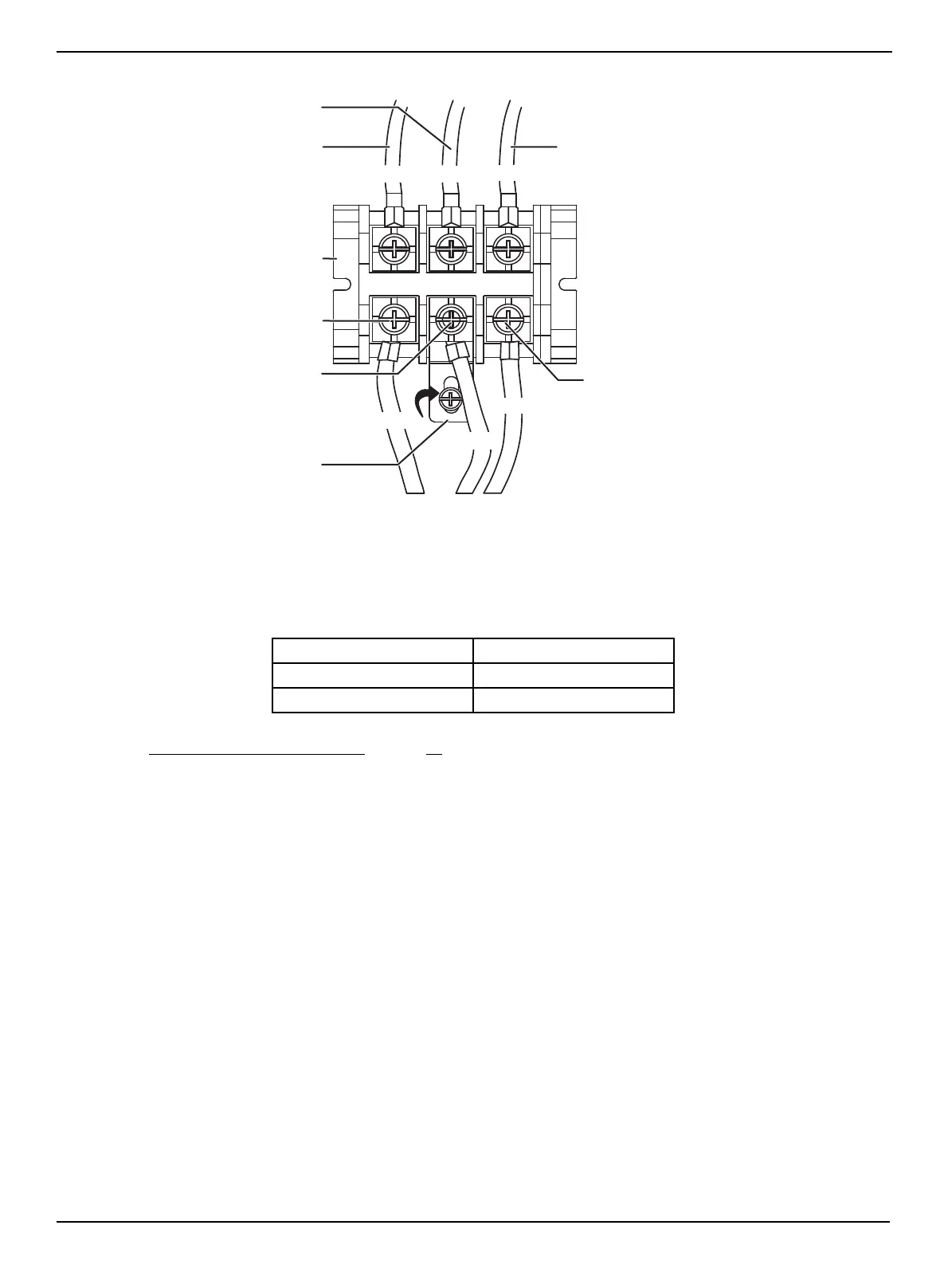

Connect a 3-wire power cord
1 Remove the three lower terminal screws from the terminal block.
2 Insert the three terminal screws through each power cord terminal ring and into the lower terminals of the terminal
block. Be certain that the center wire (white/neutral) is connected to the center lower position of the terminal block.
3 Tighten screws securely to the terminal block. DO NOT remove the ground strap connection.
4 CAUTION: Check the voltage after connecting the power cord.
5 Go to Replace the terminal block cover
on page 20.
Live 1 - Neutral 120 V
Live 2 - Neutral 120 V
Live 1 - Live 2 208 V / 240 V
L1
L2
N
Neutral
Live 2Live 1
Terminal block
Ground strap
Live 2
Live 1
Red
Black
White
Neutral
Red
Black
White
