FIXED-POSITION WALL MOUNT FOR TVs 40-70 in.
6
www.insigniaproducts.com

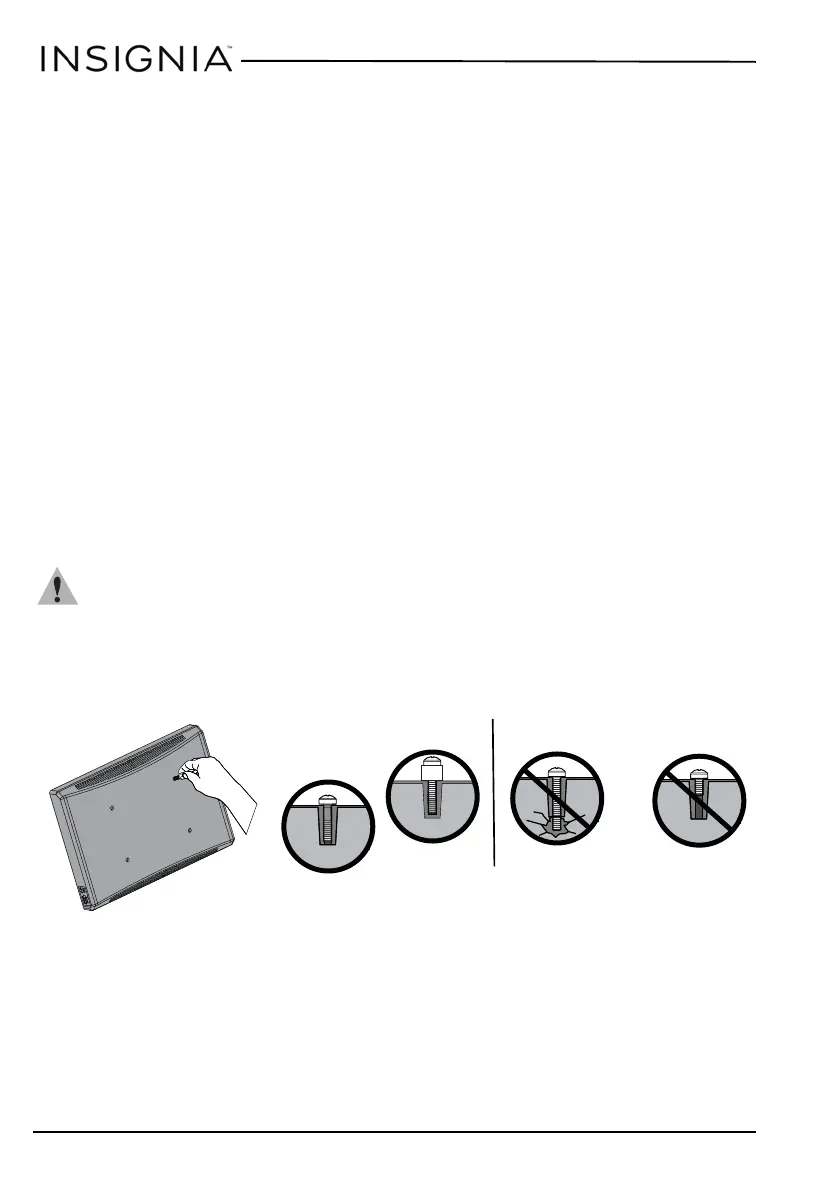

STEP 2 - Select screws, washers, and spacers
1
Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs come with
mounting hardware included. (If there are screws that came with the TV, they are almost always in the
holes on the back of the TV.) If you don't know the correct length of the mounting screws your TV
requires, test various sizes by hand threading the screws.
Select one of the following types of screws:
For a TV with a flat back:
M5 X 12mm screws (D)
M6 X 12mm screws (I)
M6 X 20mm screws (J)
M8 X 16mm screws (L)
M8 X 20mm screws (M)
For a TV with an irregular/obstructed back:
M5 X 35mm screws (E)
M6 X 35mm screws (K)
M8 X 35mm screws (N)
Select either an M5 washer (F) or an M6/M8 washer (G)
For an irregular or obstructed TV back, also use Spacer (H)
CAUTION: To avoid potential personal injuries and property damage, make sure that there are
adequate threads to secure the brackets to your TV. If you encounter resistance, stop immediately and
contact customer service. Use the shortest screw and spacer combination to accommodate your TV. Using
hardware that is too long may damage your TV. However, using a screw that is too short may cause your TV to
fall from the mount.
2
Remove the screws.
3
For a flat back TV, go to “STEP 3 - Option 1: Attaching the mounting hardware to TVs with a flat back“ on
page 7.
-OR-
For an irregular or obstructed back, go to “STEP 3 - Option 2: Attaching the mounting hardware to TVs
with irregular or obstructed backs” on page 8.
Screw fits
correctly
Screw is too
long
Screw is too
short
NS-TVMFP23-NS_TVMFP23-C_14-0745_MAN_V2_ENG.fm Page 6 Sunday, August 10, 2014 10:17 PM
