Insignia NS-TVMFP23 User Manual

FIXED-POSITION WALL MOUNT FOR TVs 40-70 in.
8
www.insigniaproducts.com

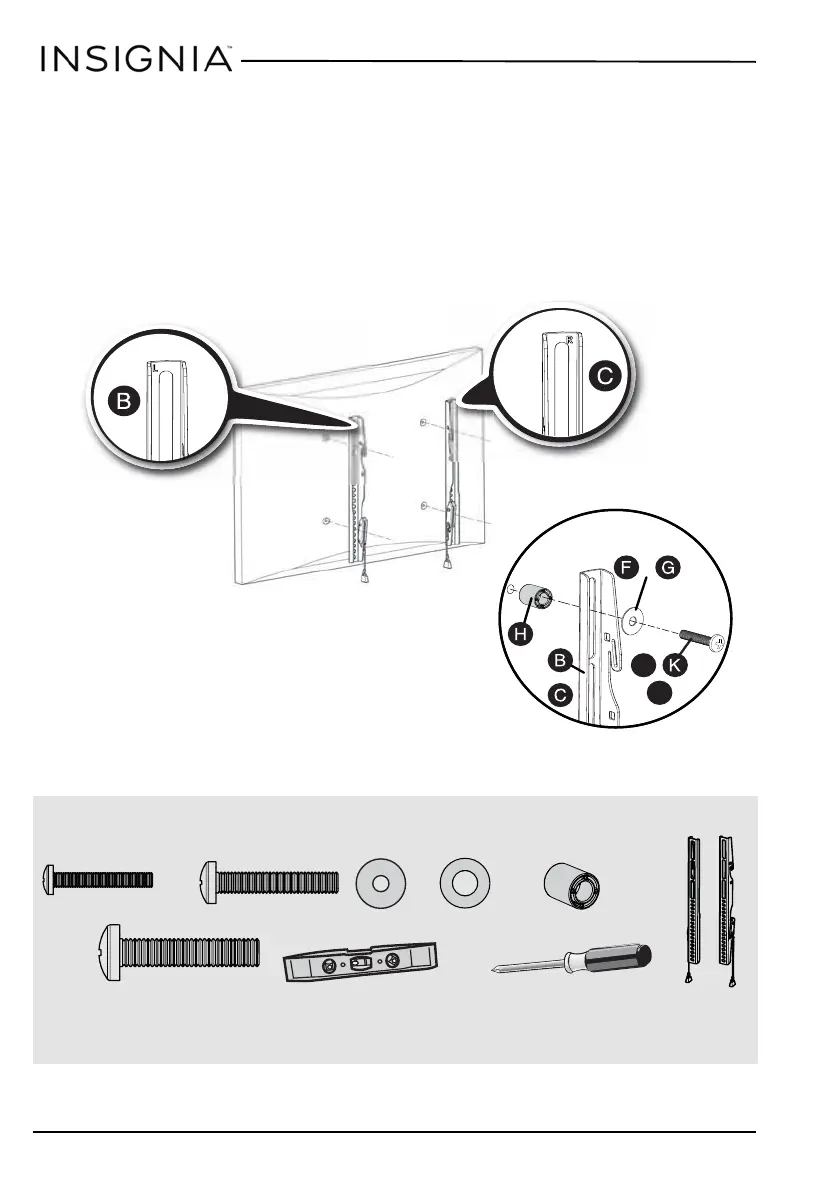

STEP 3 - Option 2: Attaching the mounting hardware to TVs
with irregular or obstructed backs
1 Align the left and right TV brackets (B and C) with the screw holes on the back of the TV. Make sure that
the brackets are level.
2 Place spacers (H) behind the TV brackets. Place washers (F or G) over the holes in the TV brackets. Insert
screws (E, K, or N) through the washers, TV brackets, and spacers.
3 Tighten the screws until they are snug against the TV brackets. Do not over tighten.
You’ll need
or
or
or
N
E
F (4)
E (4)
Phillips screwdriver
Screws
Washers
Spacers
H (4)
B and C TV
brackets
G (4)
K (4)
or
or
or
N (4)
Level
NS-TVMFP23-NS_TVMFP23-C_14-0745_MAN_V2_ENG.fm Page 8 Sunday, August 10, 2014 10:17 PM

Insignia NS-TVMFP23 Specifications

General

Brand	Insignia
Model	NS-TVMFP23
Category	TV Mount
Language	English
