InSinkErator Evolution Excel - New Disposer Installation: Mounting; Flange Installation and Sealing; Securing the Sink Flange

6
19
1
2
20
21
M
N
L
Push wires into disposer
(do not displace cardboard
shield) and replace electri-
cal cover plate.
Place tube (M or N) into Anti-
Vibration Tailpipe Mount.
Use provided tubes for best
results. Secure with hose
clamp (L).

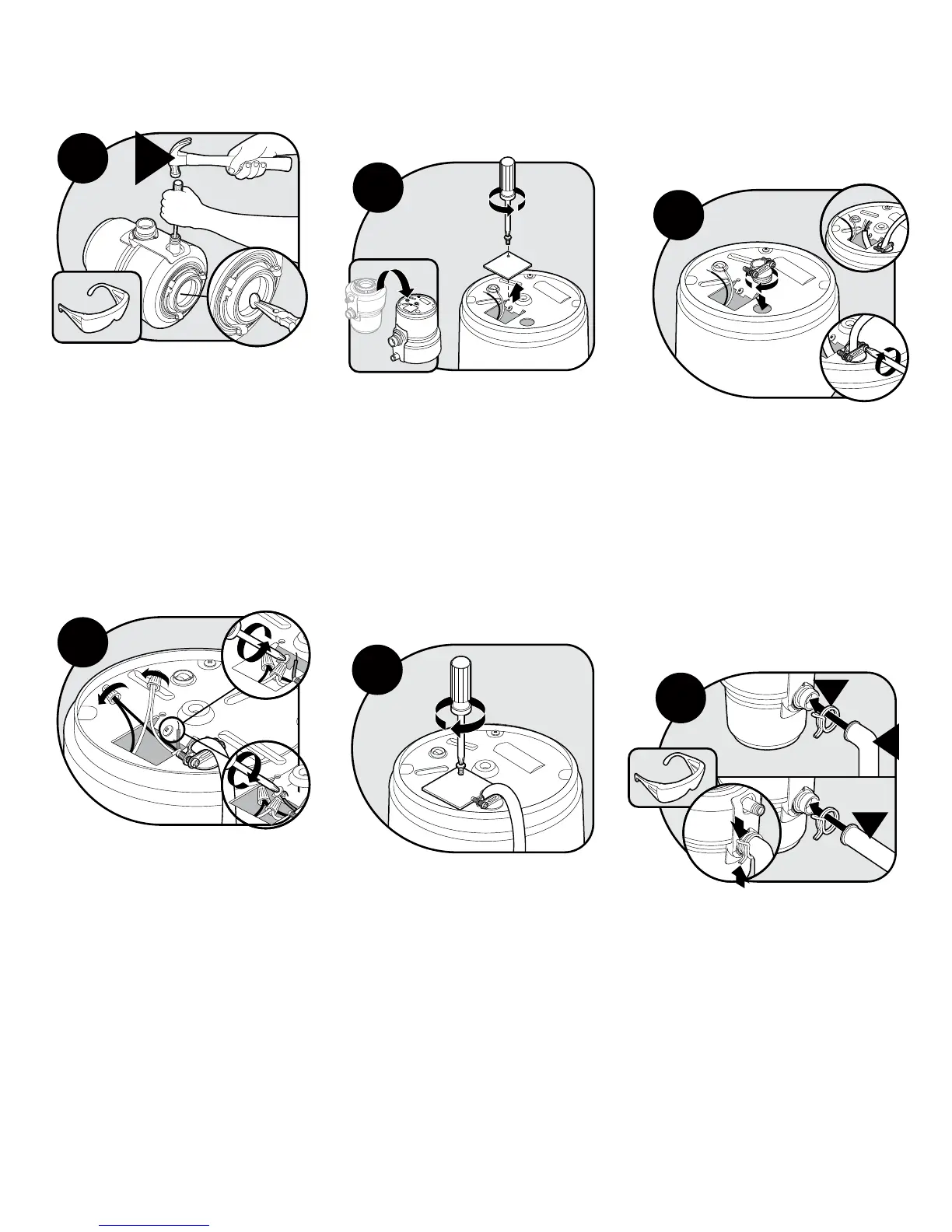

Installation of new disposer (continued):
*WARNING:
SHOCK HAZARD
Connect white to white
and black to black or red
with wire nuts (not includ-
ed); ground wire to green
grounding screw. Unit must
be grounded for safe and
proper installation.
!
*
16
*CAUTION: DISHWASHER
CONNECTION ONLY Knock out
drain plug and remove plug from
inside of disposer.
18
17
*WARNING: SHOCK HAZARD.
Turn disposer over and remove
electrical cover plate. Pull
out wires. DO NOT REMOVE
CARDBOARD SHIELD.
*WARNING: SHOCK HAZARD.
With electrical supply turned
off, insert cable connector (not
included) and run electrical cable
through access hole on bottom of
disposer. Tighten cable connector.
*CAUTION:
USE ONLY INSINKERATOR
SUPPLIED HOSE CLAMP.
NON-APPROVED CLAMPS
WILL VOID WARRANTY AS
THEY WILL DAMAGE THE
ANTI-VIBRATION TAILPIPE
MOUNT
